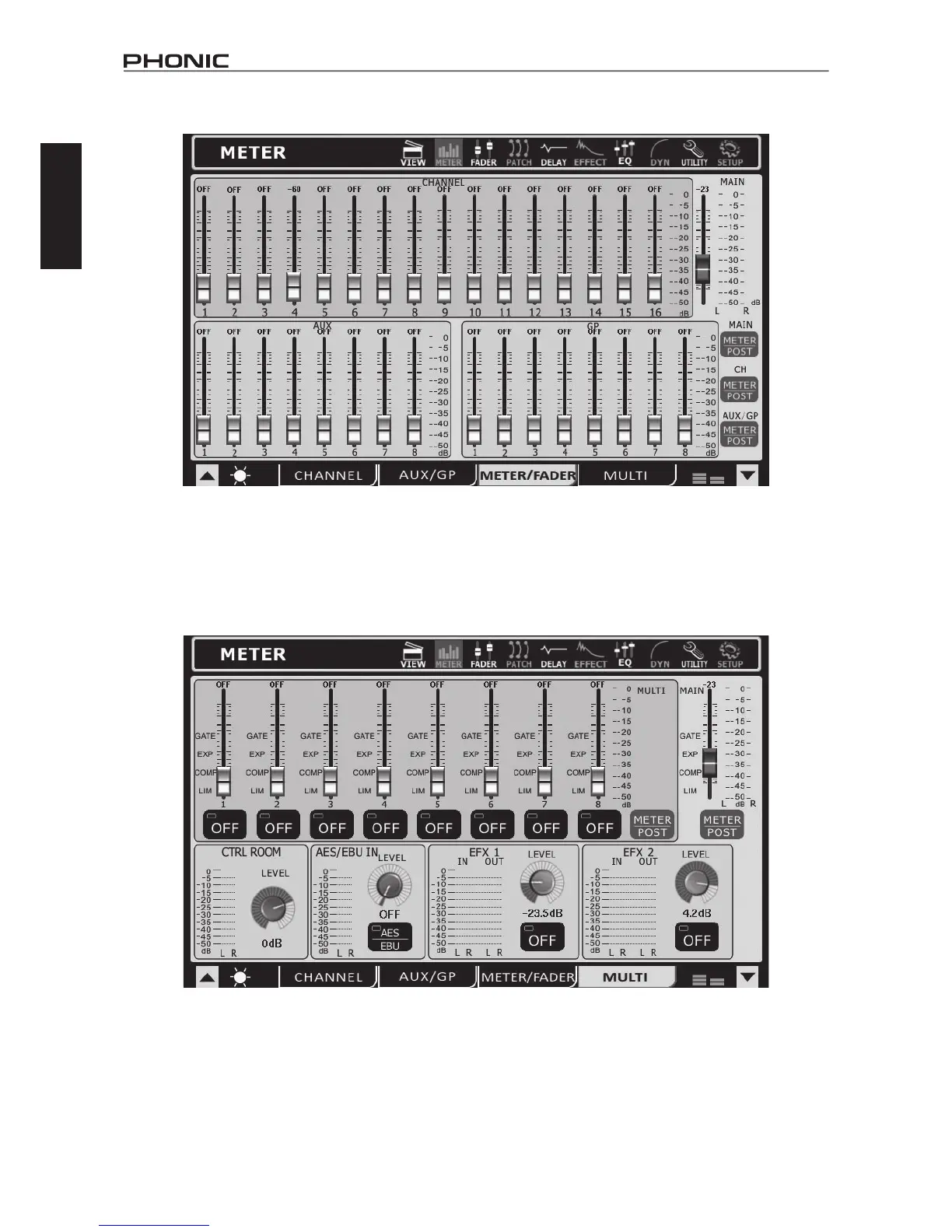

2.3 Meter / Fader Tab

TheMetersectionintheMeter/FaderTaballowsuserstoeasilyadjustlevelsofeachinputchannelandAUXandGroupmix,aswellas

themainmix.Founddirectlynexttoeachofthesevirtualfadersisalevelmeter.Levelmeterscanbechangedbetweenpreandpostby

pushingtheappropriatepre/postbuttonsontheright-handsideofthedisplay.Theinputchannels’meterscanbeadjustedtodisplaythe

inputsignal(post-gain,pre-on/off),pre-fader(post-gain,post-on/off)andpost-fader(post-fader,-EQ,-dynamics,-delay).Ifanytwoinput

channelsarepaired(achievedthroughtheSetupmenu)thesewillbeindicatedassuchbyasmallchainimagelocatedbetweenthetwo

channels’controls/meters.

WhentwochannelsarepairedthisisindicatedinthemenuFADERbyaredtriangleintheupperrightcornerofbothchannels,andthe“slave”

channel is grey.

2.4 Multi Tab

TheMultitabofthemeterfunctiondisplaystheinputandoutputsignalsoftheMultisignals,EFXsignals,theAES/EBUsignals,andControl

Room output. The menu also provides a number of different controls to users. All Multi outputs can be turned on and off and have their

levelsadjusted.Themainstereomixcanhaveitsleveladjusted.TheEFXsignalscanbeturnedonandoffandhavetheiroutputlevels

adjusted.TheControlRoomtrimcanbeadjusted.ThetrimcanbeadjustedontheAES/EBUinput,whichcanalsobeturnedonandoff

withinthismenu.Ifnodigitaldeviceisconnectedtotheinput,userswillnotbeabletoactivatetheAES/EBUinputs.

Youcanalsoviewthestatusofdynamicprocessorsassignedtothecorrespondingmultioutputsbyviewingthiswindow.Eachtheexpander,

gate,compressorandlimiterhavetheirownindicatorforeachmultioutput.Aredlightindicatesthatthecorrespondingdynamicprocessis

off;abluelightindicatesthatthecorrespondingdynamicprocessisturnedon,and;ayellowlightindicatesthatthecorrespondingdynamic

processiscurrentlyactive(ie.thesetthresholdhasbeenpassed).
