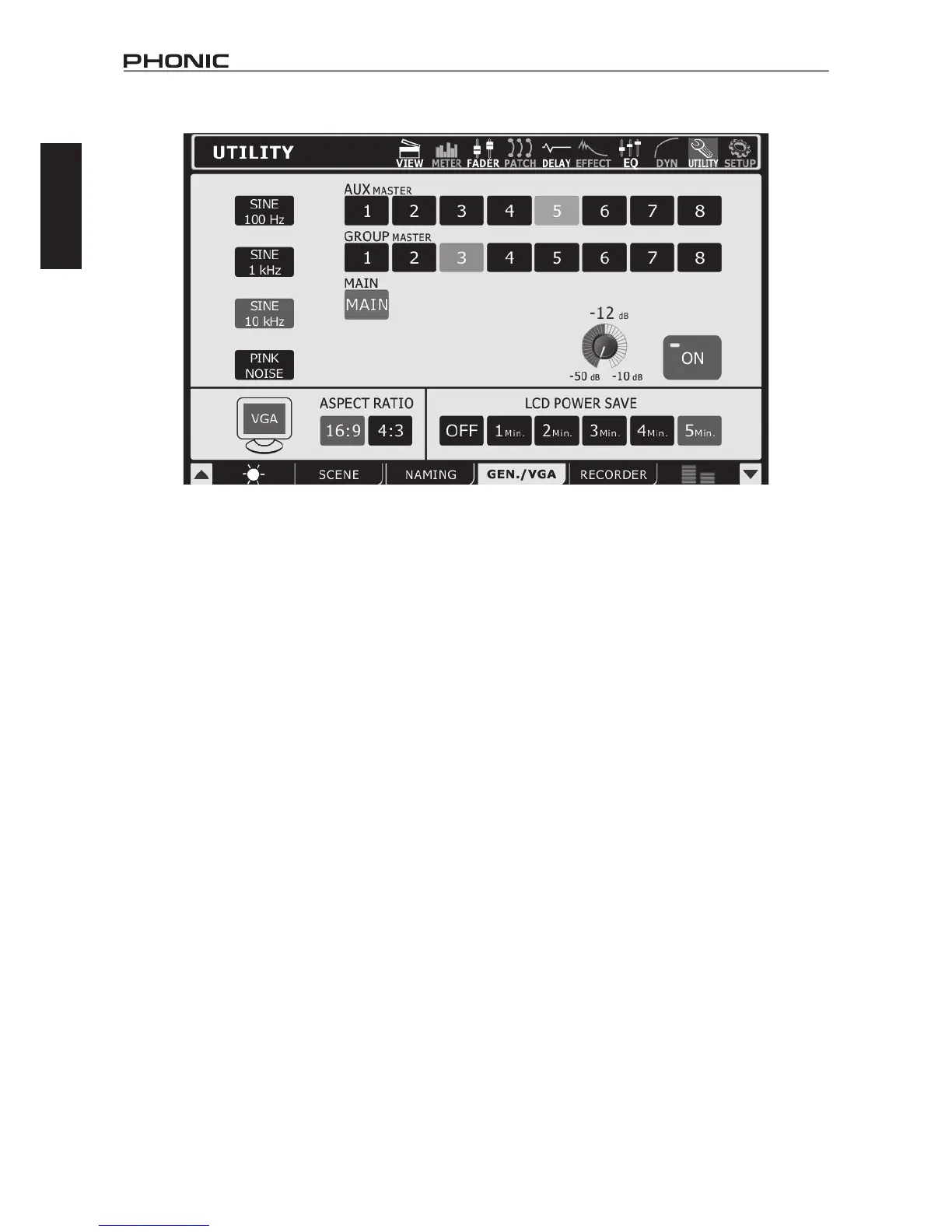

9.3 Generator / VGA

ThroughtheSignalGenerator,usersareabletosendaSinewave(100Hz,1kHzor10kHz)orapinknoisesignaltoanyoftheAUXorgroup

mixes,aswellasthemainmixifneedbe.TheOn/Offbuttonallowsuserstoturnthesignalgeneratoronandoff,andtheaccompanying

levelcontrol(virtualrotarycontrol)willallowadjustmentofthesignallevel.

Atthebottomofthisscreen,userscanndtwoaspectratiooptionsforthemonitorconnectedtotheIS16’sVGAoutput.Userscanselect

eitherfullscreen(4:3)orwidescreen(16:9)modedependingontheaspectratiooftheirmonitor.

TotherightoftheASPECTRATIOselectiontheusercanndoptionsforthetouchscreendimming.Userscanselectthetimethatitwill

takeforthescreentogodim,oropttodisablethefunctionalltogether.

Phonic IS16v1 User Manual
