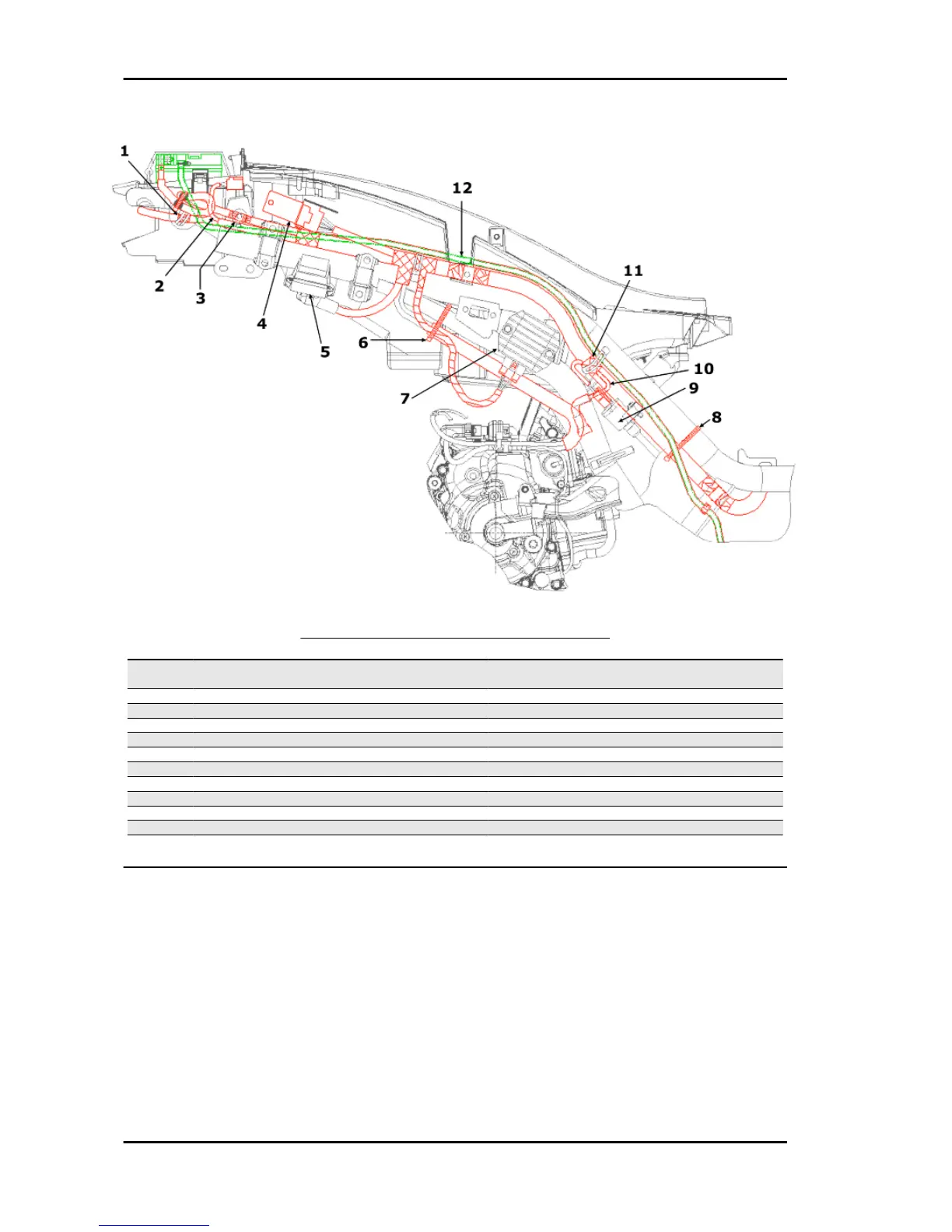

INSTALLING THE ELECTRICAL CIRCUIT
Specification
Desc./Quantity
1 Installing the electrical circuit Secure the metallic clamp on the red binding so that the
cable harness remains underneath the frame tube.
2 Installing the electrical circuit To 12V - 180W power outlet underneath the seat
3 installing the electrical circuit The clamp must be placed on the aft hole
4 Installing the electrical circuit Starter relay, 12V - 80A
5 Installing the electrical circuit Rear fuse-holder
6 Installing the electrical circuit Clamp
7 Installing the electrical circuit Rear fuse-holder
8 Installing the electrical circuit Clamp
9 Installing the electrical circuit HT coil
10 Installing the electrical circuit To thermistor
11 Installing the electrical circuit Insert in the appropriate hole
12 Installing the electrical circuit Battery breathing tube
Electrical system B 125-250
ELE SYS - 76
