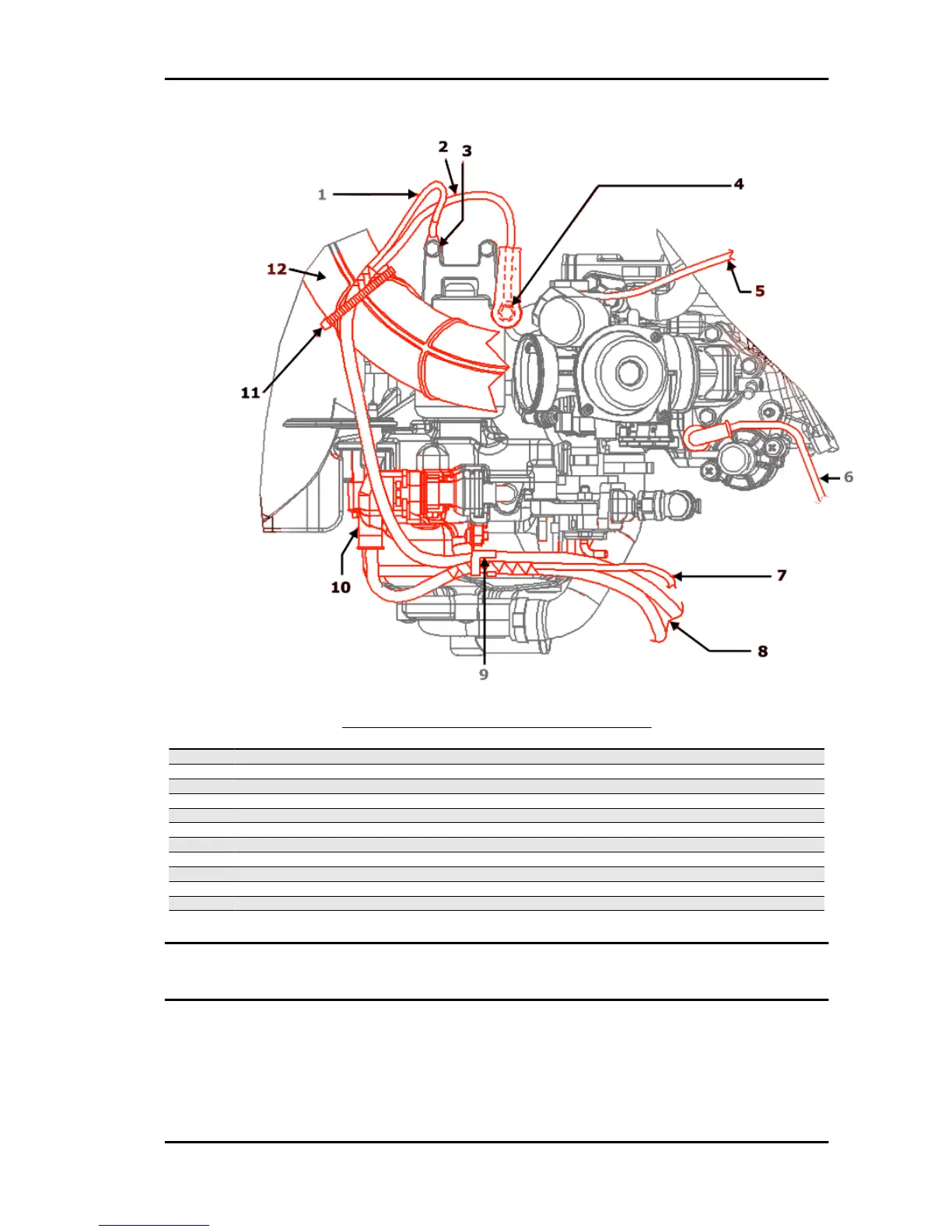

INSTALLING THE ELECTRICAL CIRCUIT
Specification
Desc./Quantity
1 Installing the electrical circuit Starter motor earth cable
2 Installing the electrical circuit Starter motor positive (+) cable
3 Installing the electrical circuit Screw - tighten up to 10 ÷ 13 Nm
4 Installing the electrical circuit Screw - tighten up to 6 ÷ 8 Nm
5 Installing the electrical circuit To automatic choke connection
6 Installing the electrical circuit Thermistor
7 Installing the electrical circuit To oil sensor
8 Installing the electrical circuit To cable harness
9 Installing the electrical circuit Metallic clamp
10 Installing the electrical circuit Flywheel connection
11 Installing the electrical circuit Clamp
12 Installing the electrical circuit Air filter/carburettor bellow
Conceptual diagrams
B 125-250 Electrical system
