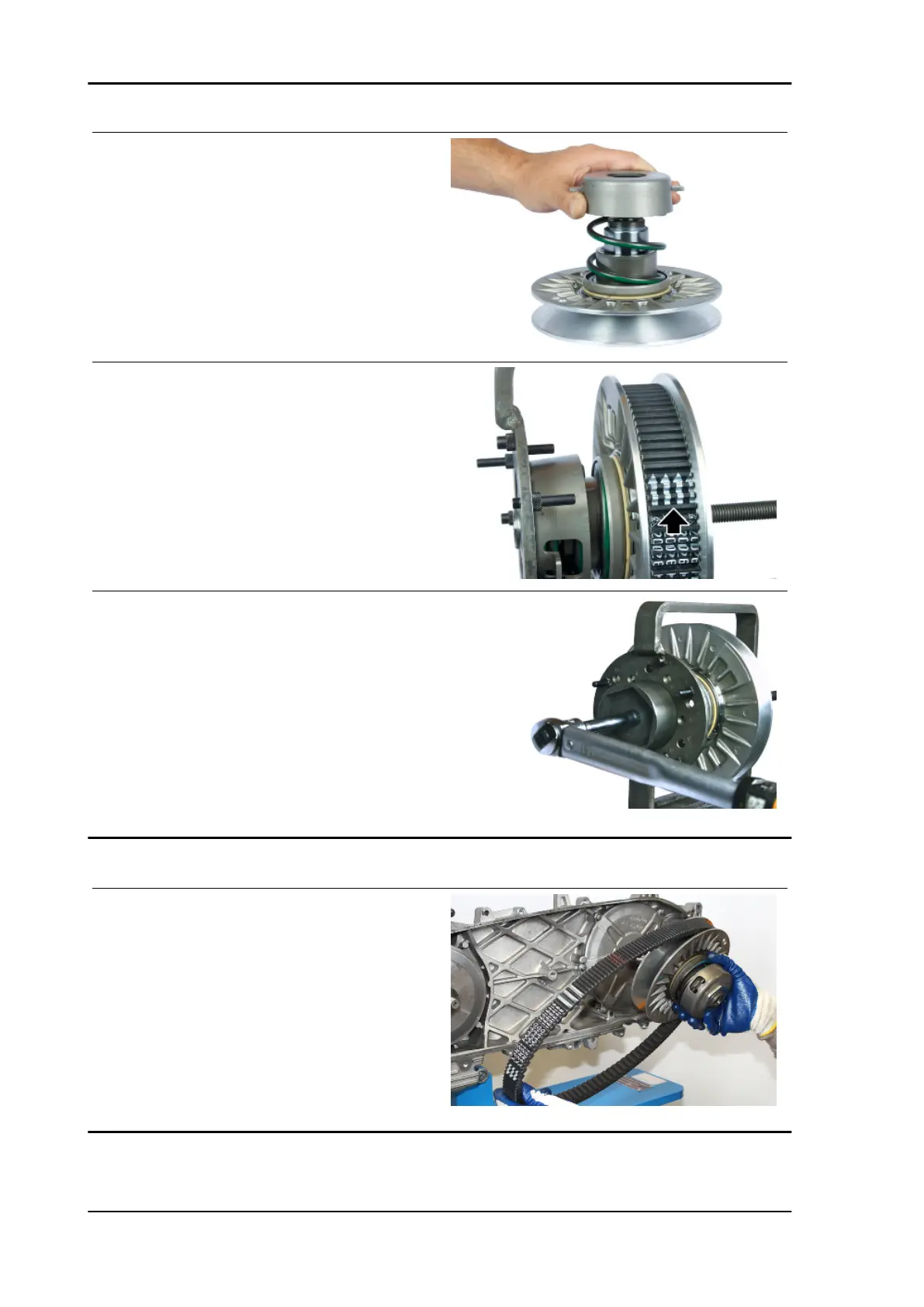

- Insert the upper cap.
- Insert the belt paying attention to the direction of
rotation.
Specific tooling
020444Y Tool for installing/removing clutch
on/from driven pulley
- Turn the control screw of the specific tool and
spring preloading.
- Insert the fixing nut and using the specific
wrench, tighten to torque.
Specific tooling
020444Y009 wrench 46 x 55
Locking torques (N*m)
Driven pulley nut 50 ÷ 60
Refitting the driven pulley
- Insert the driven pulley, complete with belt, on the
shaft.
