FRONT FORK OIL
Specification Desc./Quantity
Front fork oil 155 ± 2,5 cc for each stem.
Tightening Torques
N.B.
THE UNITS OF MEASUREMENT CONTAINED IN THIS CHAPTER ARE EXPRESSED IN TERMS
OF THE DECIMAL METRIC SYSTEM. IN THE CASE OF VALUES EXPRESSED USING IMPERIAL
AND US CUSTOMARY MEASUREMENT UNITS, REFER TO THE CONVERSION TABLE IN CHAP.
«SPECIFICATIONS».

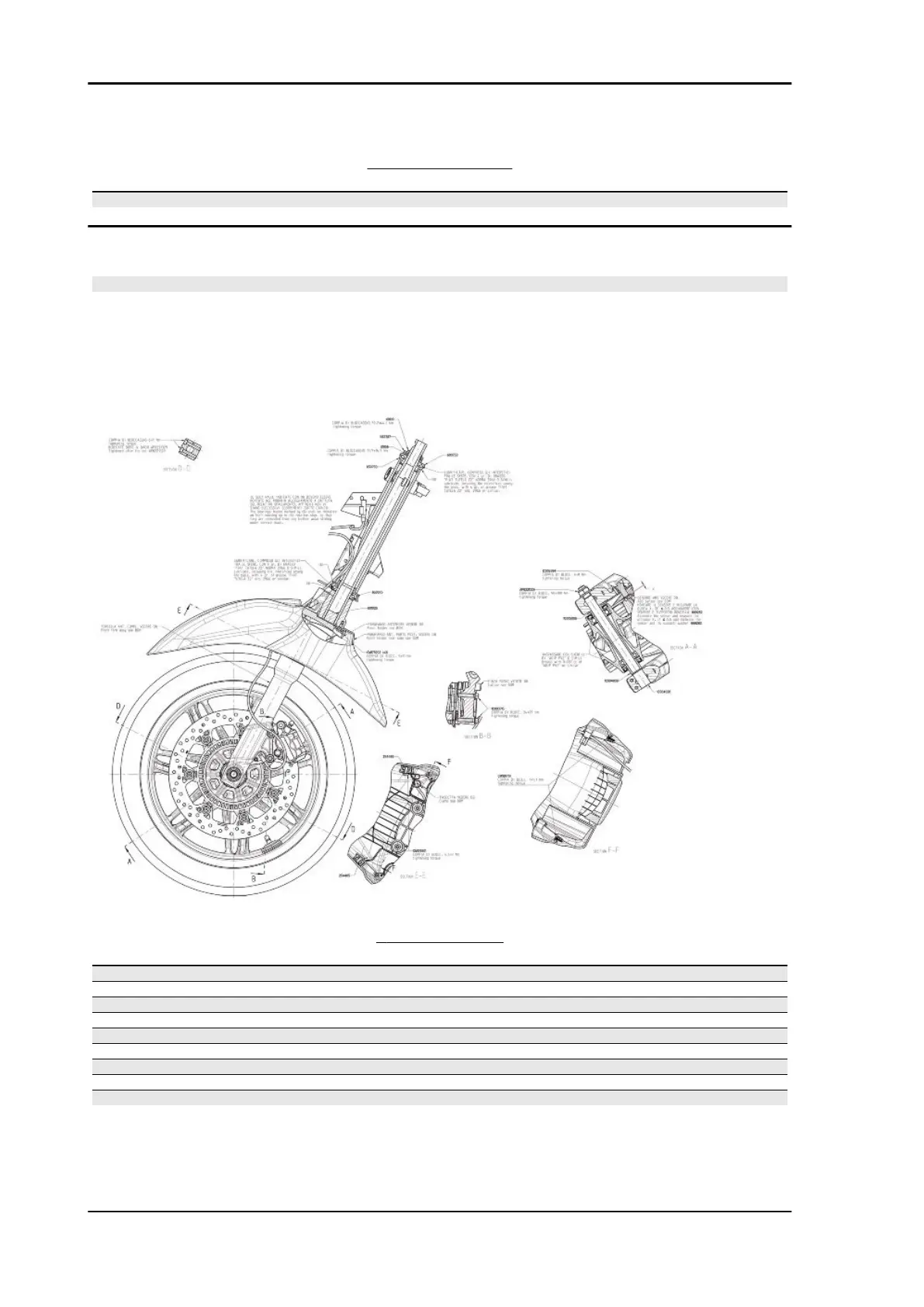

FRONT SUSPENSION
FRONT SUSPENSION
Name Torque in Nm
Front mudguard - Steering tube 10.0 ± 1.0 Nm
Lower steering bearing lock-nut - Steering tube 15.0 ± 2.0 Nm
Upper steering bearing lock-nut - Steering tube 42.0 ± 2.0 Nm
fork - Front wheel axle 6.0 ± 1.0 Nm
Front mudguard (front part) - Front mudguard (rear part) 1.5 ± 0.5 Nm
Front mudguard - Steering tube 6.0 ± 1.5 Nm
Wheel axle nut - wheel axle 95.0 ± 5.0 Nm
ABS sensor - Fork 7.0 ± 1.0 Nm
Brake calliper - Fork 25 ± 1 Nm
