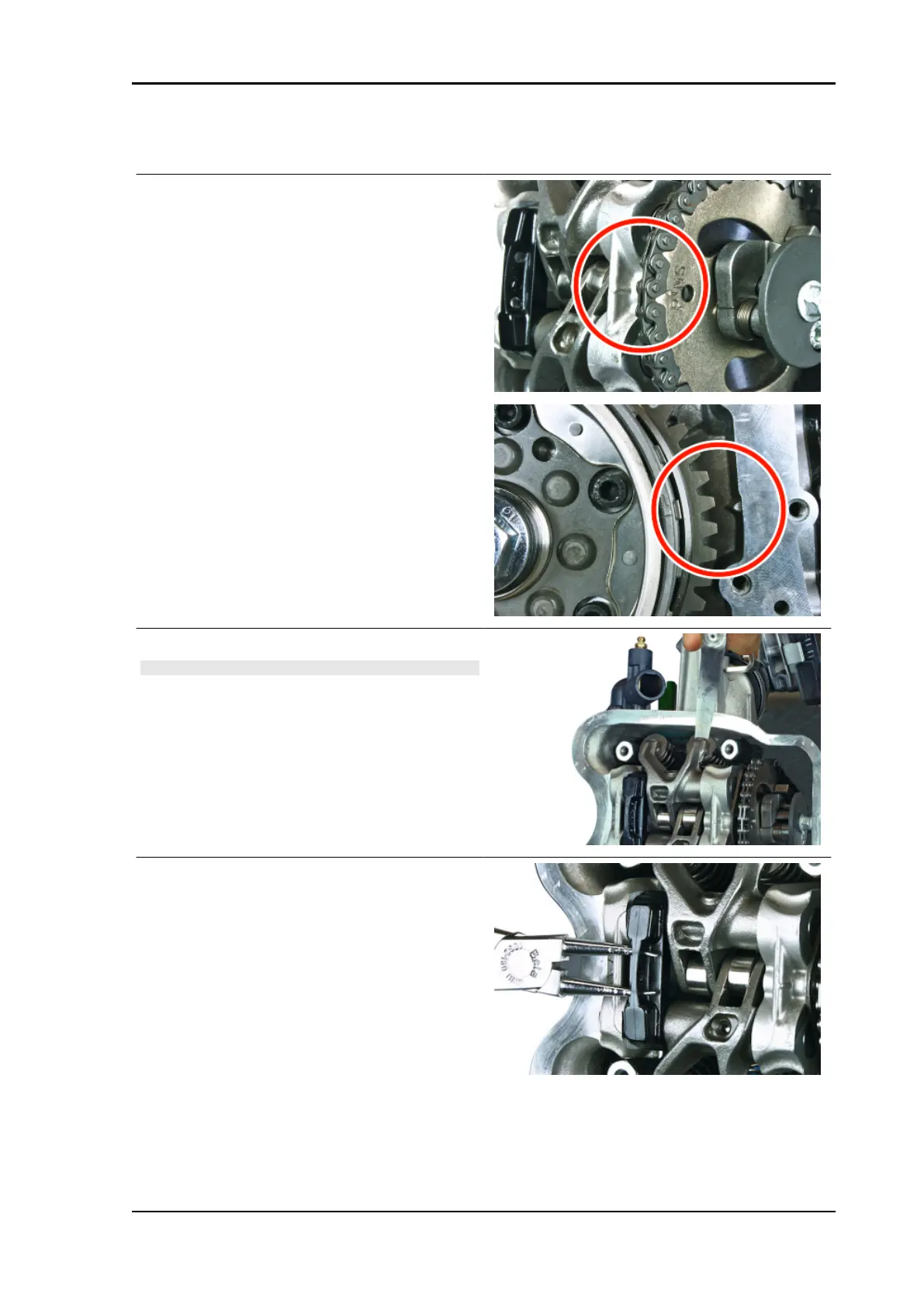

Inspecting the valves
VALVE CLEARANCE CHECK
- Remove the cover.
- Position the engine to the TDC in compression.
- Using a feeler gauge check the valve clearance.
CAUTION
- USE THE FEELER GAUGE LATERALLY, IN LINE WITH
THE VALVES, IN ORDER TO PREVENT ACCIDENTAL
BENDING OF THE BLADE THAT MAY AFFECT THE MEAS-
UREMENTS.
Characteristic
Valve clearance (cold engine)
Intake: 0.10 mm Exhaust: 0.15 mm
- Detecting incorrect values, proceed with the re-
placement of the calibrated pad. To perform this
operation you must remove the rockers lock.
- Using pliers, remove the lock.
Beverly 400 E5 Engine
ENG - 133
