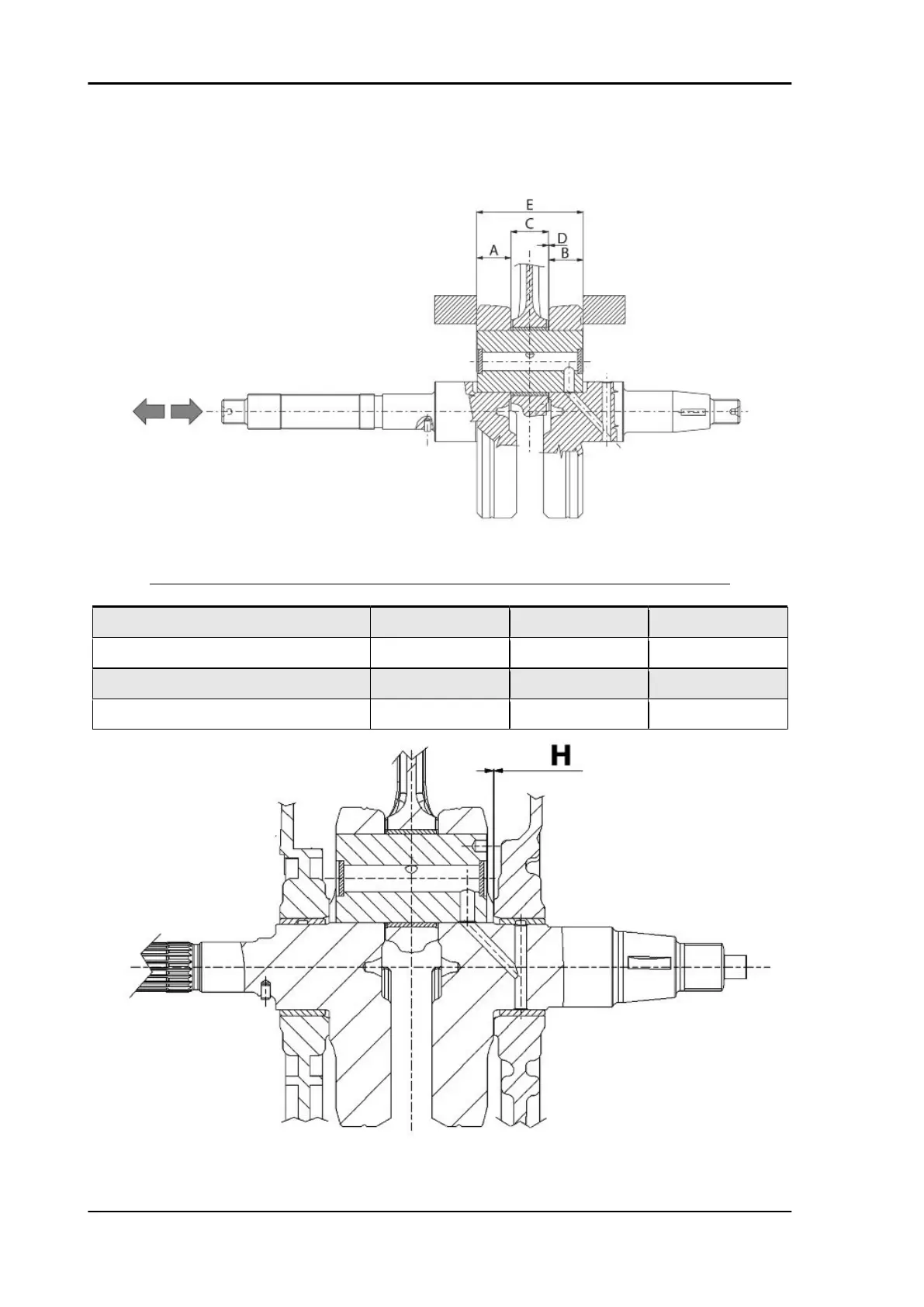

Axial clearance between crankshaft and connecting rod
AXIAL CLEARANCE BETWEEN CRANKSHAFT AND CONNECTING ROD
Name Code Dimensions Assembly clearance
Transmissionside half-shaft A 0.72 (+0; -0.002) in 18.4
(+0; -0.05) mm
D=0.007÷0.01 in
(0.20÷0.50 mm)
Flywheel-side halfshaft B 0.72 (+0; -0.002) in 18.4
(+0; -0.05) mm
D= 0.008÷0.019 in
0.20÷0.50 mm
Connecting rod C 0.7 (-0.003; -0.005) in
19 (-0.10; -0.15) mm
D= 0.007÷0.019 in
0.20÷0.50 mm
Spacer tool E 2.20 (+0; +0.001) in 56
(+0; +0.05) mm
D= 0.007÷0.019 in
0.20÷0.50 mm
