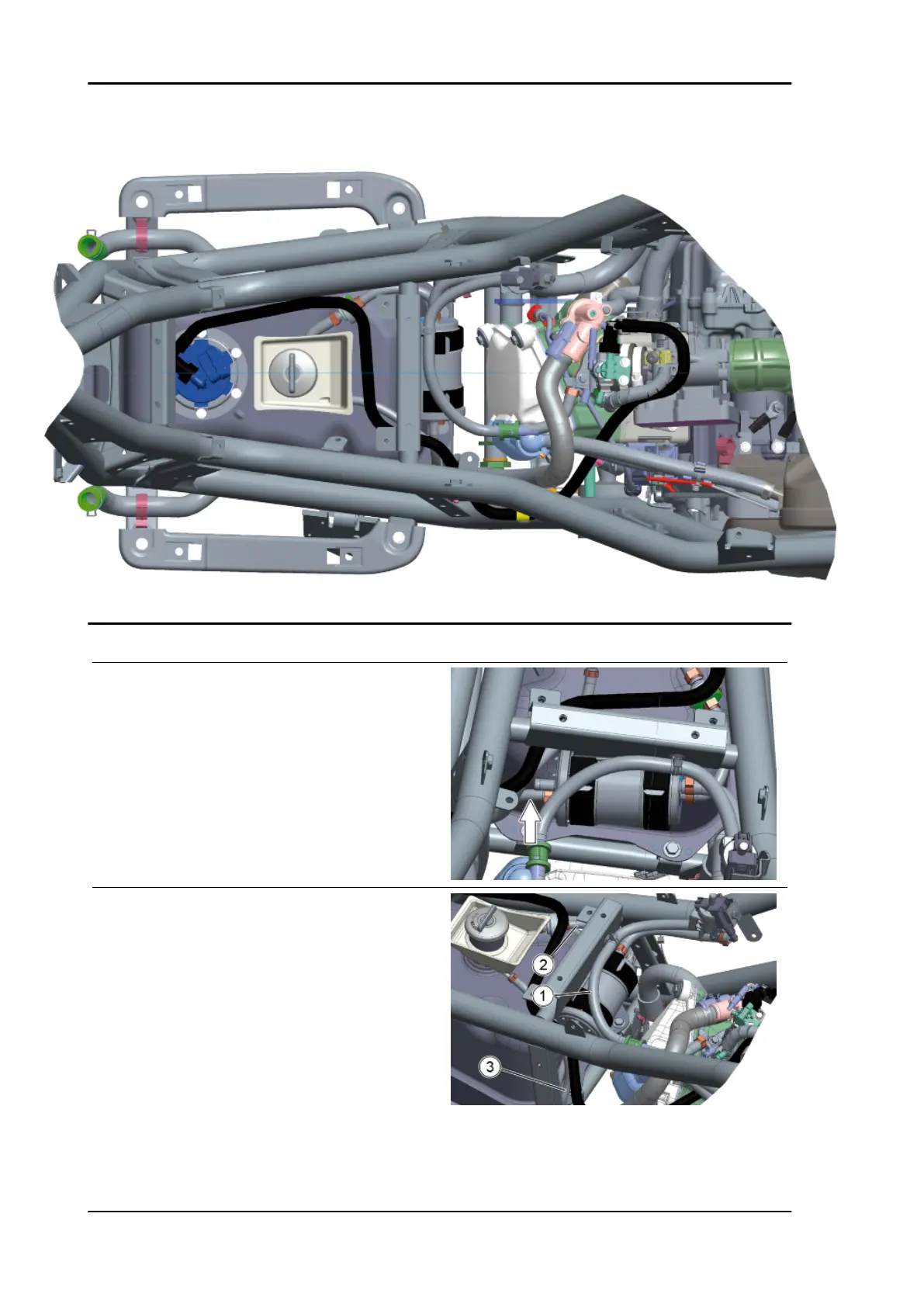

Refitting system components
Fasten the canister to the special pin on the frame,
making sure to position the purge pipe fitting down-
ward.
Upon reassembling the components, use caution
when connecting the pipes to the canister.
1. canister - insertion coupling connection pipe.
2. tank - canister connection pipe.
3. Bleeder pipe.
