[Step 1]

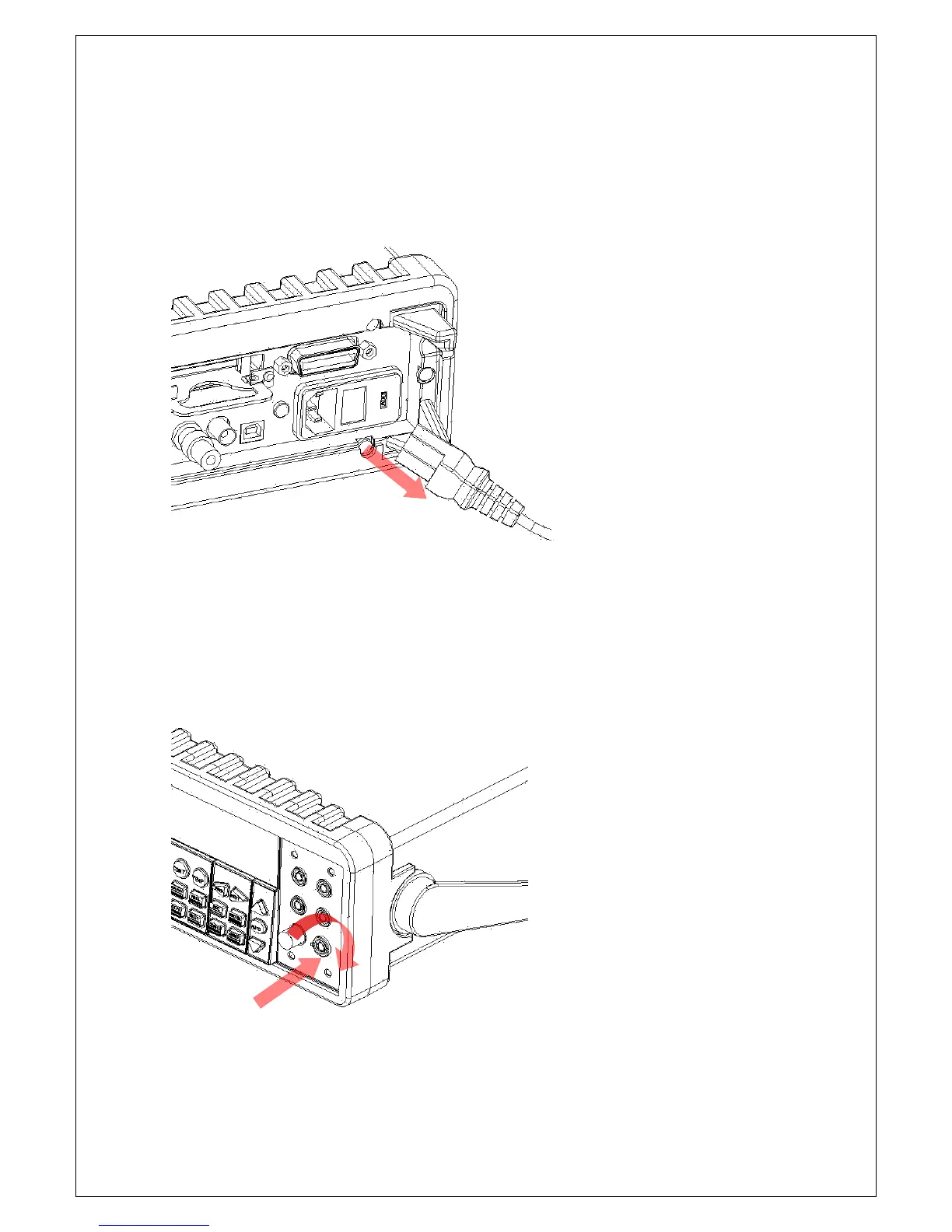

Turn off the multimeter and disconnect the power line cord as shown in
Figure 2-13. Also, you should remove all the test leads that connected to
your instrument.
Figure 2-13
[Step 2]
Push the current input terminal and turn it right as shown in Figure 2-14 .
Figure 2-14
[Step 3]
Pull out the terminal (fuse holder) gently and you will find the current input
