Picotest M3500A - Page 43

43

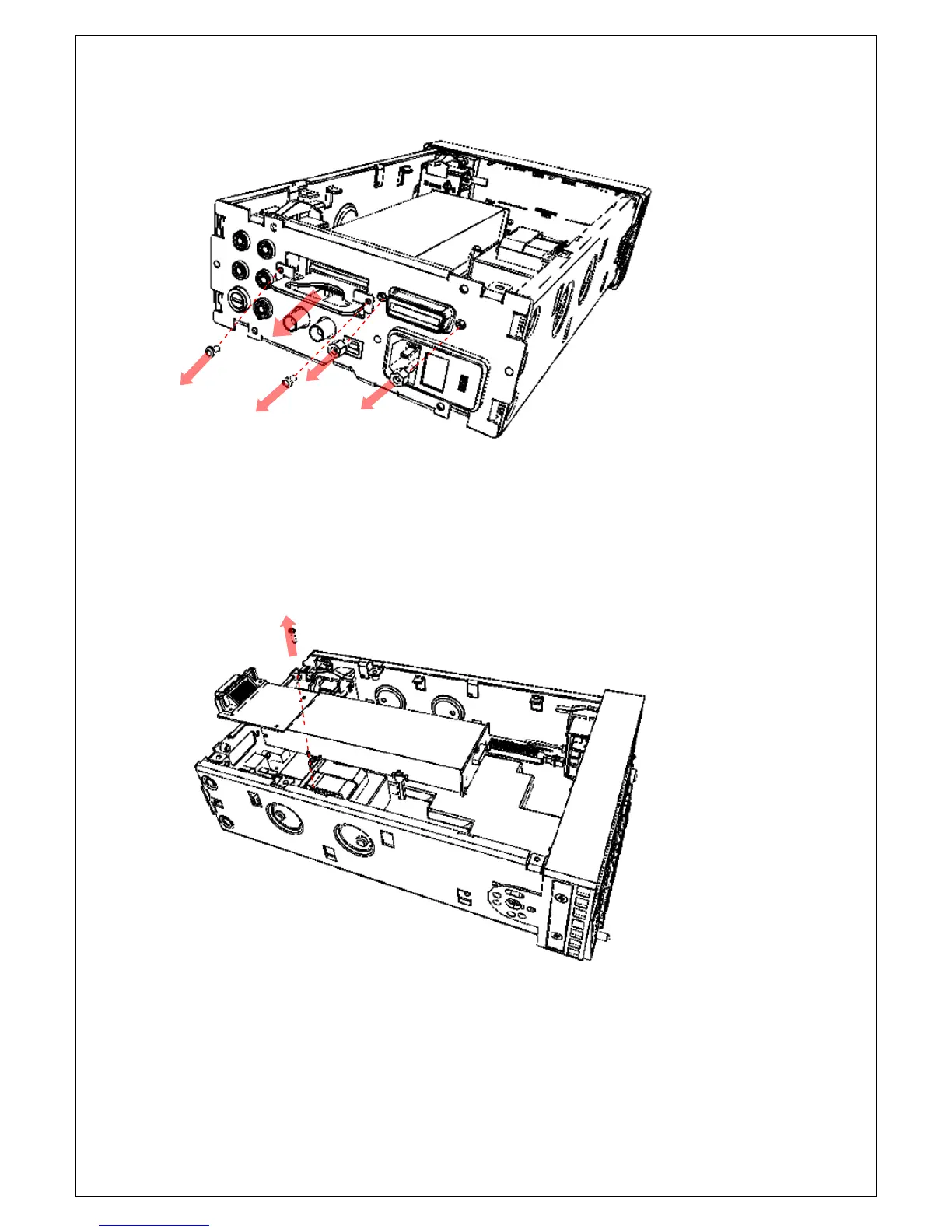

Figure 4-6
 Loose the screw that secures the GPIB card on the plastic cylinder, and
remove the GPIB card carefully.
Figure 4-7
 Disconnect the cable from GPIB card to the connector J1605 on the
main board.
