Pioneer PDP-5000EX User Manual

15
En
Part Names
05
English

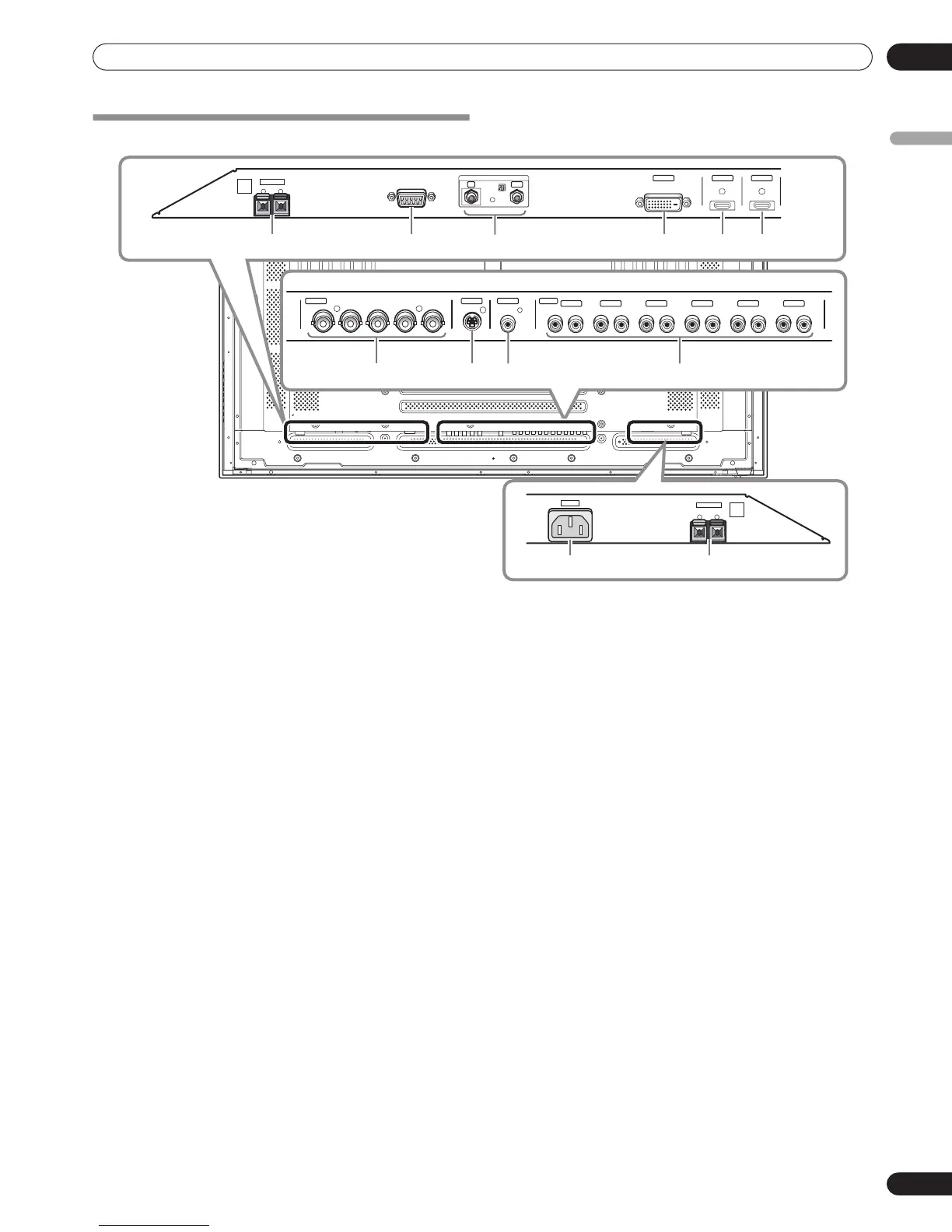

Connection panel
1 SPEAKER (R) terminals
For connection of an external right speaker.
Connect a speaker that has an impedance of 8 Ω to16 Ω.
2 Terminal for Service Adjustments (used
for factory setup)
Never connect any component to these connectors
without first consulting your Pioneer installation
technician.
These connectors are used for Plasma Display setup
adjustments.
3 CONTROL IN/OUT terminals
4 INPUT1 terminal (DVI-D)
5 INPUT2 terminal (HDMI)
6 INPUT3 terminal (HDMI)
7 INPUT4 terminals
(COMPONENT VIDEO: Y, Pb/Cb, Pr/Cr,
ANALOG RGB : G, B, R ,HD, VD)
8 INPUT5 terminal (S-VIDEO)
9 INPUT6 terminal (VIDEO)
10 AUDIO INPUT terminals
Audio input connectors corresponding to INPUT1 to
INPUT6 video input connectors.
11 AC IN
Use to connect the supplied power cord to an AC outlet.
12 SPEAKER (L) terminals
For connection of an external left speaker. Connect a
speaker that has an impedance of 8 Ω to 16 Ω.
AC IN
L
SPEAKER
8Ω ~16Ω
+ –
R
SPEAKER
8Ω ~16Ω
+ –
SERVICE ONLY
IN OUT
CONTROL
HDMI
INPUT2
HDMI
INPUT3
DVI-D
INPUT1
INPUT4 COMPONENT VIDEO / ANAROG RGB
Pb/CbY
G
Pr/Cr
VD
HD
S-VIDEO
INPUT5
INPUT1 INPUT2 INPUT3 INPUT4 INPUT5 INPUT6
VIDEO
RL RL RL RL RL RL
INPUT6 AUDIO
BR
1 2 4 5 6
1211
3
7 8 9 10

Pioneer PDP-5000EX Specifications

General

Depth	98 mm
Width	1282 mm
Height	750 mm
Weight	39800 g
Pixel pitch	- mm
Product color	Black
Audio (L/R) in	1
Noise reduction	Yes
RMS rated power	13 W
Display diagonal	50 \
Display brightness	1000 cd/m²
Display technology	Plasma
Power requirements	AC 110 - 240 V, 50/60 Hz
Contrast ratio (typical)	3000:1
Power consumption (standby)	0.4 W
Power consumption (typical)	420 W
