34
En
Enjoying through External Equipment
11
For audio, the Plasma Display supports the following:
• Linear PCM (STEREO 2ch)
• Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz
NOTE
• PC signals are out of correspondence.

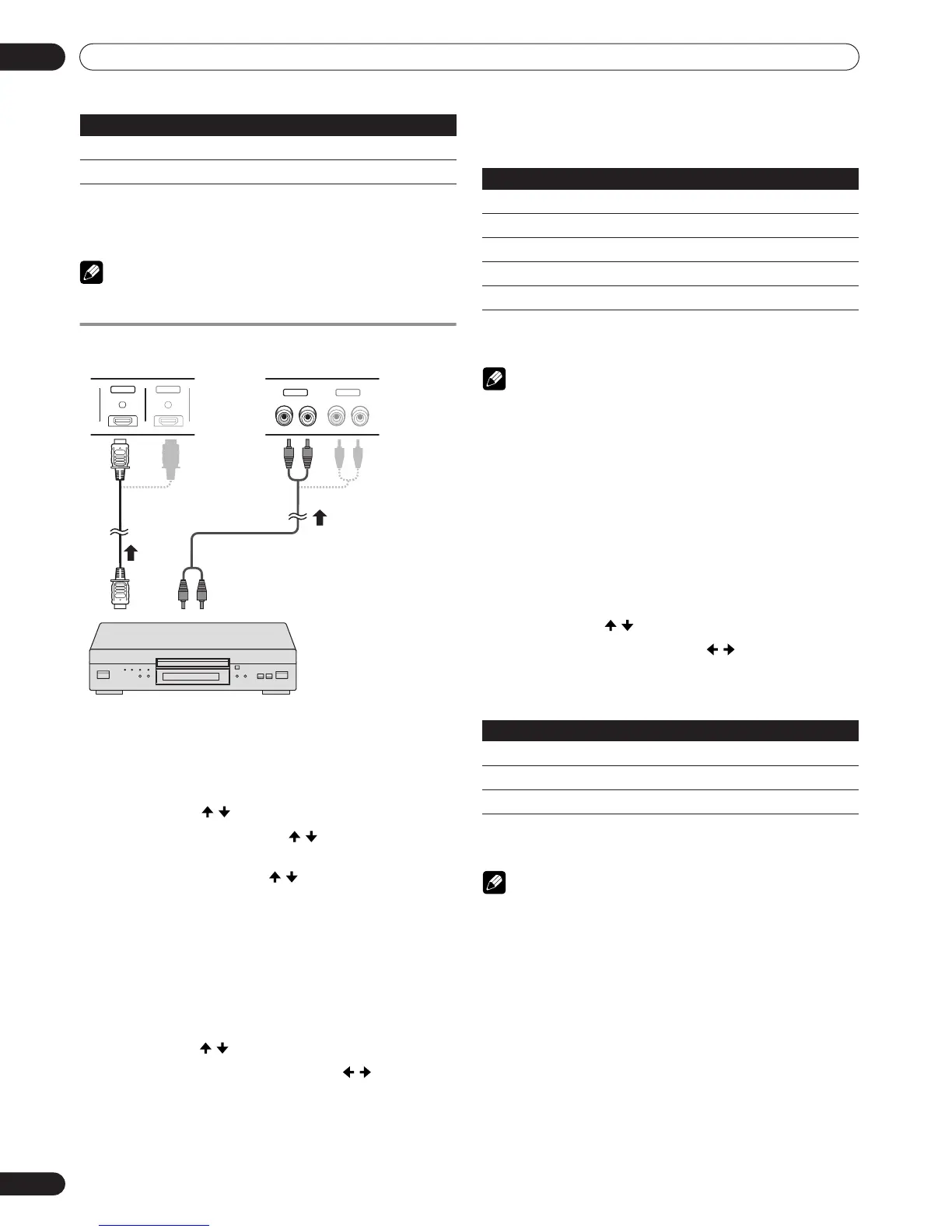

Connecting HDMI equipment
When using the INPUT2 or INPUT3 HDMI terminal:
To activate the HDMI terminal:
When you use the INPUT2 or INPUT3 HDMI terminal, use the
following procedure to activate the terminal.
1 Press HOME MENU.
2 Select “Setup” ( / then ENTER (ENTER/DISP.)).
3 Select “INPUT2” or “INPUT3” ( / then ENTER (ENTER/
DISP.)).
4 Select “Video” or “Audio” ( / ).
5 Set the “Video” or “Audio” setting.
6 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit
the menu.
To specify the type of digital video signals:
1 Repeat steps 1 to 2 provided for “To activate the HDMI
terminal”.
2 Select “Video” ( / ).
3 Select the type of digital video signals ( / ).
• If you select “Auto”, an attempt will be made to identify
the type of digital video signals when digital video
signals are received.
4 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit
the menu.
• If you select a parameter other than “Auto”, make such a
setting that results in natural color.
• If the images do not come in clearly, specify another digital
video signal type.
• For the digital video signal types to be specified, check the
operation manual that came with the connected equipment.
To specify the type of audio signals:
When you use the INPUT2 or INPUT3 HDMI terminal, use the
following procedure to specify the type of audio signals.
1 Repeat steps 1 to 2 provided for “To activate the HDMI
terminal”.
2 Select “Audio” ( / ).
3 Select the type of audio signals ( / ).
• If you select “Auto”, an attempt will be made to identify
the type of audio signals when audio signals are
received.
4 Press HOME MENU, INPUT 1 to INPUT 6 (INPUT) to exit
the menu.
• If no sound is output, specify another audio signal type.
• For the audio signal types to be specified, check the
operation manual that came with the connected equipment.
• Depending on the equipment to be connected, you also need
to connect analogue audio cables.
720*480p@59.94/60 Hz
720(1440)*480i@59.94/60 Hz
Input signal correlation table
HDMI
INPUT2
HDMI
INPUT3
INPUT2 INPUT3
RL RL
AUDIO cable
(commercially available.)
Connect the AUDIO cable only
when inputting analogue audio
signals.
HDMI cable having the
HDMI mark
(commercially available.)
HDMI equipment
Item Description
Auto Automatically identifies input digital video signals.
Color-1 Digital Component Video signals (4:2:2) locked
Color-2 Digital Component Video signals (4:4:4) locked
Color-3 Digital RGB signals (16 to 235) locked
Color-4 Digital RGB signals (0 to 255) locked
Item Description
Auto Automatically identifies input audio signals.
Digital Accepts digital audio signals.
Analogue Accepts analogue audio signals.
To Next Page
