11.3 PANEL FACILITIES
4
67 895
23
1
0

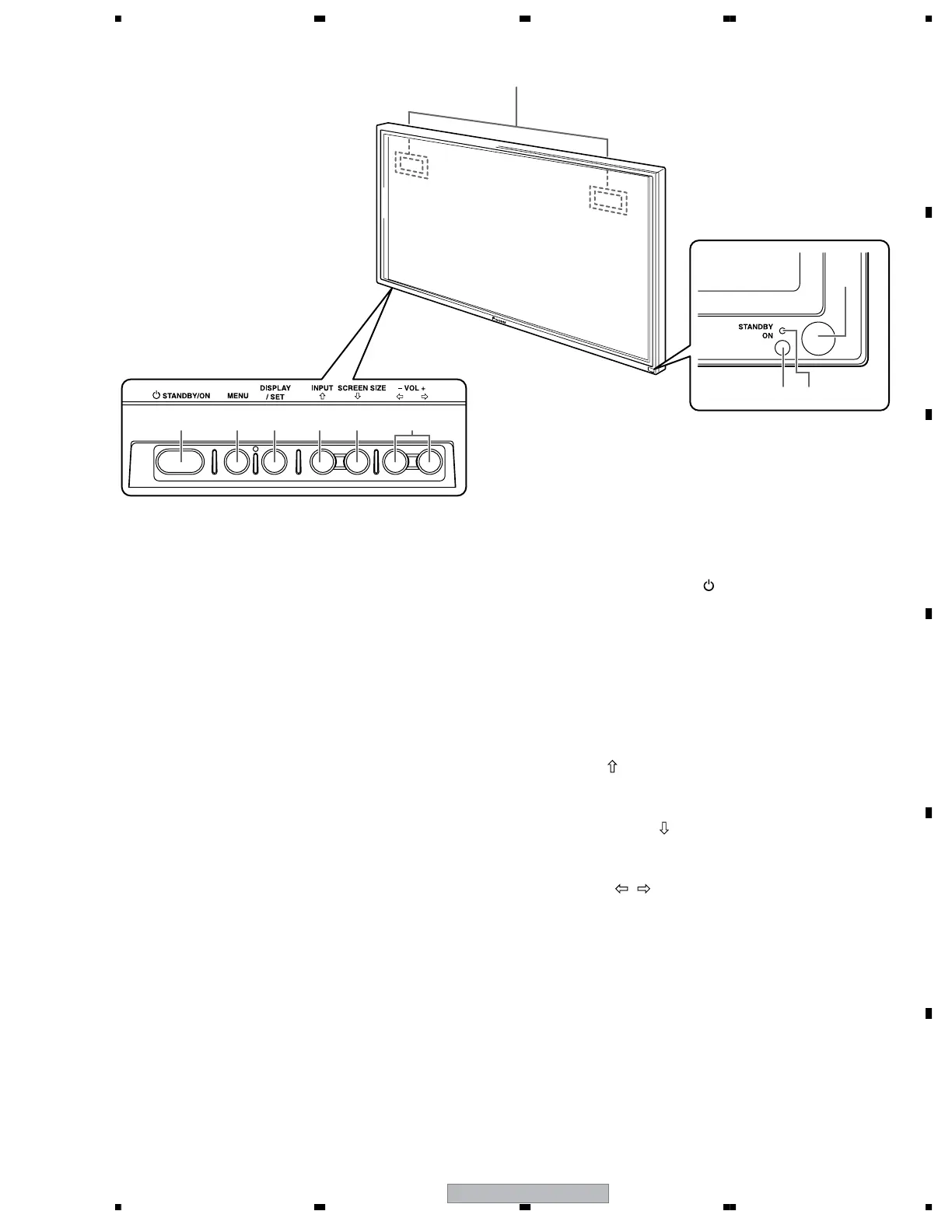

Main unit
Main unit
1 Remote control sensor
Point the remote control toward the remote sensor to
operate the unit.
2 Ambient light sensor
This sensor measures the level of light inside the
viewing room; it is enabled when the [ENERGY
SAVE] option is set to [AUTO].
3 STANDBY/ON indicator
When the unit is operating:
The indicator lights green.
When flashing, the indicator is used to indicate error
messages.
The indicator flashes green once every one second
when the [POWER MGT.] function is operating.
When the unit is in standby mode:
The indicator lights red.
When flashing, the indicator is used to indicate error
messages.
4 Handles
Operation panel on the main unit
5 STANDBY/ON button ( )
Press to put the display in operation or standby mode.
6 MENU button
Press to open and close the on-screen menu.
7 DISPLAY/SET button
Use to confirm onscreen menu selections, and to
change settings.
When not indicated by onscreen menus, used to
display the current set status.
8 INPUT ( ) button
Except when menu screen is displayed, this button
operates to change the input.
9 SCREEN SIZE ( ) button
Except when menu screen is displayed, this button
operates to change the screen size.
0 VOL +/– ( / ) buttons
When not indicated for use in onscreen menu items,
these buttons are used for adjusting the sound
volume .
Main unit
Operation panel on the
main unit
