PDP-507CMX
24
1234
1234
C
D
F
A
B
E
1 Ferrite Clamp Base ANG3030 ×1 (No. 28 of exterior)
NSP 2 PCB Spacer AEC1126 ×4 (No. 9 of exterior)
3 PCB Spacer AEC1570 ×2 (No. 10 of exterior)
4 Wire Saddle AEC1745 ×11 (No. 11 of exterior)
5 Wire Saddle AEC1751 ×9 (No. 12 of exterior)
6 PCB Support AEC1938 ×2 (No. 14 of exterior)
7 PCB Support AEC1958 ×5 (No. 15 of exterior)
8 Mini Clamp AEC1971 ×1 (No. 16 of exterior)
9 Harness Lifter 28 AEC1982 ×4 Not used
10 Ferrite Clamp AEC1986 ×10 (No. 17 of exterior)
11 DC Unit Sheet AMR3612 ×1 (No. 19 of exterior)
12 Address Sheet A (50X7) AMR3615 ×1 Not used
13 Address Sheet E AMR3621 ×1 (No. 20 of exterior)
14 Address Sheet A AMR3628 ×1 (No. 21 of exterior)
15 Address Sheet B AMR3629 ×1 (No. 22 of exterior)
16 Address Sheet D AMR3631 ×1 Not used
17 Address Sheet F AMR3646 ×1 Not used
18 Address Sheet J AMR3658 ×1 (No. 23 of exterior)
19 Address Sheet K AMR3659 ×1 (No. 24 of exterior)
20 Address Sheet L AMR3660 ×1 (No. 25 of exterior)
21 Gasket E ANK1874 ×2 (No. 26 of exterior)
22 Gasket AV8 ANK1881 ×6 Not used
23 Rivet A BEC1158 ×2 (No. 27 of exterior)
24 Caution Label AAX3031 ×2
25 • • • • ×1
25 Polyethylene Bag AHG1337 ×1
26 Polyethylene Bag S AHG1338 ×3
NSP 27 Polyethylene Bag AHG1340 ×1
28 Pad (507 T-L) AHA2538 ×1
29 Pad (507 T-R) AHA2539 ×1
30 Pad (507 B-L) AHA2540 ×1
31 Pad (507 B-R) AHA2541 ×1
32 Under Carton (507) AHD3473 ×1
33 Upper Carton (507SV) AHD3550 ×1
34 Protect Sheet AHG1331 ×1

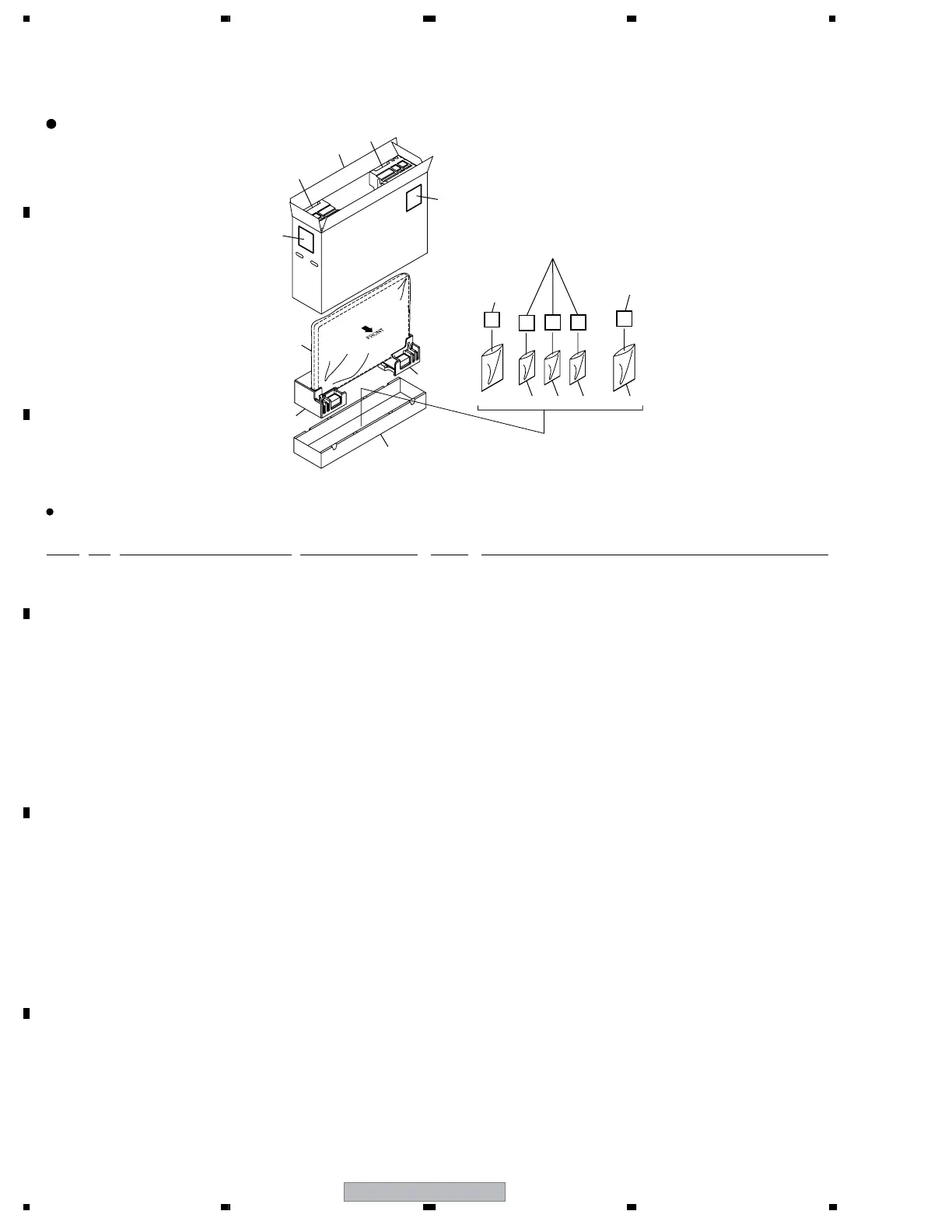

PACKING SECTION PARTS LIST
Mark No. Description Part No. Remarks
No. of
pcs
1
33
32
34
30
28
29
31
26 26 26 27
2 ×4, 3 ×2, 4 ×11, 5 ×9, 6 ×2,
7 ×5, 8, 9 ×4, 10 ×10, 21 ×2,
22 ×6, 23 ×2
11, 12, 13, 14, 15,
16, 17, 18, 19, 20
PACKING SECTION
24
24
To Next Page
