Integrator Mode
TRANSLUCENT PIP
Select the degree of transparency for the PICTURE IN PICTURE sub-screen.
As the translucent percentage rises, the sub-screen becomes less visible, fades.
BANNER PIP

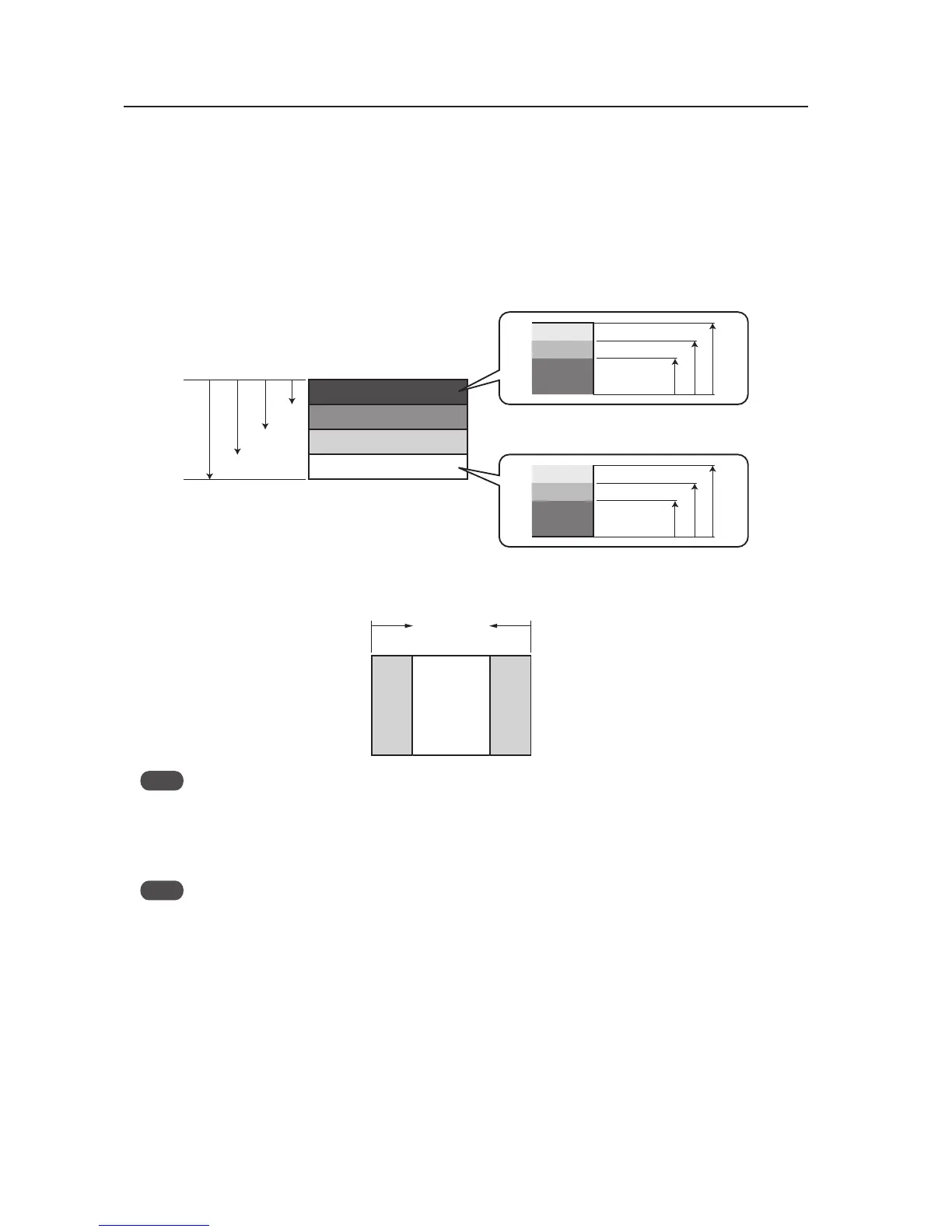

Select the PICTURE IN PICTURE sub-screen position from the locations shown below.
The Banner sub-screen option uses only the top 1/4 of a PC signal input. For example, to add a picture or text as a
banner from Microsoft PowerPoint, the image or text must be placed in the top 1/4 area of the slide(s).
(It displays the left 256 dots of the input signal. The sub-screen operates only during personal computer signal input.
To insert it, prepare it in an area of 256 dots x 786 lines on the left side.)
Note
The higher the resolution of the main screen, the blurrier the sub-screen appears.
BANNER INPUT
Select input (INPUT1 or INPUT2) during BANNER PIP.
Note
This function will not operate if the main screen and BANNER INPUT are the same.
MID HIGH
MID LOW
192384576768
1024
TOP 1
TOP 2
TOP 3
BOTTOM 1
BOTTOM 2
BOTTOM 3
256
768
256
LEFT RIGHT
