Connecting your equipment
03
17
En

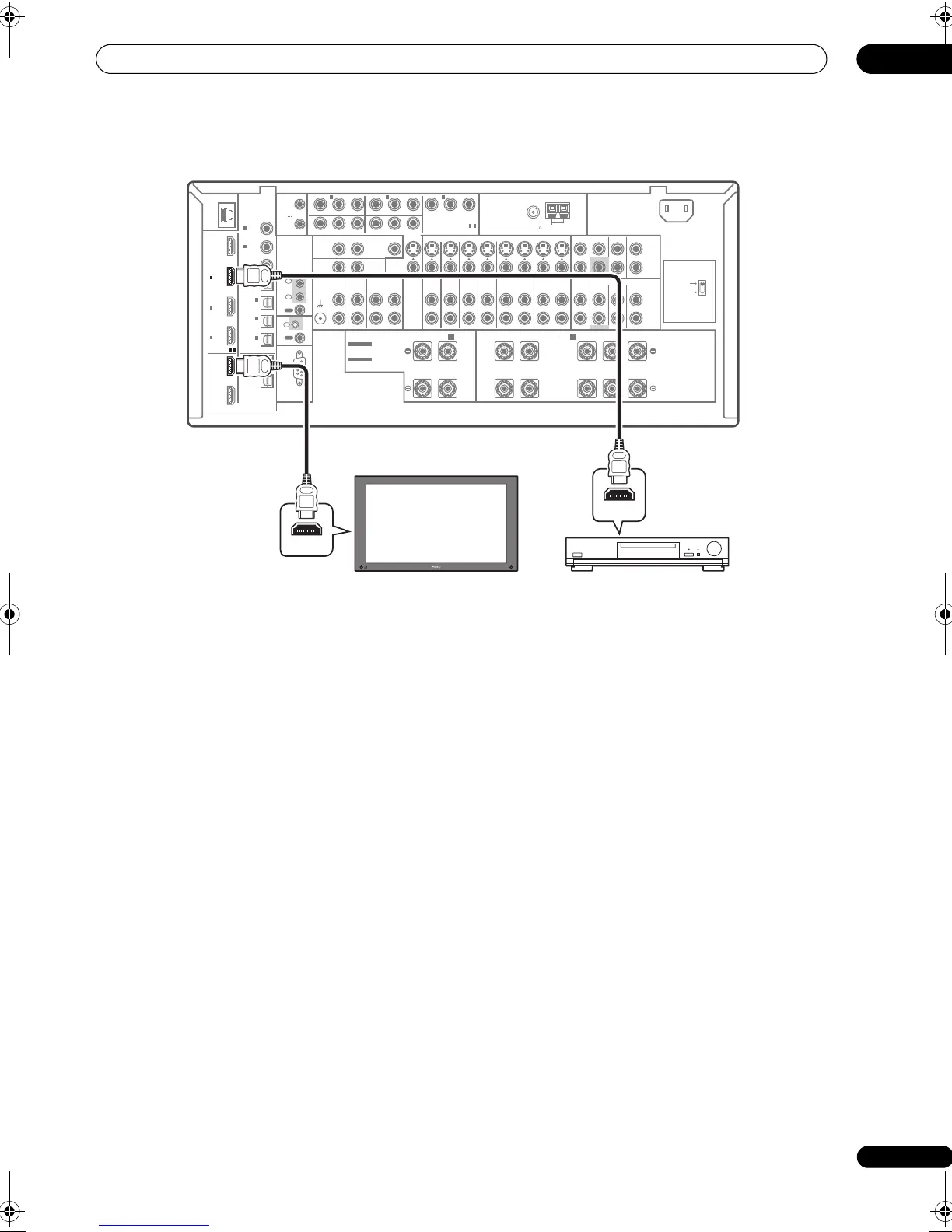

1 Use an HDMI cable to connect one of the
HDMI IN
interconnects on this receiver to an HDMI output on
your HDMI component.
The HDMI indicator lights on the fr ont panel when an
HDMI-equipped component is connected.
2 Use an HDMI cable to connect the
HDMI OUT
interconnect on this receiver to an HDMI interconnect
on an HDMI-compatible monitor.
•Be careful to connect the terminal in the proper
direction.
3Use
INPUT SELECT
to select the HDMI input you’ve
connected to (for example,
HDMI 1
).
You can also perform the same operation by using the
INPUT SELECTOR dial on the front panel or by pressing
HDMI on the remote control repeatedly.
•Set the HDMI parameter in Setting the Audio options
on page 93 to THROUGH if you want to hear HDMI
audio output from your TV or flat screen TV (no sound
will be heard from this receiver).
• If the video signal does not appear on your TV or flat
screen TV, try adjusting the resolution settings on
your component or display. Note that some
components (such as video game units) have
resolutions that may not be converted. In this case,
use an analog video connection.
•You can’t hear HDMI audio throu
gh
this receiver’s
digital out jacks.
About HDMI
HDMI (High Definition Multimedia Interface) supports
both video and audio on a single digital connection for
use with DVD players, DTV, set-top boxes, and other AV
devices. HDMI was developed to provide the
technologies of High Bandwidth Digital Content
Protection (HDCP) as well as Digital Visual Interface
(DVI) in one specification. HDCP is used to protect digital
content transmitted and received by DVI-compliant
displays.
HDMI has the capability to support standard, enhanced,
or high-definition video plus standard to multi-channel
surround-sound audio. HDMI features include
uncompressed digital video, one connector (instead of
several cables and connector s), and communication
between the AV source and AV devices such as DTVs.
HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
LAN
(10/100)
DIGITAL
SPEAKERS
OPTICAL
RS-232C
HDMI
COAXIAL
COMPONENT VIDEO
ANTENNA
PRE OUT
MULTI CH IN
A
IR
CONTROL
BD
IN
12 V
TRIGGER
IN
1
IN
2
IN
3
OUT
1
OUT
2
SOURCE
OUT
ZONE3/
SOURCE
OUT
31
ASSIGNABLE
-
31
ASSIGNABLE
-
(HDMI
CTRL)
ASSIGNABLE
ASSIGNABLE
(CD-R)
IN
4
(VIDEO1)
IN
3
(DVR1)
IN
2
(TV/SAT)
IN
1
IN
3 (DVR2)
IN
2 (CD)
IN
1
(DVD)
IN
1 IN
2
(OUTPUT
12V
TOTAL
50mA
MAX)
1
2
IN
1
IN
IN
2
OUT
OUT
(DVD)
P
R
P
B
YP
R
P
B
Y
P
R
P
B
Y
(VIDEO1)
IN
3
(VIDEO2)
R
ZONE 2 OUT
MONITOR
OUT
PHONO
IN
CD
IN
DVD
IN
TV/SAT
IN
VIDEO1
IN
VIDEO2
IN OUT
DVR1
IN OUT
DVR2
IN
OUT IN
CD-R/TAPE
SIGNAL
GND
ZONE 2
OUT
ZONE 3
OUT
VIDEO
VIDEO
S-VIDEO
FRONT CENTER
SUBWOOFER
SURROUND SURROUND BACK
FRONT CENTER
CENTER
LR
FRONT
B
LR
SURROUND BACK/
LR
SURROUND
SUBWOOFER
SURROUND SURROUND BACK
(Single)
(Single)
L
L
R
SEE INSTRUCTION
MANUAL
L
R
L
R
FM UNBAL 75 AM LOOP
SELECTABLE
VOIR LE MODE
D'EMPLOI
SELECTABLE
AC IN
220 - 230 V
240 V
VOLTAGE
SELECTOR
IN
1
OUT
1
31
ASSIGNABLE
-
(HDMI
CTRL)
HDMI
HDMI IN
HDMI OUT
SC-LX81
HDMI/DVI-equipped component
HDMI/DVI-compatible monitor or
flat screen TV
SCLX81_71.book 17 ページ ２００８年７月２５日 金曜日 午後３時１分
