Pioneer SC-LX81 Operating Instructions

Other connections
09
62
En

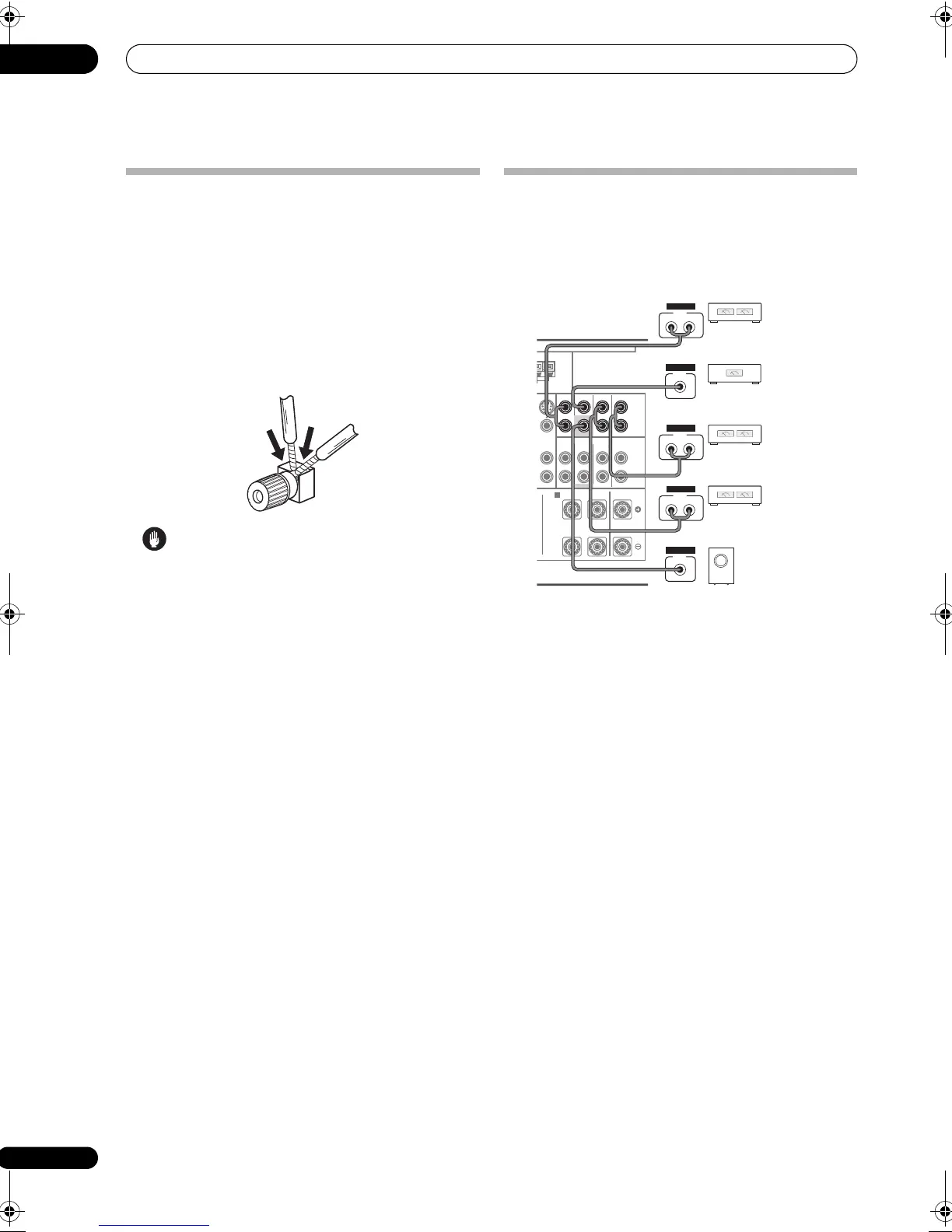

Bi-wiring your speakers
The reasons for bi-wiring are basically the same as bi-
amping, but additionally, interference effects within the
wire could be reduced, producing better sound. Again, to
do this your speakers must be bi-wireable (that is they
must have separate terminals for the high and low
frequencies). When bi-wiring, make sure you’ve selected
Normal or Speaker B in Surround back speaker setting on
page 56.
• To bi-wire a speaker, connect two speaker cords to
the speaker terminal on the receiver.
Caution
•Make sure you use a parallel (not series, which are
fairly uncommon) connection when bi-wiring your
speakers.
• Don’t connect different speakers from the same
terminal in this way.
Connecting additional amplifiers
This receiver has more than enough power for any home
use, but it’s possible to add additional amplifiers to every
channel of your system using the pre-outs. Make the
connections shown below to add amplifiers to power
your speakers.
• You can use the additional amplifier on the surround
back channel pre-outs for a single speaker as well. In
this case plug the amplifier into the left (L (Single))
terminal only.
• The sound from the surround back terminals will
depend on how you have configured the Surround
back speaker setting on page 56.
•To hear sound only from the pre-outs, switch the
speaker system to OFF, or simply disco
nnec
t any
speakers that are connected directly to the receiver.
•If you’re not using a subwoofer, change the front
speaker setting (see Speaker Setting on page 56) to
LARGE.
PRE OUT
MULTI CH IN
A
V
R2
IN
FRONT CENTER
SUBWOOFER
SURROUND SURROUND BACK
FRONT CENTER
CENTER
LR
FRONT
SUBWOOFER
SURROUND SURROUND BACK
(Single)
L
R
L
R
M
LOOP
PRE OUT
FRONT CENTER
SUBWOOFER
SURROUND SURROUND BACK
(Single)
L
R
INPUT
LR
ANALOG
INPUT
LR
ANALOG
INPUT
LR
ANALOG
INPUT
ANALOG
INPUT
ANALOG
Powered
subwoofer
Front channel
amplifier
Center channel
amplifier (mono)
Surround channel
amplifier
Surround back
channel amplifier
SC-LX81
SCLX81_71.book 62 ページ ２００８年７月２５日 金曜日 午後３時１分
