Controls and displays
04
29
En
Chapter 4:
Controls and displays
Front panel

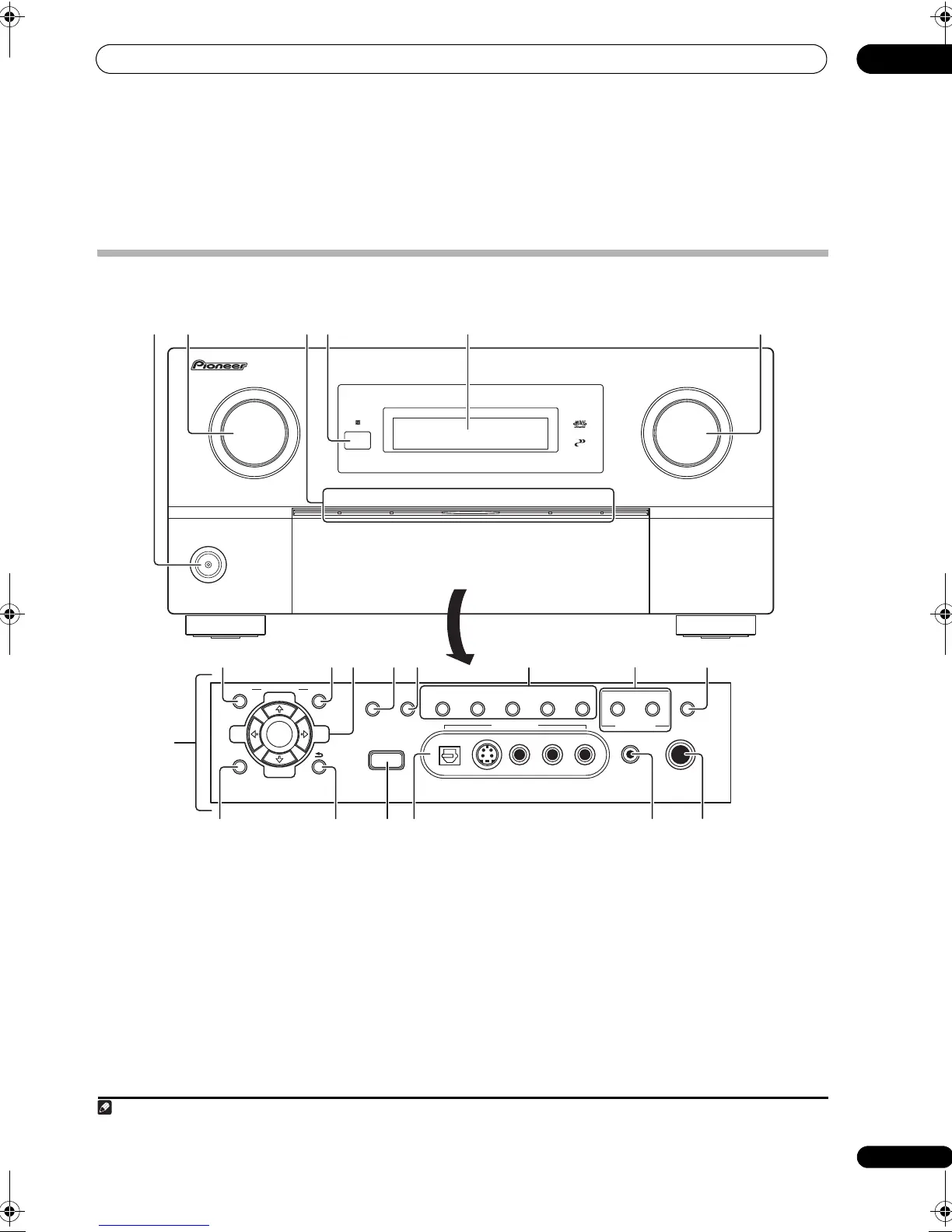

Illustration shows the SC-LX81 front panel.
1
STANDBY/ON
Switches the receiver between on and standby. Power
indicator lights when the receiver is on.
2
INPUT SELECTOR
dial
Use to select an input source.
3
PHASE CONTROL
indicator
– Lights to indicate
Phase Control or Full Band Phase Control is selected
(page 11).
ADVANCED MCACC indicator – Lights when one of
the Selecting MCACC presets on page 38 is selected.
1
DIGITAL VIDEO SCALER indicator – Lights when
Resolution is set to a setting other than PURE (for
example, when the video input signal is upscaled
(page 16)).
HDMI indicator – Blinks when connecting an HDMI-
equipped component; lights when the component is
connected (page 16).
4 Remote sensor
Receives the signals from the remote control (see
Operating range of remote control unit on page 30).
5 Character display
See Display on page 31.
STANDBY/ON
INPUT
SELECTOR
PHASE
CONTROL
ADVANCED
MCACC
DIGITAL VIDEO
SCALER HDMI
MASTER
VOLUME
SC-LX81
VIDEO3 INPUT
DIGITAL IN S-VIDEO VIDEO L RAUDIO PHONES
SPEAKERSCONTROL
MULTI-ZONE
& SOURCE
ON/OFF
MCACC
SETUP MIC
PARAMETER
ENTER
(TUNE)
(TUNE)
(ST)(ST)
AUDIO VIDEO
TUNER EDIT
iPod DIRECT
USB
AUTO SURR/
STREAM DIRECT
HOME
THX
STANDARD
SURROUND
ADVANCED
SURROUND
STEREO/
A.L.C.BAND
HOME MENU RETURN
1
7
23
8
16 17
9 11 12 151410
4 5 6
13
20 211918
Note
1 The MCACC indicator does not light when the MCACC preset memory currently being selected has not been corrected with Acoustic
Calibration EQ Professional or when EQ is set to OFF in the AUDIO PARAMETER menu (see Setting the Audio options on page 93).
