Controls and displays
04
31
En

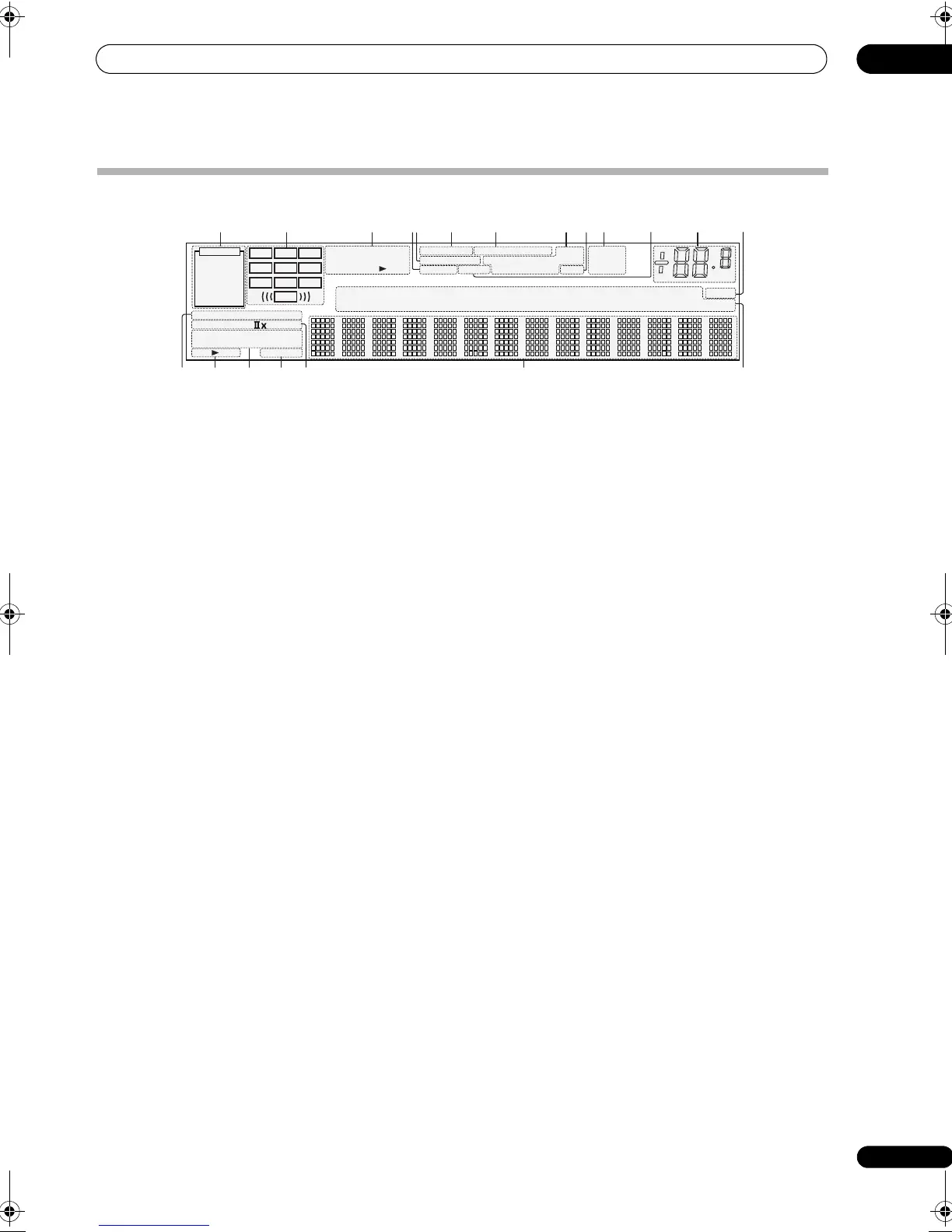

Display
1 SIGNAL indicators
Light to indicate the currently selected input signal.
AUTO lights when the receiver is set to select the input
signal automatically (page 38).
2 Program format indicators
These change according to which channels are active in
digital sources.
L – Left front channel
C – Center channel
R – Right front channel
SL – Left surround channel
S – Surround channel (mono)
SR – Right surround channel
SBL – Left surround back channel
SB – Surround back channel (mono)
SBR – Right surround back channel
LFE – Low frequency effects channel (the ((( ))) indicators light when
an LFE signal is being input)
3 Digital format indicators
Light when a signal encoded in the corresponding format
is detected (DSDPCM lights during DSD (Digital
Stream Direct) to PCM conversion with SACDs).
4 S.RTRV
Lights when the Sound Retriever is switched on (page 93) .
5 MULTI-ZONE
Lights when the MULTI-ZONE feature is active (page 63).
6 FULL BAND
Lights when the Full Band Phase Control is switched on
(page 12).
7 PHASE CONTROL
Lights when the Phase Control or Full Band Phase
Control is switched on (page 11).
8 Sound processing indicators
Light according to the active Audio parameter(s)
(page 93) and/or ANALOG ATT (page 96).
9 V.SB
Lights during Virtual surround back processing
(page 39).
10 TUNER indicators
TUNED – Lights when a broadcast is being received.
STEREO – Lights when a stereo FM broadcast is
being received in auto stereo mode.
MONO – Lights when the mono mode is set using MPX .
11 SOUND
Lights when any of the Midnight, Loudness or tone
controls feature is selected (page 93).
12 Master volume level
Shows the overall volume level. –80dB indicates the
minimum level, and +12dB indicates the maximum level.
13 SR+
Lights when the SR+ mode is switched on (page 68).
14 STREAM DIRECT
Lights when Direct/Pure Direct is selected (page 38).
15 Speaker indicators
Lights to indicate the current speaker system, A and/or B
(page 61).
16 Listening mode indicators
THX – Lights when one of the Home THX modes is
selected.
ADV.SURROUND – Lights when one of the
Advanced Surround modes has been selected.
STEREO – Lights when stereo listening is switched
on (see Listening in stereo on page 37).
STANDARD – Lights when one of the Standard
Surround modes is switched on (see Standard
surround sound on page 35).
17 SLEEP
Lights when the receiver is in sleep mode (page 96).
STREAM DIRECT
HDMI
PCM
LCR
SL S SR
SBL SB
LFE
SBR
AUTO
ADV.SURROUND
STANDARD
SLEEP
THX
STEREO
SP
AB
DIGITAL
PRO LOGIC
DIGITAL
WMA9 Pro
SR+
DTS
OVER
AT T
S.RTRV
MONO
dB
DIALOG E
PHASE CONTROL
STEREO
V. S B
TUNED
N eo : 6
2
2
ANALOG
FULL BAND
MULTI-ZONE
2
HD
AAC
DSD
PCM
DNR
SOUND
Hi-Bit/Sampling
HMG
VIDEO
TV
DVD
HDMI
DVR BDP
CD
TUNER
CD-R
PHONO
[ 1 ]
[ 2 ]
[ 3 ]
21 3 8765 10 11 12 13
191514 17 2018
4 9
16
