Connecting your equipment
03
27
En

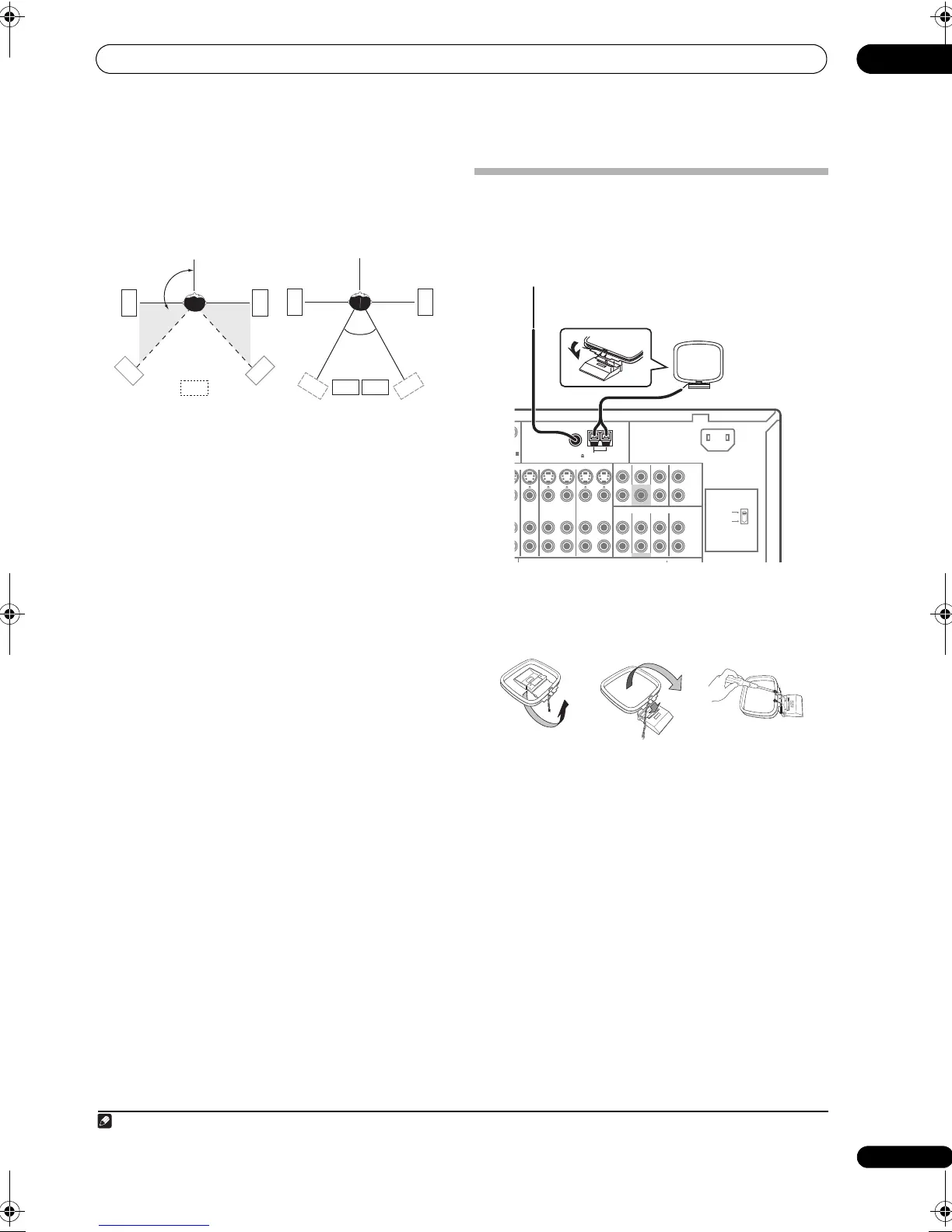

The diagrams below show suggested surround and
surround back speaker orientation. The first diagram (fig.
A) shows orientation with one surround back speaker (or
none) connected. The second (fig. B) shows orientation
with two surround back speakers connected.
Connecting antennas
The supplied antennas provide a simple way to listen to
AM and FM radio. If you find that reception quality is
poor, an outdoor antenna should give you better sound
quality—see Connecting external antennas on page 28.
AM loop antenna
1 Assemble the stand as shown in the illustration.
1
• Bend the stand in the dir ection indicated (fig. A).
•Clip the loop into the stand (fig. B).
•It’s possible to fix the AM antenna to a wall (fig. C).
Before fixing, make sure that the reception is
satisfactory.
2 Pull off the protective shields of both AM antenna
wires.
3 Press the
AM LOOP antenna terminal tabs to open
and insert one wire into each terminal.
4 Release the tabs to secure the AM antenna wires.
5 Place the AM antenna on a flat surface and point in
the direction giving the best reception.
Avoid placing near computers, television sets or other
electrical appliances and do not let it come into contact
with metal objects.
LS
LS
RS
RS
SB
LS
RS
SBL
SBL
SBR
SBR
90° to 120°
0° to 60°
fig. A
fig. B
Note
1 Do not use any antennas other than the supplied AM loop antenna.
E
O
ANTENNA
PRE OUT
MULTI CH IN
3
-
O
1 VIDEO2
IN OUT
DVR1
IN OUT
DVR2
IN
S-VIDEO
FRONT CENTER
SUBWOOFER
SURROUND SURROUND BACK
FRONT CENTER
SUBWOOFER
SURROUND SURROUND BACK
(Single)
L
R
L
R
FM UNBAL 75 AM LOOP
AC IN
220 - 230 V
240 V
VOLTAGE
SELECTOR
ANTENNA
FM UNBAL 75 AM LOOP
SC-LX81
fig. A
fig. B
fig. C
