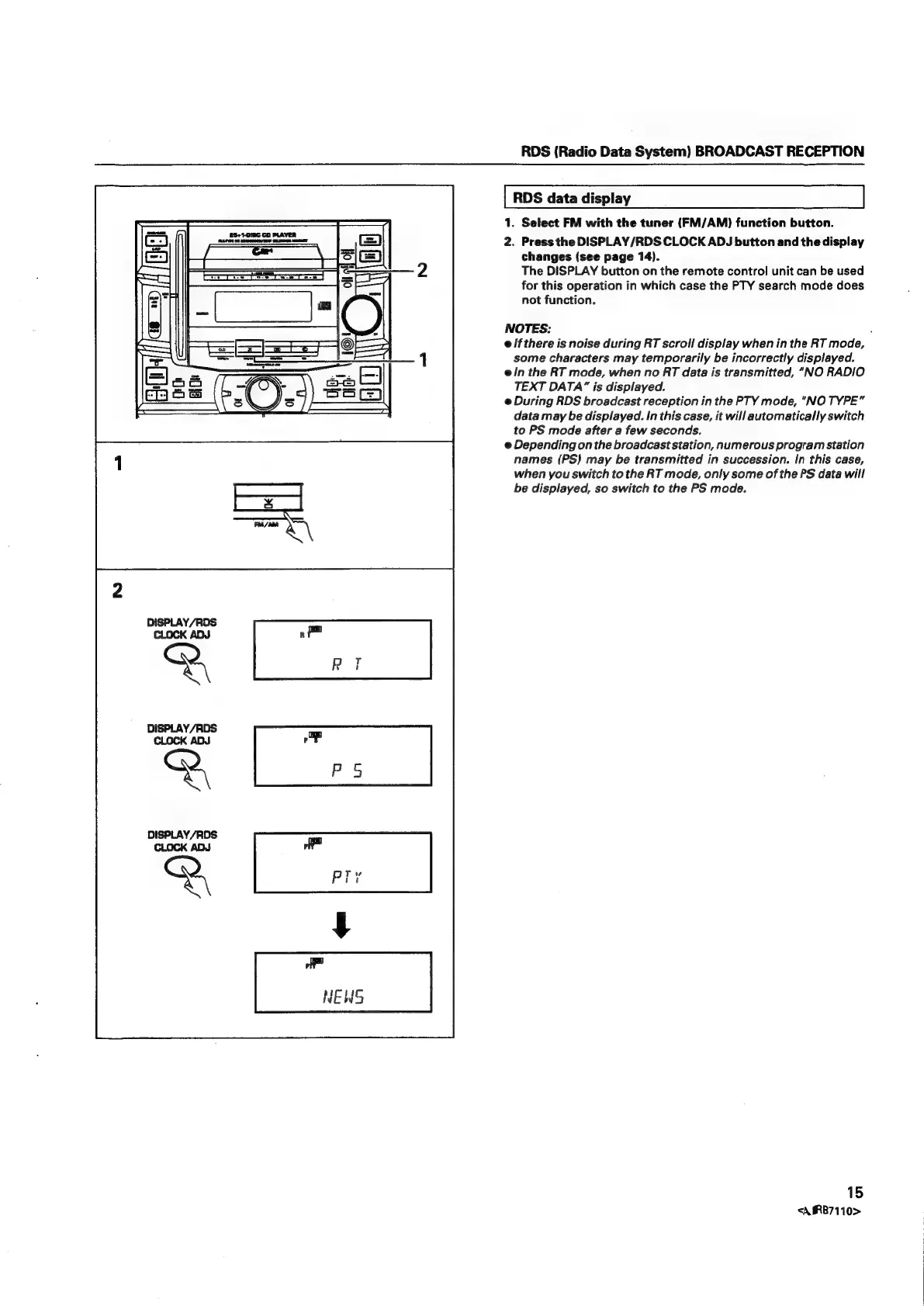

Pioneer XR-P770F Operating Instructions

RDS (Radio Data System) BROADCAST RECEPTION
RDS data display
1. Select FM with the tuner (FM/AM) function button.
2. Press the DISPLAY/RDS CLOCK ADJ button and the display
changes (see page 14).
The DISPLAY button on the remote control unit can be used
for this operation in which case the PTY search mode does
not function.
NOTES: :
e if there is noise during RT scroll display when in the RT mode,
some characters may temporarily be incorrectly displayed.
e/n the RT mode, when no RT data is transmitted, “NO RADIO
TEXT DATA” is displayed.
e During RDS broadcast reception in the PTY mode, “NO TYPE”
data may be displayed. In this case, it will automatically switch
to PS mode after a few seconds.
e Depending on the broadcast station, numerous program station
names (PS) may be transmitted in succession. In this case,
when you switch to the RT mode, only some of the PS data will
be displayed, so switch to the PS mode.
