Pioneer XR-P770F Operating Instructions

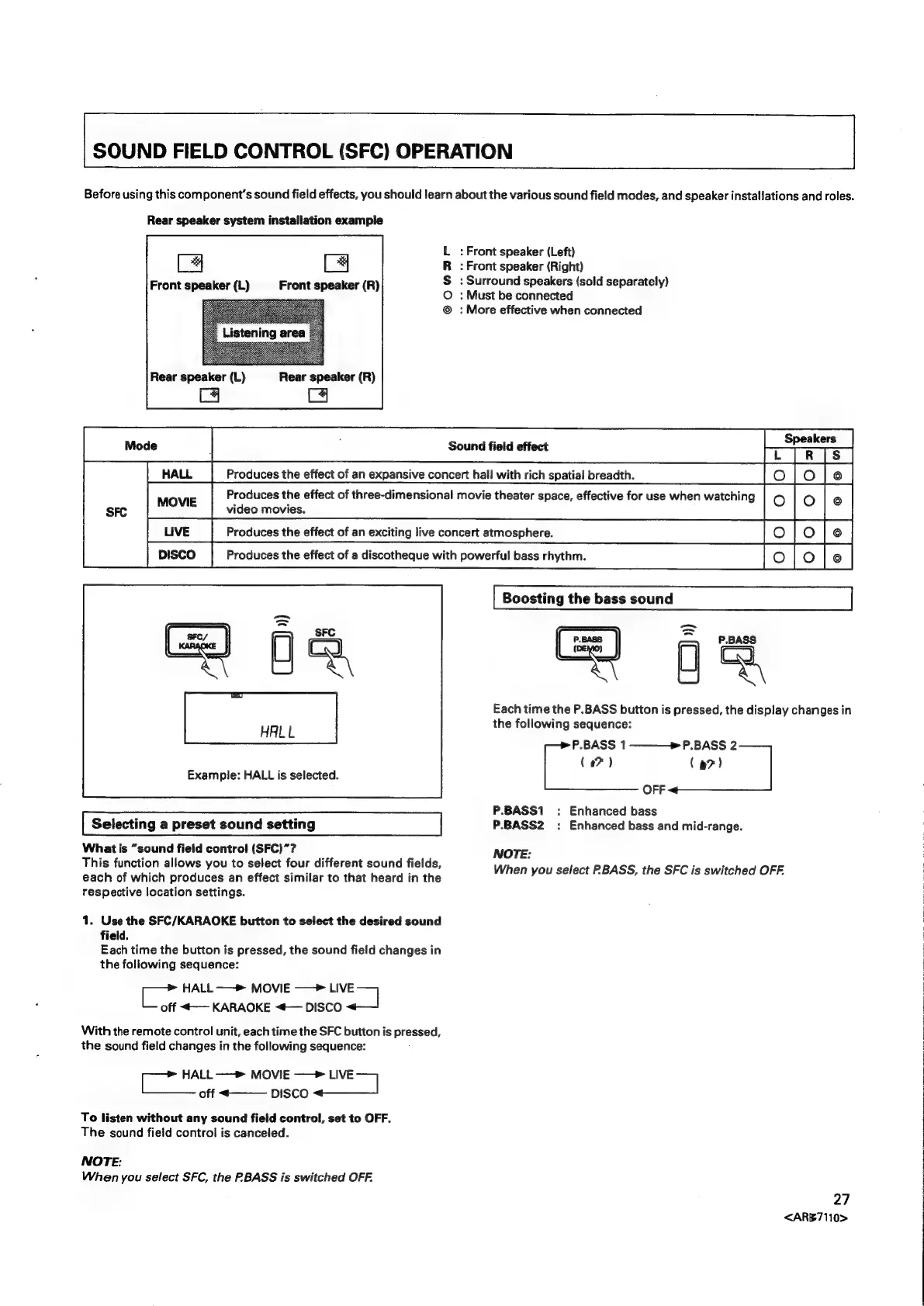

SOUND FIELD CONTROL (SFC) OPERATION
Before using this component's sound field effects, you should learn about the various sound field modes, and speaker installations and roles.
Rear speaker system installation example
La [4
Front speaker (L) Front speaker (R)
: Front speaker (Left)
: Front speaker (Right)
: Surround speakers (sold separately)
: Must be connected
: More effective when connected
oovar
Listening area
Rear anaaiee (L) Rear speaker (R)
4
Produces the effect of an expansive concert hall with rich spatial breadth.
Produces the effect of three-dimensional movie theater space, effective for use when watching
video movies.
Produces the effect of an exciting live concert atmosphere.
Produces the effect of a discotheque with powerful bass rhythm.
Each time the P.BASS button is pressed, the display changes in
the following sequence:
HALL
P.BASS 1———» P.BASS 2
(a?) ( a?)
Example: HALL is selected.
OFF
P.BASS1_ : Enhanced bass
Selecting a preset sound setting P.BASS2_ : Enhanced bass and mid-range.
Whatis “sound field control (SFC)”? NOTE:
This function allows you to select four different sound fields, When you select PBASS, the SFC is switched OFF
each of which produces an effect similar to that heard in the
respective location settings.
=
. Use the SFC/KARAOKE button to select the desired sound
field.
Each time the button is pressed, the sound field changes in
the following sequence:
iE HALL —> MOVIE —~ LIVE
off «— KARAOKE <— DISCO
With the remote control unit, each time the SFC button is pressed,
the sound field changes in the following sequence:
HALL —® MOVIE — LIVE
Maier eas eerie
To listen without any sound field control, set to OFF.
The sound fieid control is canceled.
NOTE:
When you select SFC, the PBASS is switched OFF.
27
<ARE7110>

Pioneer XR-P770F Specifications

Amplifier Section

continuous power output (RMS)	100 W + 100 W
channels	2 channels (stereo)
continuous power output (DIN)	80 W + 80 W

Power

power requirements	AC 230 V, 50/60 Hz
power consumption	530 W
music power (DIN)	115 W + 115 W

FM Tuner Section

reception frequencies (FM)	87.5 MHz to 108 MHz
reception frequencies (AM)	531 kHz to 1, 602 kHz (9 kHz step)
frequency response (Type II tape)	35 Hz to 15, 000 Hz +6 dB

Weight and Dimensions

external dimensions	260 (W) x 310 (H) x 371.5 (D) mm
weight	11.5 kg
antenna input	75 Ω unbalanced
