Pioneer XR-P770F Operating Instructions

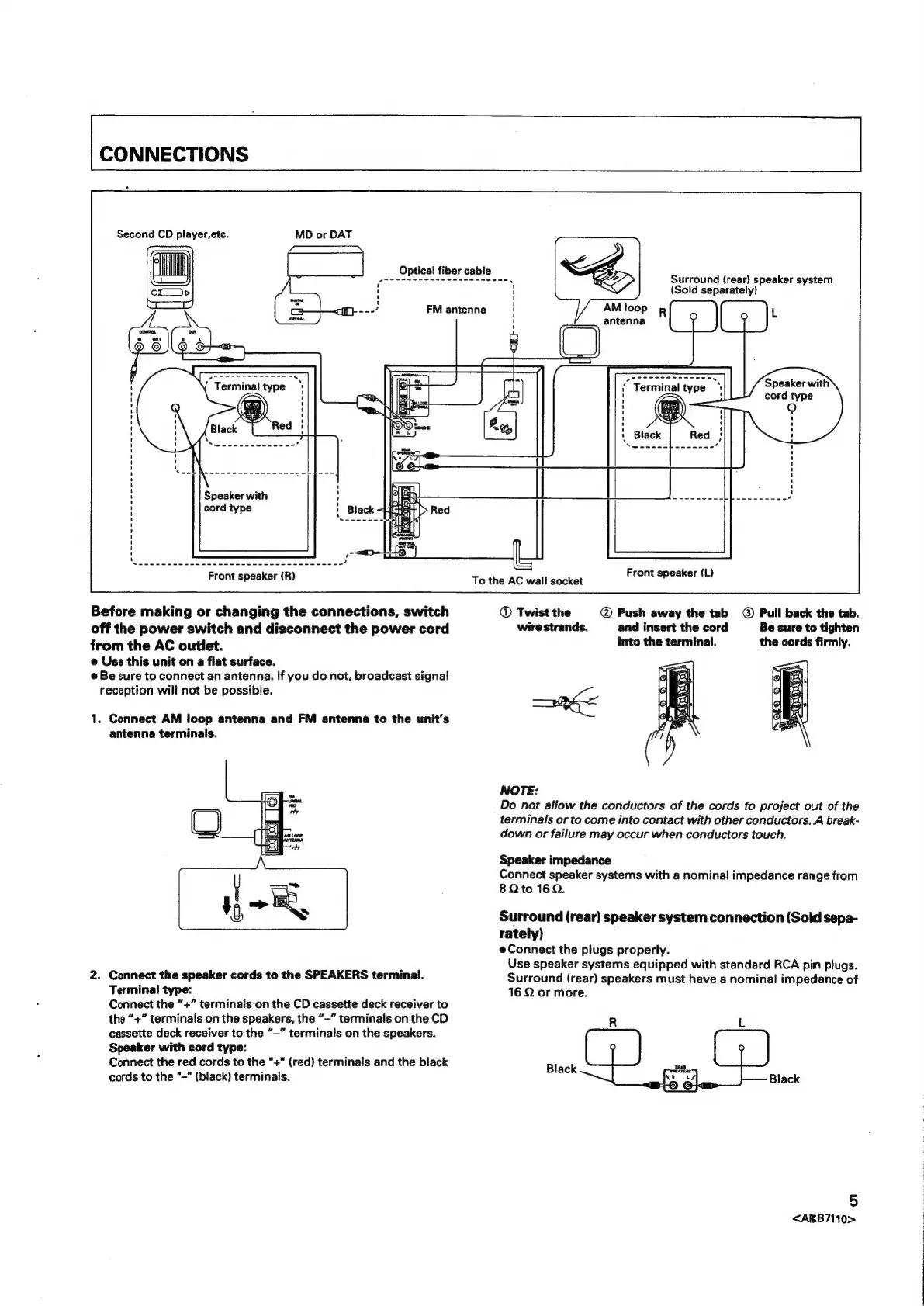

CONNECTIONS
Second CD player,etc. MD or DAT
Optical fiber cable
Speaker with
cord type
Front speaker (R)
Before making or changing the connections, switch
off the power switch and disconnect the power cord
from the AC outlet.
@ Use this unit on a flat surface.
@ Be sure to connect an antenna. If you do not, broadcast signal
reception will not be possible.
G
1. Connect AM loop antenna and FM antenna to the unit's
antenna terminals.
2. Connect the speaker cords to the SPEAKERS terminal.
Terminal type:
Connect the “+” terminals on the CD cassette deck receiver to
the “+” terminals on the speakers, the “—” terminals on the CD
cassette deck receiver to the “—” terminals on the speakers.
Speaker with cord type:
Connect the red cords to the "+" (red) terminals and the black
cords to the "-" (black) terminals.
Surround (rear) speaker system
(Sold separately)
AM toop
antenna
Speaker with
cord type
Front speaker (L!
To the AC wall socket popes
@® Twist the @ Push away the tab @) Pull back the tab.
wire strands. and insert the cord Be sure to tighten
into the terminal. the cords firmly.
mak
NOTE:
Do not allow the conductors of the cords to project out of the
terminals or to come into contact with other conductors, A break-
down or failure may occur when conductors touch.
Speaker impedance
Connect speaker systems with a nominal impedance range from
BQto 16Q.
Surround (rear) speaker system connection (Sold sepa-
rately)
eConnect the plugs properly.
Use speaker systems equipped with standard RCA pin plugs.
Surround (rear) speakers must have a nominal impedance of
16 Q or more.
Black tithe
os Black
5
<ARB7110>

Pioneer XR-P770F Specifications

Amplifier Section

continuous power output (RMS)	100 W + 100 W
channels	2 channels (stereo)
continuous power output (DIN)	80 W + 80 W

Power

power requirements	AC 230 V, 50/60 Hz
power consumption	530 W
music power (DIN)	115 W + 115 W

FM Tuner Section

reception frequencies (FM)	87.5 MHz to 108 MHz
reception frequencies (AM)	531 kHz to 1, 602 kHz (9 kHz step)
frequency response (Type II tape)	35 Hz to 15, 000 Hz +6 dB

Weight and Dimensions

external dimensions	260 (W) x 310 (H) x 371.5 (D) mm
weight	11.5 kg
antenna input	75 Ω unbalanced
