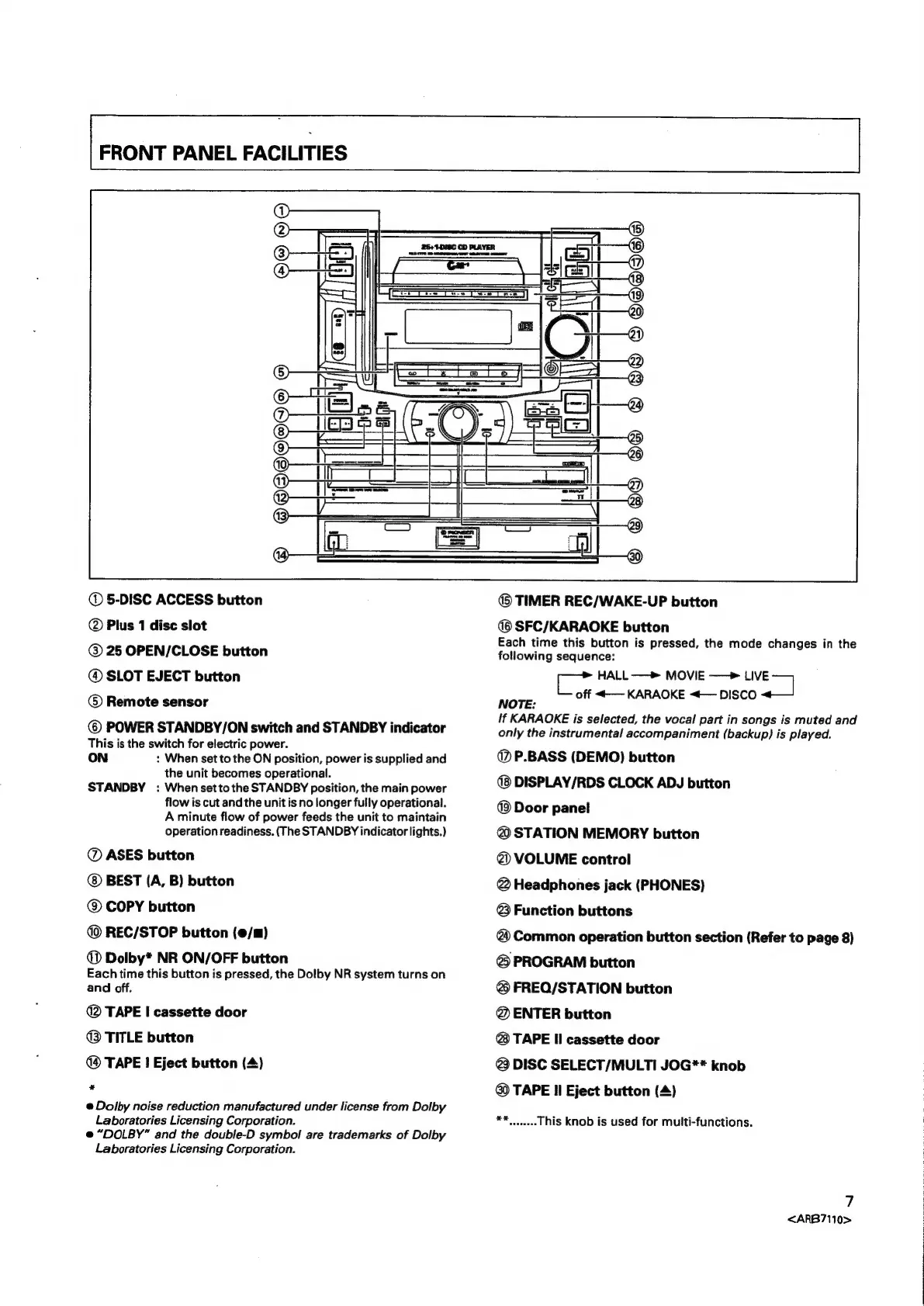

FRONT PANEL FACILITIES
© 5-DISC ACCESS button
@ Plus 1 disc slot
@ 25 OPEN/CLOSE button
@ SLOT EJECT button
© Remote sensor
© POWER STANDBY/ON switch and STANDBY indicator
This is the switch for electric power.
ON : When set to the ON position, power is supplied and
the unit becomes operational.
STANDBY : Whensettothe STANDBY position, the main power
flow is cut and the unit is no longer fully operational.
A minute flow of power feeds the unit to maintain
operation readiness. (The STANDBY indicator lights.)
@ ASES button
BEST (A, B) button
@ COPY button
@ REC/STOP button (e/m)
@ Dolby* NR ON/OFF button
Each time this button is pressed, the Dolby NR system turns on
and off.
@® TAPE I cassette door
@® TITLE button
©@ TAPE | Eject button (4)
*
@ Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
© “DOLBY” and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
@® TIMER REC/WAKE-UP button
(® SFC/KARAOKE button
Each time this button is pressed, the mode changes in the
following sequence:
= HALL ——> MOVIE ——» LIVE
off <—— KARAOKE <— DISCO
NOTE:
lf KARAOKE is selected, the vocal part in songs is muted and
only the instrumental accompaniment (backup) is played.
© P.BASS (DEMO) button
@® DISPLAY/RDS CLOCK ADJ button
@® Door panel
@ STATION MEMORY button
@ VOLUME control
@ Headphones jack (PHONES)
@ Function buttons
@ Common operation button section (Refer to page 8)
@ PROGRAM button
@ FREQ/STATION button
@ ENTER button
@ TAPE Il cassette door
@ DISC SELECT/MULTI JOG** knob
@ TAPE II Eject button (4)
bacrerenne This knob is used for multi-functions.
7
