Pioneer XR-P770F Operating Instructions

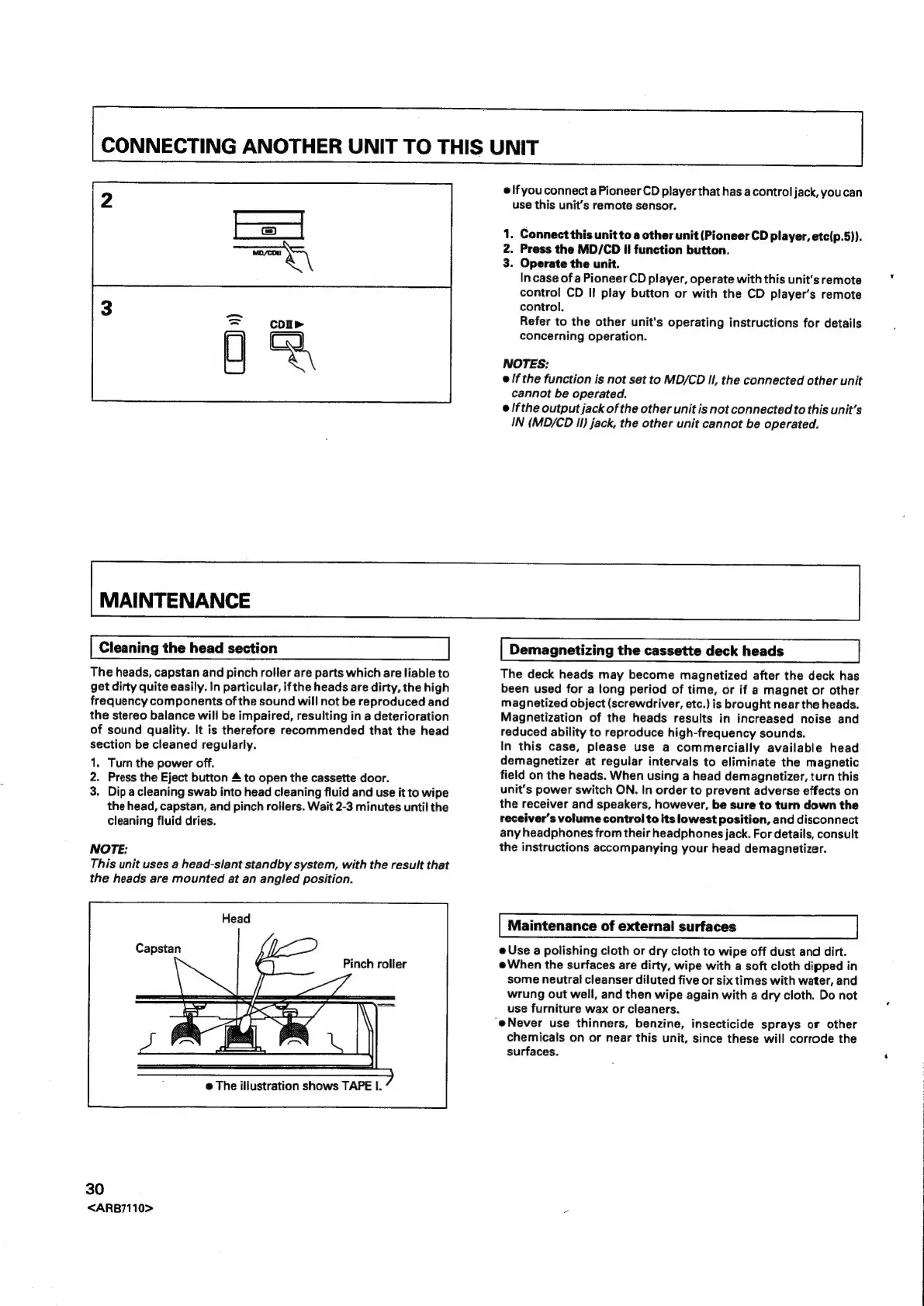

CONNECTING ANOTHER UNIT TO THIS UNIT
MAINTENANCE
Cleaning the head section
The heads, capstan and pinch roller are parts which are liable to
get dirty quite easily. In particular, ifthe heads are dirty, the high
frequency components of the sound will not be reproduced and
the stereo balance will be impaired, resulting in a deterioration
of sound quality. It is therefore recommended that the head
section be cleaned regularly.
1. Turn the power off.
2. Press the Eject button 4 to open the cassette door.
3. Dip acleaning swab into head cleaning fluid and use it to wipe
the head, capstan, and pinch rollers. Wait 2-3 minutes until the
cleaning fluid dries.
NOTE:
This unit uses a head-slant standby system, with the result that
the heads are mounted at an angled position.
Pinch roller
e The illustration shows TAPE I.
30
<ARB7110>
e!f you connect a Pioneer CD player that has acontrol jack, youcan
use this unit’s remote sensor.
1, Connect this unit to a other unit (Pioneer CD player, ete(p.5)).
2. Press the MD/CD il function button.
3. Operate the unit.
In case of a Pioneer CD player, operate with this unit's remote
control CD I! play button or with the CD player’s remote
control.
Refer to the other unit's operating instructions for details
concerning operation.
NOTES:
e /f the function is not set to MD/CD Il, the connected other unit
cannot be operated.
e /f the output jack of the other unit is not connected to this unit's
IN (MD/CD II) jack, the other unit cannot be operated.
Demagnetizing the cassette deck heads
The deck heads may become magnetized after the deck has
been used for a long period of time, or if a magnet or other
magnetized object (screwdriver, etc.) is brought near the heads.
Magnetization of the heads results in increased noise and
reduced ability to reproduce high-frequency sounds.
In this case, please use a commercially available head
demagnetizer at regular intervals to eliminate the magnetic
field on the heads. When using a head demagnetizer, turn this
unit’s power switch ON. In order to prevent adverse effects on
the receiver and speakers, however, be sure to turn down the
receiver's volume control to its lowest position, and disconnect
any headphones from their headphones jack. For details, consult
the instructions accompanying your head demagnetizer.
Maintenance of external surfaces
e Use a polishing cloth or dry cloth to wipe off dust and dirt.
@When the surfaces are dirty, wipe with a soft cloth dipped in
some neutral cleanser diluted five or six times with water, and
wrung out well, and then wipe again with a dry cloth. Do not
use furniture wax or cleaners.
‘@Never use thinners, benzine, insecticide sprays or other
chemicals on or near this unit, since these will corrode the
surfaces.

Pioneer XR-P770F Specifications

Amplifier Section

continuous power output (RMS)	100 W + 100 W
channels	2 channels (stereo)
continuous power output (DIN)	80 W + 80 W

Power

power requirements	AC 230 V, 50/60 Hz
power consumption	530 W
music power (DIN)	115 W + 115 W

FM Tuner Section

reception frequencies (FM)	87.5 MHz to 108 MHz
reception frequencies (AM)	531 kHz to 1, 602 kHz (9 kHz step)
frequency response (Type II tape)	35 Hz to 15, 000 Hz +6 dB

Weight and Dimensions

external dimensions	260 (W) x 310 (H) x 371.5 (D) mm
weight	11.5 kg
antenna input	75 Ω unbalanced
