Pioneer XR-P770F Operating Instructions

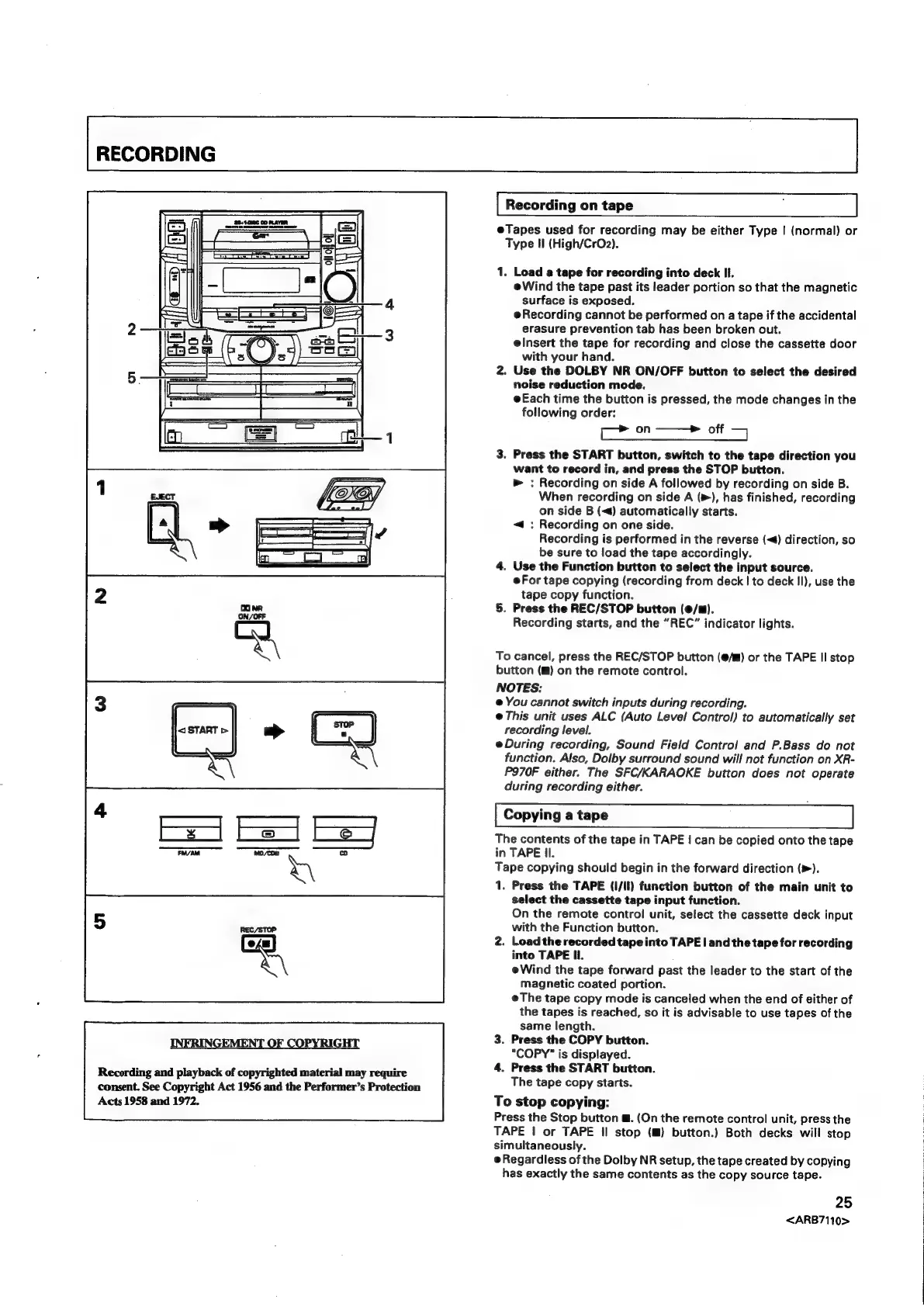

RECORDING
INERINGEMENT OF COPYRIGHT
Recording and playback of copyrighted material may require
consent. See Copyright Act 1956 and the Performer’s Protection
Acts 1958 and 1972.
Recording on tape f
eTapes used for recording may be either Type | (normal) or
Type Hl (High/CrO2).
1. Load a tape for recording into deck Il.
eWind the tape past its leader portion so that the magnetic
surface is exposed.
Recording cannot be performed on a tape if the accidental
erasure prevention tab has been broken out.
elnsert the tape for recording and close the cassette door
with your hand.
2. Use the DOLBY NR ON/OFF button to select the desired
noise reduction mode.
e@Each time the button is pressed, the mode changes in the
following order:
con ——> off >
3. Press the START button, switch to the tape direction you
want to record in, and press the STOP button.
» : Recording on side A followed by recording on side B.
When recording on side A (m), has finished, recording
on side B (<4) automatically starts.
<4: Recording on one side.
Recording is performed in the reverse (4) direction, so
be sure to load the tape accordingly.
4. Use the Function button to select the input source.
eFor tape copying (recording from deck | to deck II), use the
tape copy function.
5. Press the REC/STOP button (@/m).
Recording starts, and the “REC” indicator lights.
To cancel, press the REC/STOP button (@/™) or the TAPE II stop
button (™) on the remote control.
NOTES:
e You cannot switch inputs during recording.
@ This unit uses ALC (Auto Level Control) to automatically set
recording level.
eDuring recording, Sound Field Control and P.Bass do not
function. Also, Dolby surround sound will not function on XR-
P970F either. The SFC/KARAOKE button does not operate
during recording either.
Copying a tape
The contents of the tape in TAPE | can be copied onto the tape
in TAPE Il.
Tape copying should begin in the forward direction (>).
1. Press the TAPE (I/II) function button of the main unit to
select the cassette tape input function.
On the remote control unit, select the cassette deck input
with the Function button.
2. Load the recorded tape into TAPE | and the tape for recording
into TAPE Il.
eWind the tape forward past the leader to the start of the
magnetic coated portion.
eThe tape copy mode is canceled when the end of either of
the tapes is reached, so it is advisable to use tapes of the
same length.
3. Press the COPY button.
"COPY" is displayed.
4. Press the START button.
The tape copy starts.
To stop copying:
Press the Stop button @. (On the remote control unit, press the
TAPE
!
or
TAPE
Il
stop
(m)
button.)
Both
decks
will
stop
simultaneously.
e Regardless of the Dolby NR setup, the tape created by copying
has exactly the same contents as the copy source tape.
25
<ARB7110>

Pioneer XR-P770F Specifications

Amplifier Section

continuous power output (RMS)	100 W + 100 W
channels	2 channels (stereo)
continuous power output (DIN)	80 W + 80 W

Power

power requirements	AC 230 V, 50/60 Hz
power consumption	530 W
music power (DIN)	115 W + 115 W

FM Tuner Section

reception frequencies (FM)	87.5 MHz to 108 MHz
reception frequencies (AM)	531 kHz to 1, 602 kHz (9 kHz step)
frequency response (Type II tape)	35 Hz to 15, 000 Hz +6 dB

Weight and Dimensions

external dimensions	260 (W) x 310 (H) x 371.5 (D) mm
weight	11.5 kg
antenna input	75 Ω unbalanced
