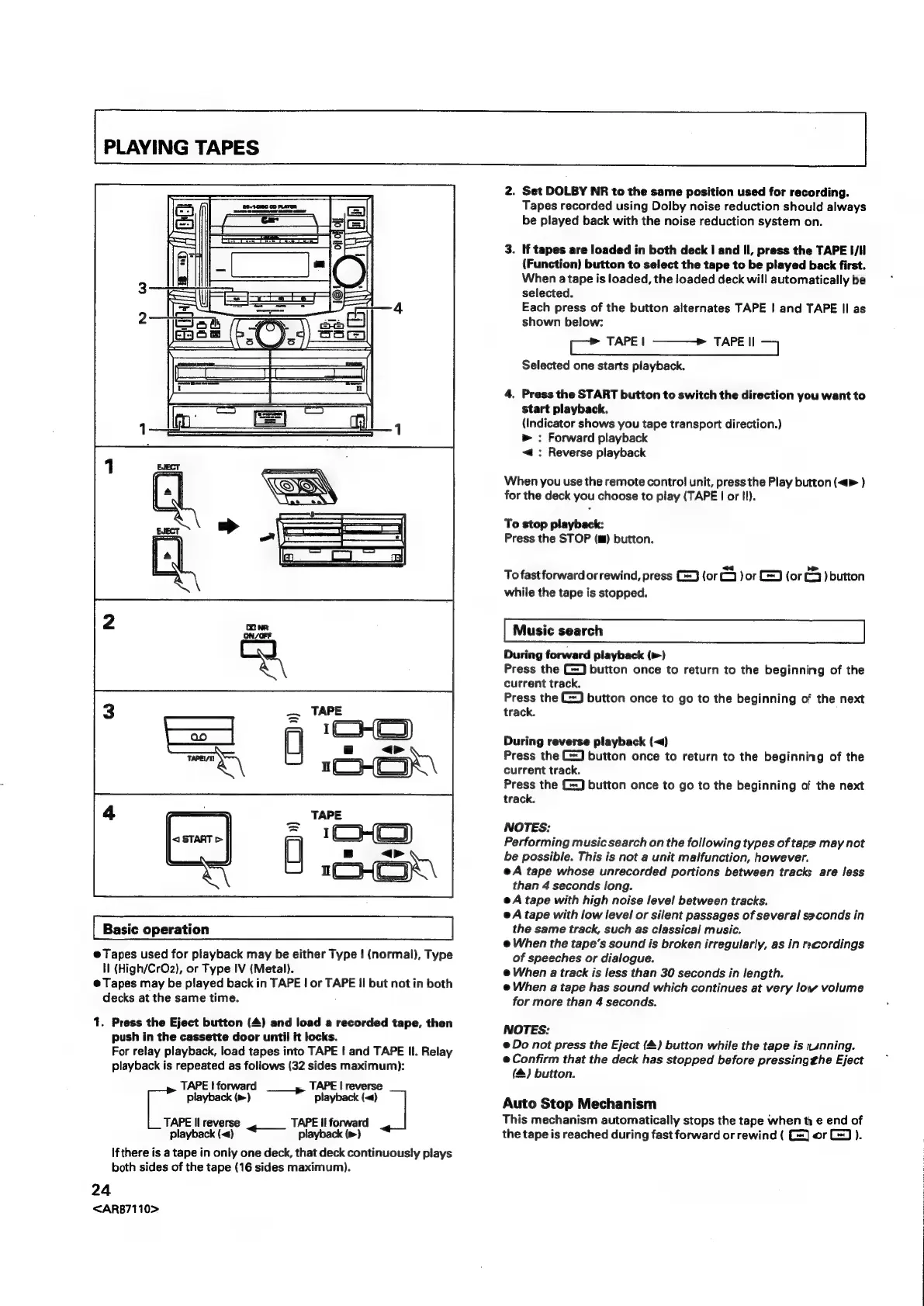

Pioneer XR-P770F Operating Instructions

PLAYING TAPES
Basic operation
e@ Tapes used for playback may be either Type | (normal), Type
Il (High/CrO2), or Type IV (Metal).
®@ Tapes may be played back in TAPE | or TAPE II but not in both
decks at the same time.
—_
. Press the Eject button (4) and load a recorded tape, then
push in the cassette door until it locks.
For relay playback, load tapes into TAPE | and TAPE Il. Relay
playback is repeated as follows (32 sides maximum):
TAPE | forward p TAPE | reverse
Playback (>) playback (~<«)
TAPE Il reverse TAPE Il forward
playback (-) playback (>)
If there is a tape in only one deck, that deck continuously plays
both sides of the tape (16 sides maximum).
24
<ARB7110>
2. Set DOLBY NR to the same position used for recording.
Tapes recorded using Dolby noise reduction should always
be played back with the noise reduction system on.
3. If tapes are loaded in both deck | and Il, press the TAPE I/l
(Function) button to select the tape to be played back first.
When atape is loaded, the loaded deck will automatically be
selected.
Each press of the button alternates TAPE | and TAPE II as
shown below:
i TAPE | ———-> TAPE Il i
Selected one starts playback.
4. Press the START button to switch the direction you want to
start playback.
(Indicator shows you tape transport direction.)
> : Forward playback
<@: Reverse playback
When you use the remote control unit, press the Play button (<> )
for the deck you choose to play (TAPE | or Il).
To stop playback:
Press the STOP (m) button.
To fast forward or rewind, press C=) (or © )or (=) (or C3) button
while the tape is stopped.
Music search
During forward playback (>)
Press the C=) button once to return to the beginning of the
current track.
Press the C=) button once to go to the beginning of the next
track.
During reverse playback (<<)
Press the C=) button once to return to the beginning of the
current track.
Press the C=) button once to go to the beginning of the next
track.
NOTES:
Performing music search on the following types of tape may not
be possible. This is not a unit malfunction, however.
@A tape whose unrecorded portions between tracks are less
than 4 seconds long.
eA tape with high noise level between tracks.
eA tape with low level or silent passages of several seconds in
the same track, such as classical music.
@ When the tape’s sound is broken irregularly, as in recordings
of speeches or dialogue.
e When a track is less than 30 seconds in length.
@ When a tape has sound which continues at very lov volume
for more than 4 seconds.
NOTES:
e Do not press the Eject (&) button while the tape is Lanning.
e Confirm that the deck has stopped before pressingthe Eject
(&) button.
Auto Stop Mechanism
This mechanism automatically stops the tape when th e end of
the tape is reached during fast forward or rewind ( C=) or G3).

Pioneer XR-P770F Specifications

Amplifier Section

continuous power output (RMS)	100 W + 100 W
channels	2 channels (stereo)
continuous power output (DIN)	80 W + 80 W

Power

power requirements	AC 230 V, 50/60 Hz
power consumption	530 W
music power (DIN)	115 W + 115 W

FM Tuner Section

reception frequencies (FM)	87.5 MHz to 108 MHz
reception frequencies (AM)	531 kHz to 1, 602 kHz (9 kHz step)
frequency response (Type II tape)	35 Hz to 15, 000 Hz +6 dB

Weight and Dimensions

external dimensions	260 (W) x 310 (H) x 371.5 (D) mm
weight	11.5 kg
antenna input	75 Ω unbalanced
