Pioneer XR-P770F Operating Instructions

CONVENIENT CD FUNCTIONS
20
<ARB7110>

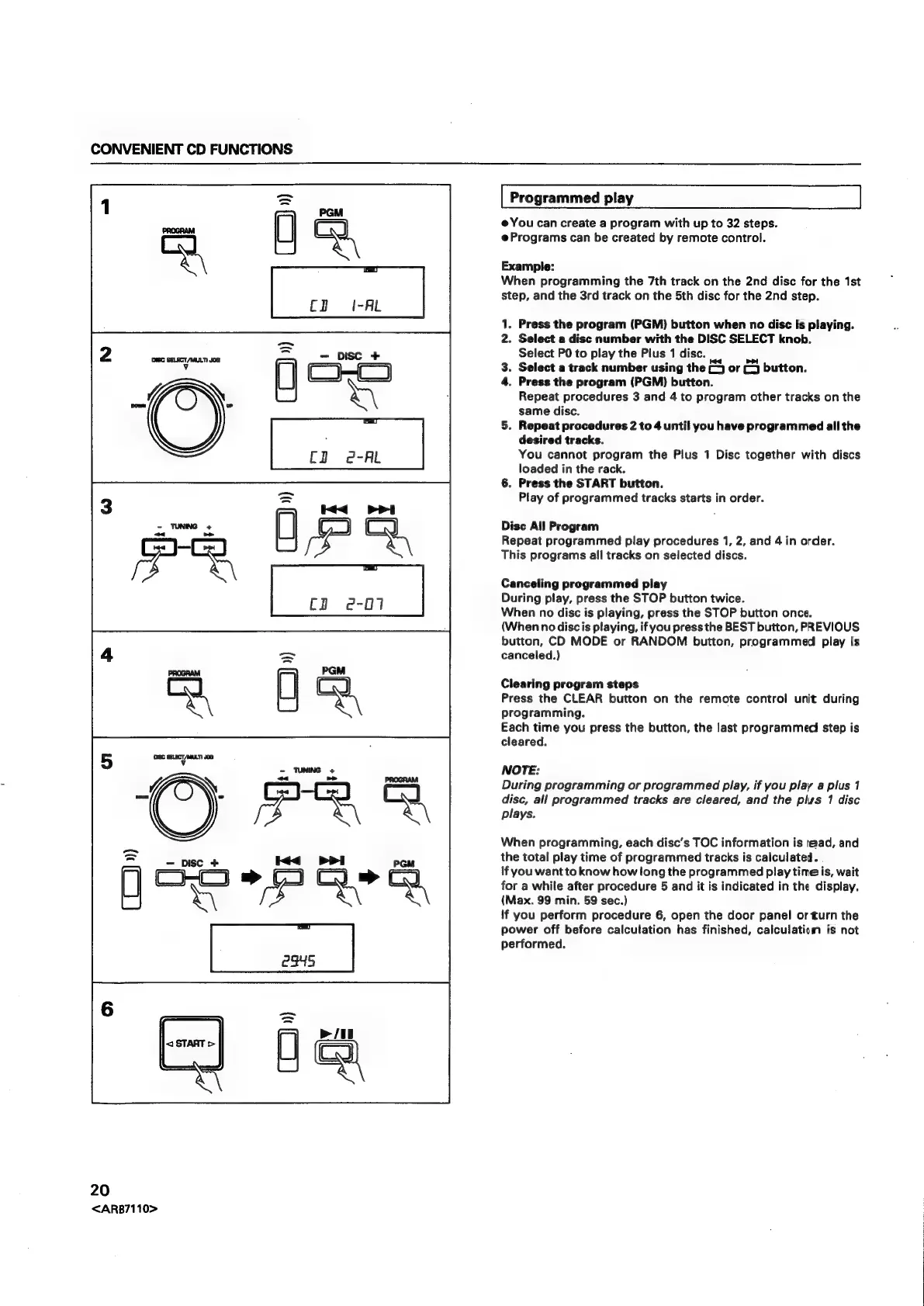

Programmed play
e@ You can create a program with up to 32 steps.
@Programs can be created by remote control.
Example:
When programming the 7th track on the 2nd disc for the 1st
step, and the 3rd track on the 5th disc for the 2nd step.
. Press the program (PGM) button when no disc is playing.
. Select a disc number with the DISC SELECT knob.
Select PO to play the Plus 1 disc. ee ne
. Select a track number using the C5 or C9 button.
. Press the program (PGM) button.
Repeat procedures 3 and 4 to program other tracks on the
same disc.
5. Repeat procedures 2 to 4 until you have programmed all the
desired tracks.
You cannot program the Plus 1 Disc together with discs
loaded in the rack.
6. Press the START button.
Play of programmed tracks starts in order.
N=
> w
Disc All Program
Repeat programmed play procedures 1, 2, and 4 in order.
This programs all tracks on selected discs.
Canceling programmed play
During play, press the STOP button twice.
When no disc is playing, press the STOP button once.
(When nodiscis playing, if you pressthe BEST button, PREVIOUS
button, CD MODE or RANDOM button, programmed play is
canceled.)
Clearing program steps
Press the CLEAR button on the remote control unit during
programming.
Each time you press the button, the last programmed step is
cleared.
NOTE:
During programming or programmed play, if you play a plus 1
disc, all programmed tracks are cleared, and the pls 1 disc
plays.
When programming, each disc’s TOC information is tead, and
the total play time of programmed tracks is calculated.
If you want to know how long the programmed play time is, wait
for a while after procedure 5 and it is indicated in the display.
(Max. 99 min. 59 sec.)
if you perform procedure 6, open the door panel or turn the
power off before calculation has finished, calculation is not
performed.

Pioneer XR-P770F Specifications

Amplifier Section

continuous power output (RMS)	100 W + 100 W
channels	2 channels (stereo)
continuous power output (DIN)	80 W + 80 W

Power

power requirements	AC 230 V, 50/60 Hz
power consumption	530 W
music power (DIN)	115 W + 115 W

FM Tuner Section

reception frequencies (FM)	87.5 MHz to 108 MHz
reception frequencies (AM)	531 kHz to 1, 602 kHz (9 kHz step)
frequency response (Type II tape)	35 Hz to 15, 000 Hz +6 dB

Weight and Dimensions

external dimensions	260 (W) x 310 (H) x 371.5 (D) mm
weight	11.5 kg
antenna input	75 Ω unbalanced
