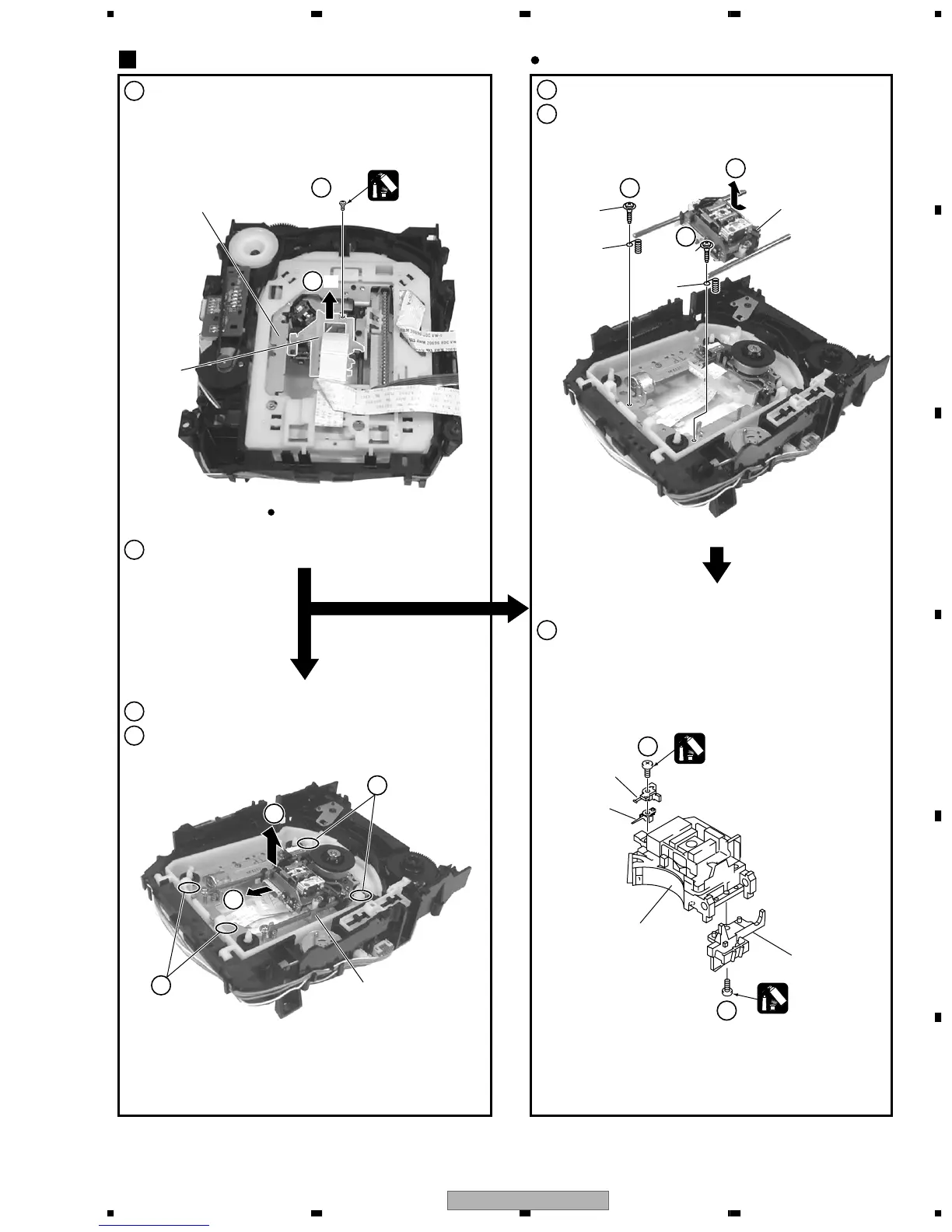

Traverse Mechanism Assy-S
5
When Removing The Pickup Assy-S
1
2
3
4
Remove the FFC Holder with the state which Flexible Cable
was atatched. (Screw × 1)
FFC Holder
Traverse Mechanism Assy-S
Traverse Mechanism Assy-S
Unhook ( × 4)
Remove the Traverse Mechanism Assy-S
3
4
5
Remove two Skew Screws and two Skew Springs
Remove the Pickup Assy-s
Remove the Pickup Flexible Cable
Pickup Assy-S
1
× 2
× 2
Bottom View
Cautions :
Screw is locked with Silicone Adhesive.
Please lock it with Silicone Adhesive when installs it.
Cautions :
Screw is locked with Silicone Adhesive.
Please lock it with Silicone Adhesive when installs it.
Silicone
Adhesuve
GEM1037
-1
-2
1
3
3
5
5
4
4
2
3
3
Skew
Spring
Skew
Spring
Skew
Screw
Skew
Screw
Pickup Assy-S
Joint
Slider
Hold Spring
Pickup Assy-S
Remove two Screws
Silicone Adhesive
GEM1037
Silicone Adhesive
GEM1037
