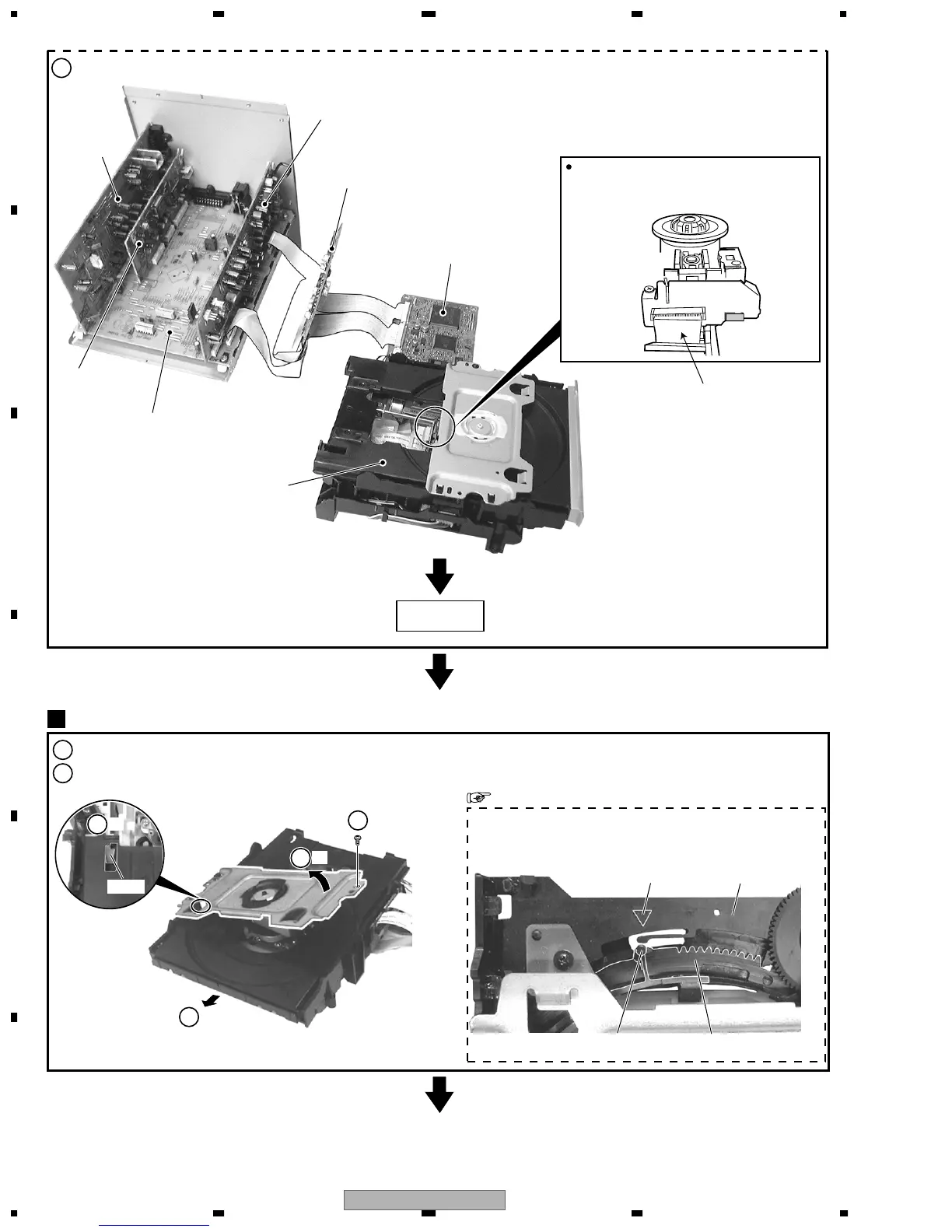

Styling like figure below.
Diagnosis
AF Assy
DECK Assy
DVD IF Assy
DVDM Assy
IF Assy
LOADING MECHA Assy
DSP Assy
(XV-EV51 Only)
Rear View
Turn the Pickup Short SW
before Pickup Flexible Cable removed.
" before Pickup Flexible cable removed
make short by solder "
Short
1
Remove the Bridge (screw ×1).
2
Pull out the Tray and remove it while unhooking a hook.
Tray
4
1
-1
1
-2
2
-1
2
-2
Loading Base
Triangle Mark
Drive Cam
Pin
Hook
Caution in the Tray Insertion
In the Tray insertion, insert it after matching a triangle mark
of the Loading Base and a position of pin of the Drive Cam.
