Pixsys ATR620 User Manual
5
of 1
of 1 rating
54 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
68
27.4

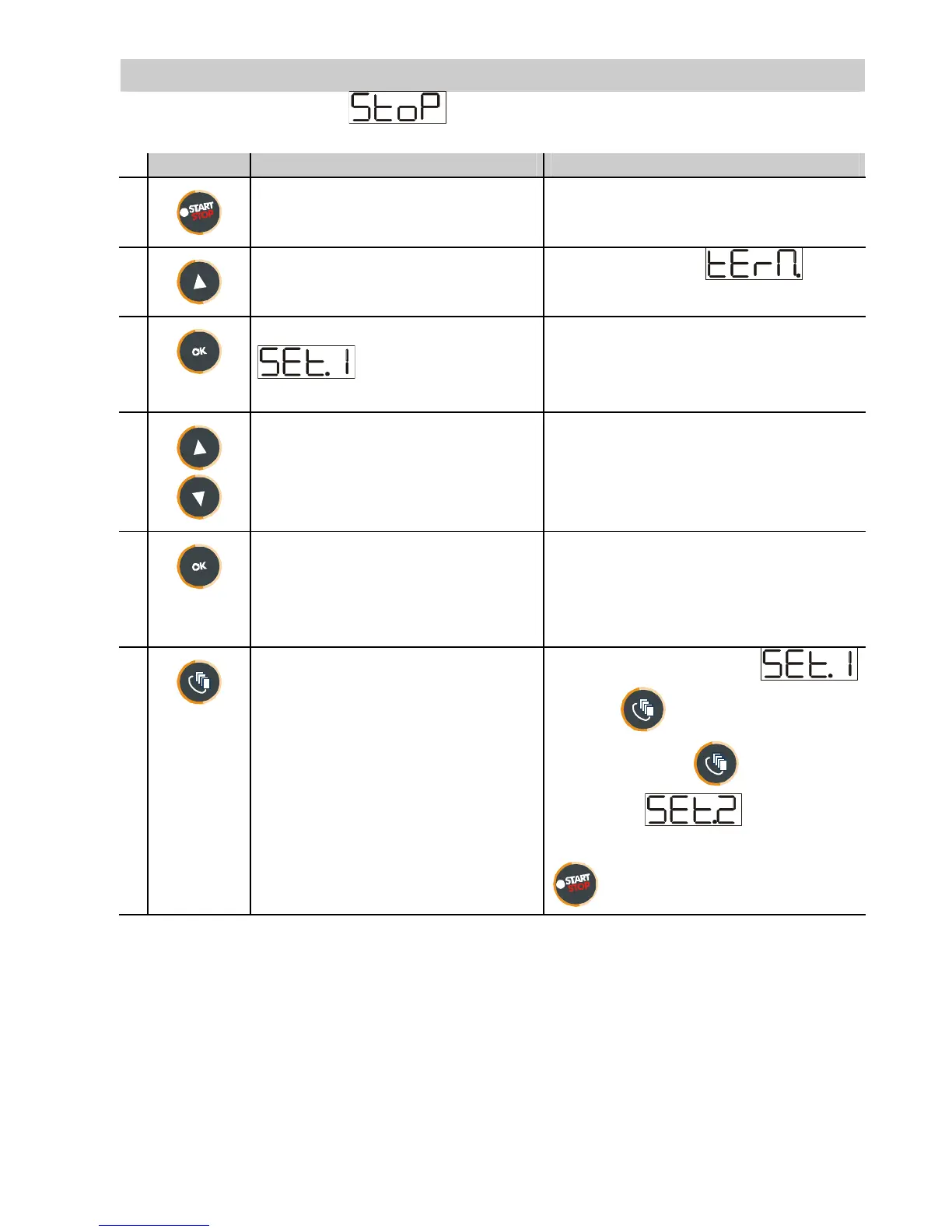

Function SIMPLE CONTROLLER in STOP mode.
Set the controller to
mode
.
Press
Display
Do
1
Red display shows
available options
2
Increase until
is
visualized
3
Red display shows
, Green display
shows setpoin
t value.
4
Increase or decrease
setpoint value
Enter required setpoint
value.
5
The controller activates
the output to hold the
programmed
temperatu
re..
6
Values are visualized
cycling.
To modify setpoint
press
and/or arrow
keys (again
and arrow
keys for
)
To quit the function press
.
16
18
Table of Contents
Table of Contents
2
Introduction
3
Models
3
Ordering Codes
3
Technical Data
4
Main Features
4
Hardware Data
4
Software Data
5
Sizes and Installation
5
Electrical Wirings
6
Wiring Plan
6
Displays and Keys
9
Numerical Indicators (Displays)
9
Leds
10
Keys
10
Programming and Configuration
11
Programming (or Modifying) Cycle Data
11
Start of a Cycle
15
Cycle Start and Programming of Delaied Start
15
Function "Fast Advancement
16
Function SIMPLE CONTROLLER with Cycle in Execution
16
Function SIMPLE CONTROLLER in STOP Mode
17
Auto-Tuning
18
Activate Remote Setpoint by Input 2
18
Activate Remote Setpoint by Serial Input
19
Manual Control of Output
20
Configuration for Installer
21
Modify Numeric Value of Parameter
21
Modify Configuration Parameter
21
Memory Card
23
List of Configuration Parameters
24
Alarms Operating
35
Special Software Functions
37
Recovery of Interrupted Cycle with Automatic Gradient
37
Recovery of Interrupted Cycle with Programmable Gradient
38
Waiting Function
38
Double Loop: Control the Gap between Processes
39
Communication Protocol Modbus RTU
39
Main Features
39
Function Master
40
Word Addresses ATR620
40
Error Messages
42
Application on Industrial Kilns
43
Kiln with Single Thermocouple and SSR Control
43
Kiln with 2 Thermocouples and Contactor Control
45
Kiln with 4 Thermocouples - 4 Units ATR620 Configuration Master/Slave
47
Configuration Table
49
