26 Programming and configuration
There are two different levels of programming :
1. Programming of cycles (for operator/user) means entering of
time/setpoint values for each step/segment of cycle.
2. Configuration (for manufacturer/installer of plant) means entering
of basic parameters (sensor type, outputs functioning, operating of
auxiliary output ..).
26.1 Programming (or modifying) cycle data
With or without starting setpoint, with or without timed
auxiliary outputs ***
***The above specifications underline the possibility given to the
installer (plant’s manufacturer) to choose the sequence of
operations required for the programming of a firing cycle.
This paragraph includes all availa
ble options. In case that the
installer decides to chose a simplified programming with less
options, it is highly recommended to prepare additional/separate
instructions specifying only the selected sequence. The file of this
paragraph is available in the Download section at www.pixsys.net
and it may be used for this purpose.

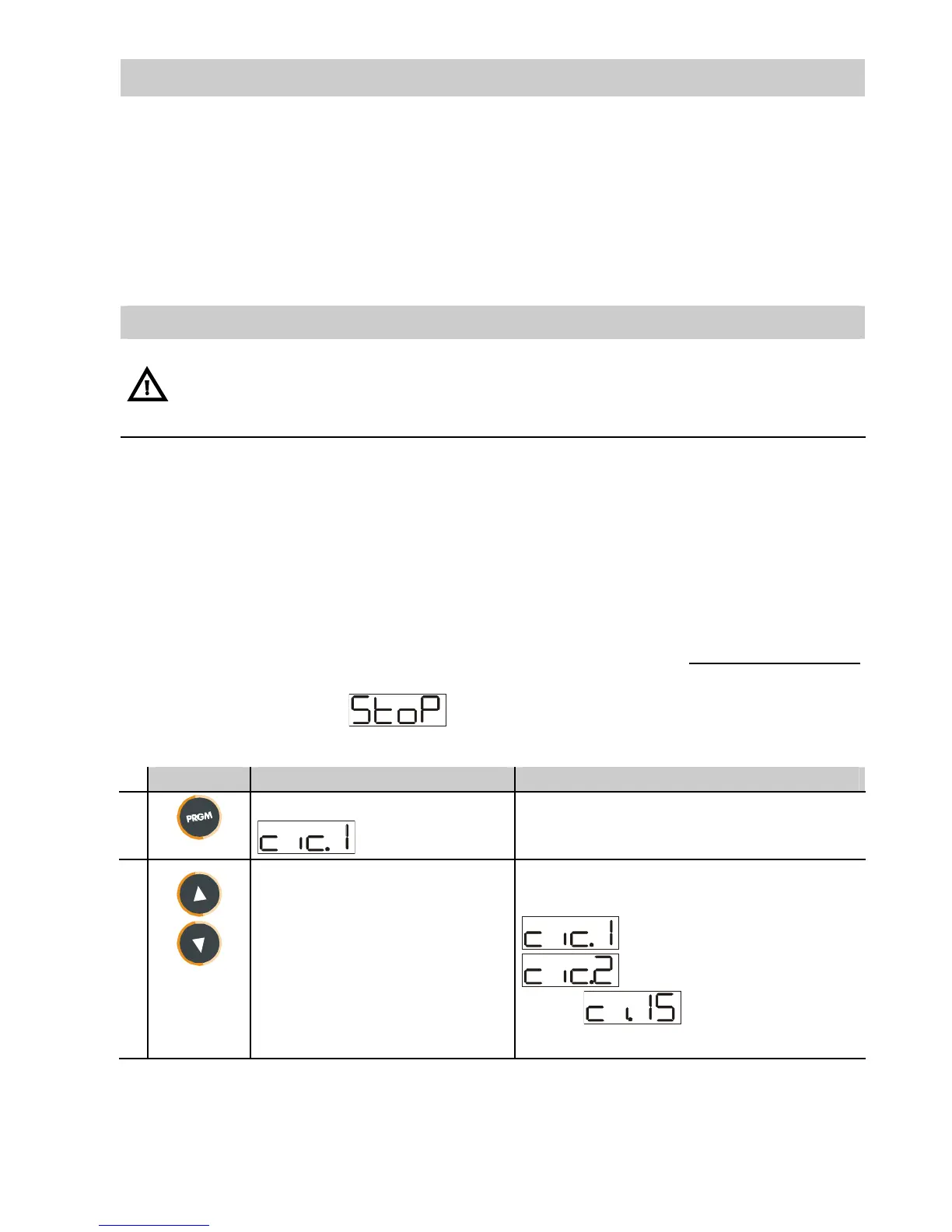

Set the controller to mode and follow the points below
Press Display Do
1
Increase or decrease to
visualize visualizzare
for cycle no.1
for cycl no.2
up to for cycle no.
15.
To Next Page
