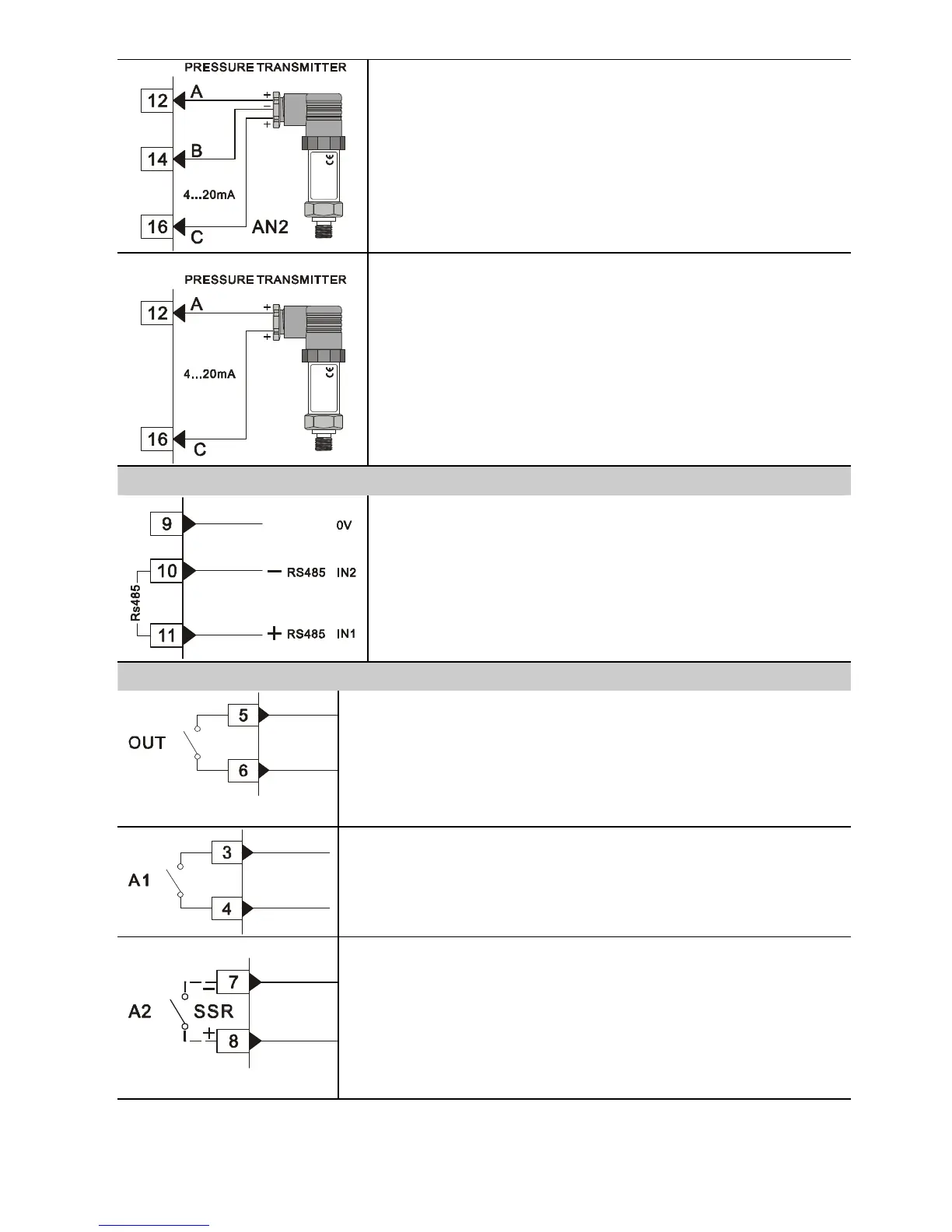

Signals 0/4….20mA with 3-wires sensor
Respect polarity
A=Sensor output
B=Sensor ground
C=Sensor supply
P
:
0
.
.
.
1
0
0
m
b
a
r
P
m
a
x
:
3
b
a
r
T
:
0
.
.
7
0
°
C
O
U
T
:
4
.
.
.
2
0
m
A
I
N
:
9
.
.
.
3
3
V
D
C
Signals 0/4….20mA with 2-wires sensor
Respect polarity
A=Sensor output
C=Sensor supply
Serial or digital input
Configurable as serial input or two digital
inputs
RS485 Modbus
Relay / SSR outputs
Contact capacity 8A/250V~ resistive
Configurable as command or alarm
Configurable as N.O. or N.C.
Contact capacity 8A/250V~ resistive
Configurable as command or alarm
Configurable as N.O. or N.C.
Version ATR620-21ABC:
Capacity 12V/30mA
Version ATR620-22ABC:
Contacts capacity 8A/250V~ resistive
Configurable for control or alarm N.O. or N.C.
