PLANET ECLIPSE GEO CS1 - Ramping and Timing Control

FIG-2
FIG-1
FIG-3
24
GEO:CS1
ELECTRONICS
USER INTERFACE PARAMETERS

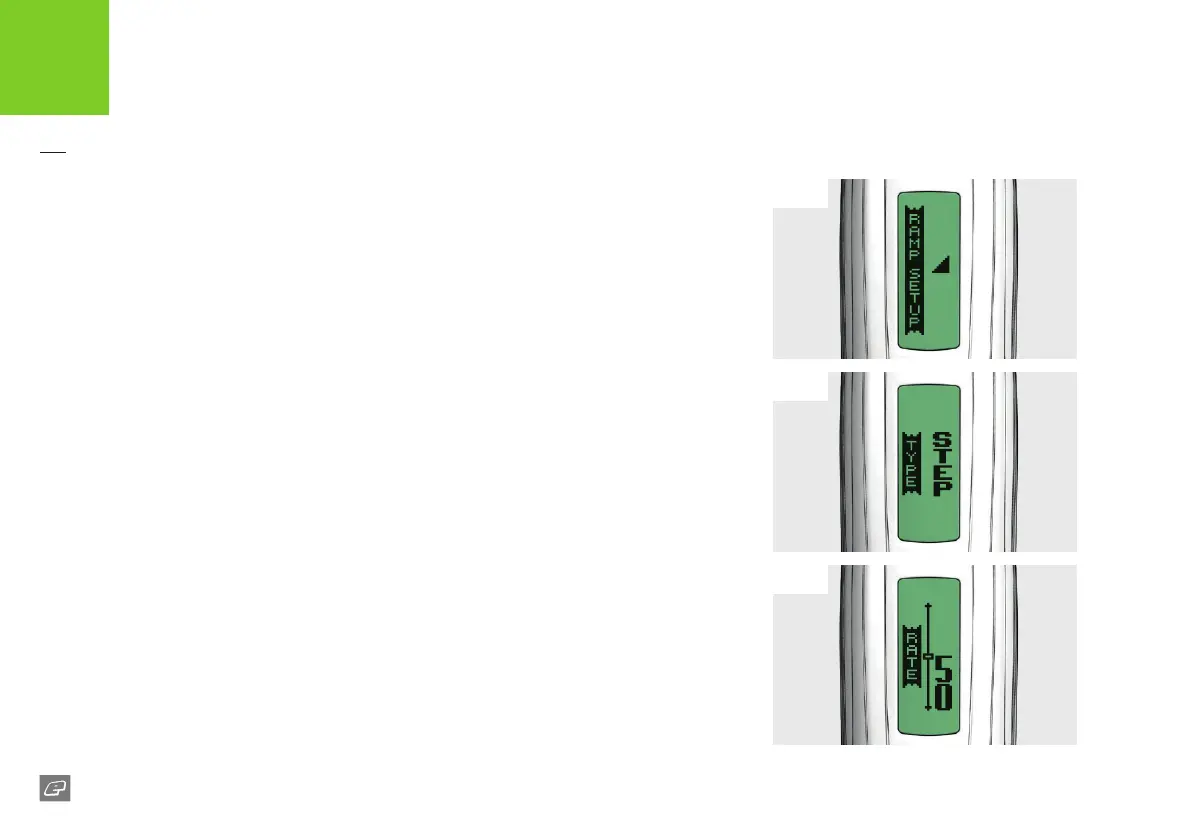

FIG-1 - RAMP SET-UP MENU
This menu is only available when ramping has been chosen from the FIRE MODE menu.
FIG-2 - TYPE PARAMETER
Select the type of ramping based on the options below:
> STEP: The CS1 will be red in semi-automatic until a number of trigger pulls (set by SEMI
SHOTS) have been made at a minimum pull rate (set by KICK IN). The CS1 will then STEP up
to the maximum rate of re (set by BS ON ROF). Ramping is maintained as long as the user
continues to pull the trigger at a required rate (set by SUSTAIN).
> LINEAR: The CS1 will be red in semi-automatic until a number of trigger pulls (set by SEMI
SHOTS) have been made at a minimum pull rate (set by KICK IN). The rate of re will then
equal the rate of trigger pulls increased by a percentage (specied by RATE) up to a maximum
rate of re (set by BS ON ROF). Ramping is maintained as long as the user continues to pull
the trigger at a required rate (set by SUSTAIN).
> CANCEL: Editing is cancelled and no changes are made to the parameter.
FIG-3 - RATE PARAMETER
Only available in LINEAR ramping mode. This sets the percentage increase in rate of re over rate
of trigger pulls.
If the RATE is 50% and the trigger is pulled at 10 bps then the ROF is 15 bps (10 + 50%).
This parameter can be set between 0 and 100% in 10% increments.
