This section provides VLAN Configuration from Web Smart PoE Switch, the screen in Figure 4-26 appears and table
4-10 describes the VLAN Setting object of Web Smart PoE Switch.

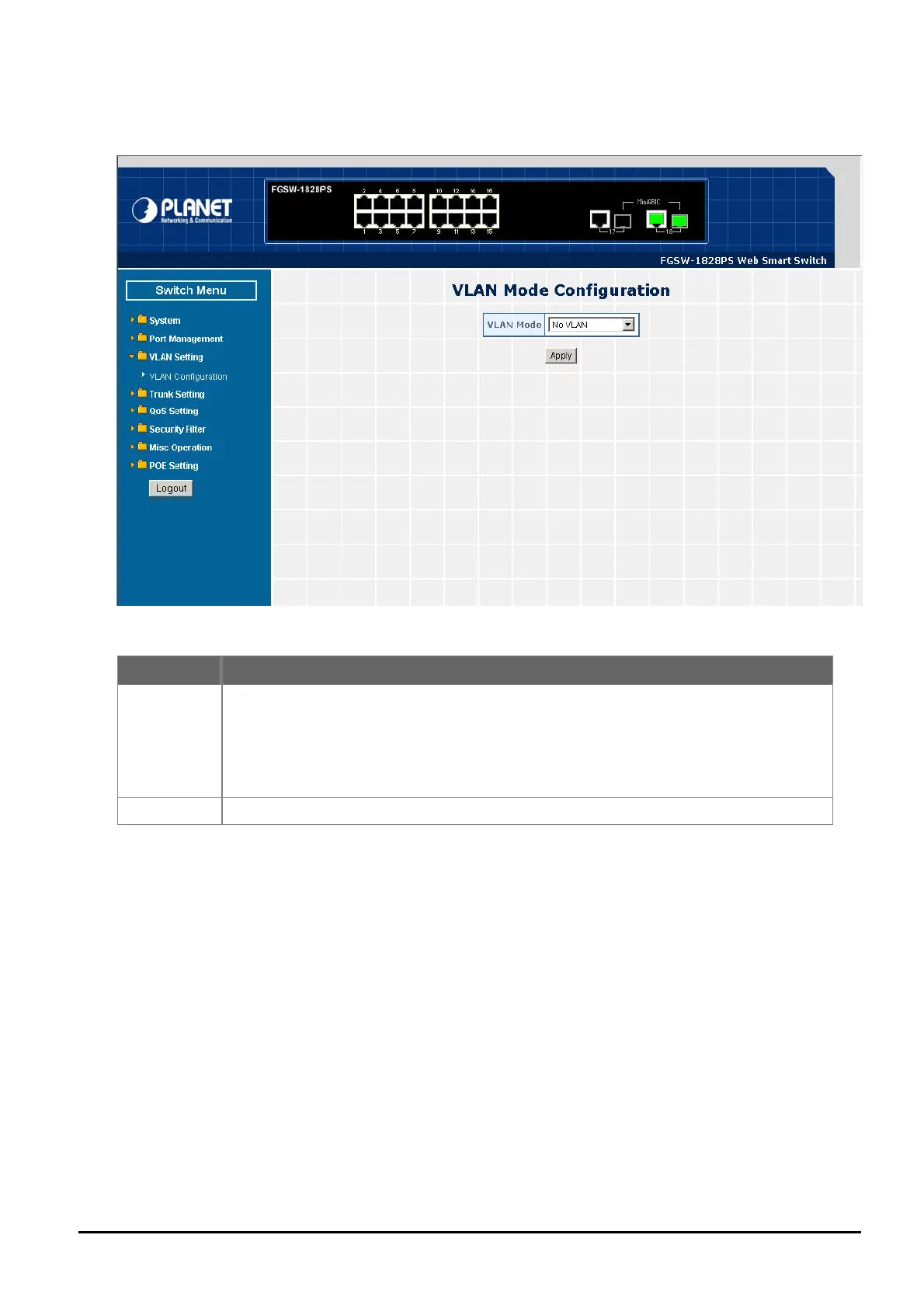

Figure 4-26 VLAN Setting Web Page Screen
Table 4-10 Descriptions of the VLAN Setting Screen Objects
Object Description
VLAN Mode
Provide different VLAN operation mode, the available options are shown as below:
No VLAN
802.1Q VLAN. Explained in section 4.4.1.
Port Based VLAN. Explained in section 4.4.2.
MTU. Explained in section 4.4.3.
Default mode is No VLAN.
Apply button
Press this button for save current configuration of Web Smart PoE Switch.
