- 36 -
4
This section introduces detail information of IEEE 802.1Q VLAN function of Web Smart PoE Switch; Choose “802.1Q
VLAN” from VLAN from the VLAN Mode and press “Apply” button to enable the 802.1Q VLAN function. The screen in
Figure 4-27 & 4-28 appears and table 4-11 description the 802.1Q VLAN objects of Web Smart PoE Switch.
.4.1 802.1Q VLAN

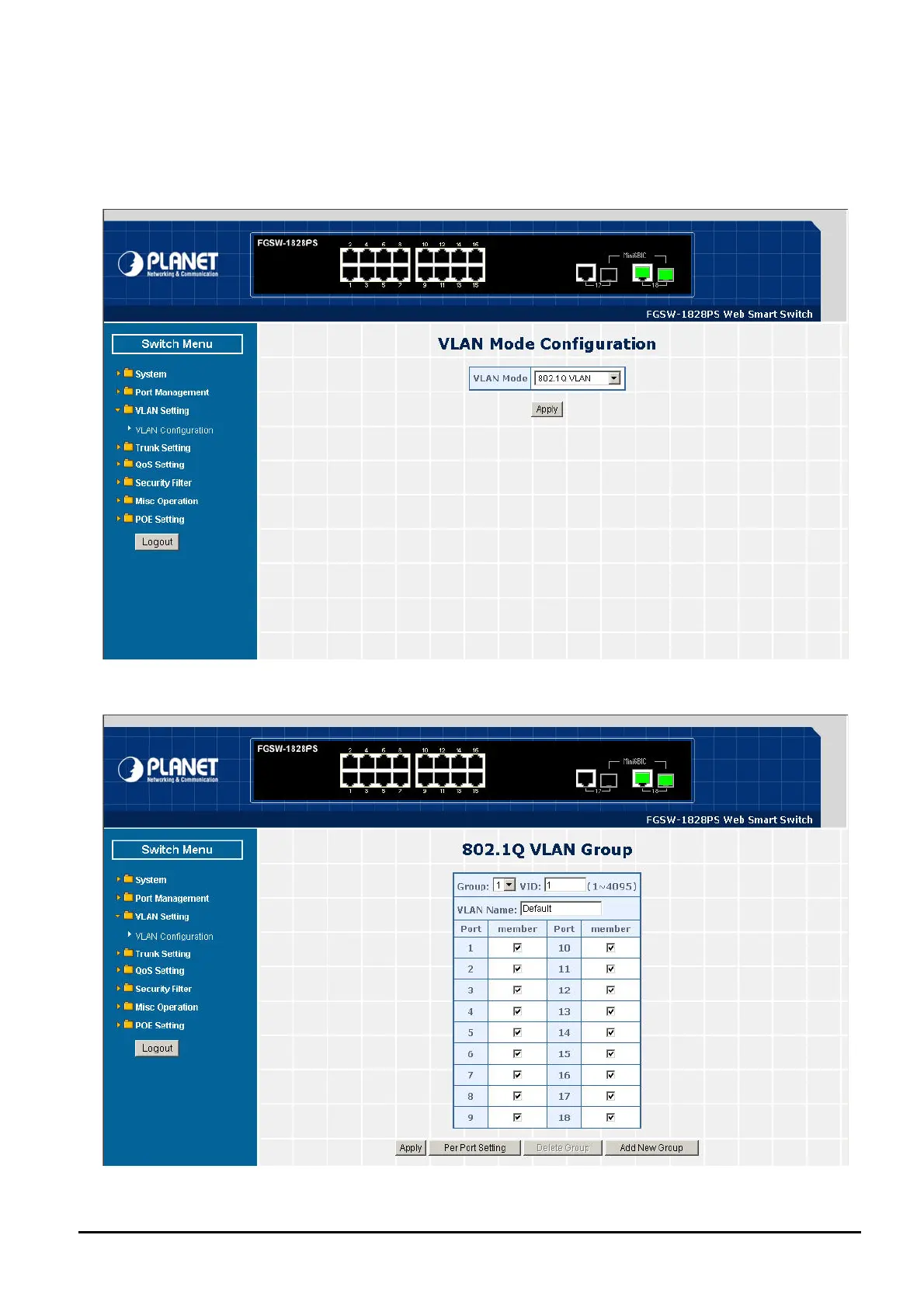

Figure 4-27 802.1Q VLAN Configuration Web Page Screen
802.1Q VLAN Configuration Web Page Screen
Figure 4-28
To Next Page
