Table 4-11 Descriptions of the 802.1Q VLAN Setting Screen Objects

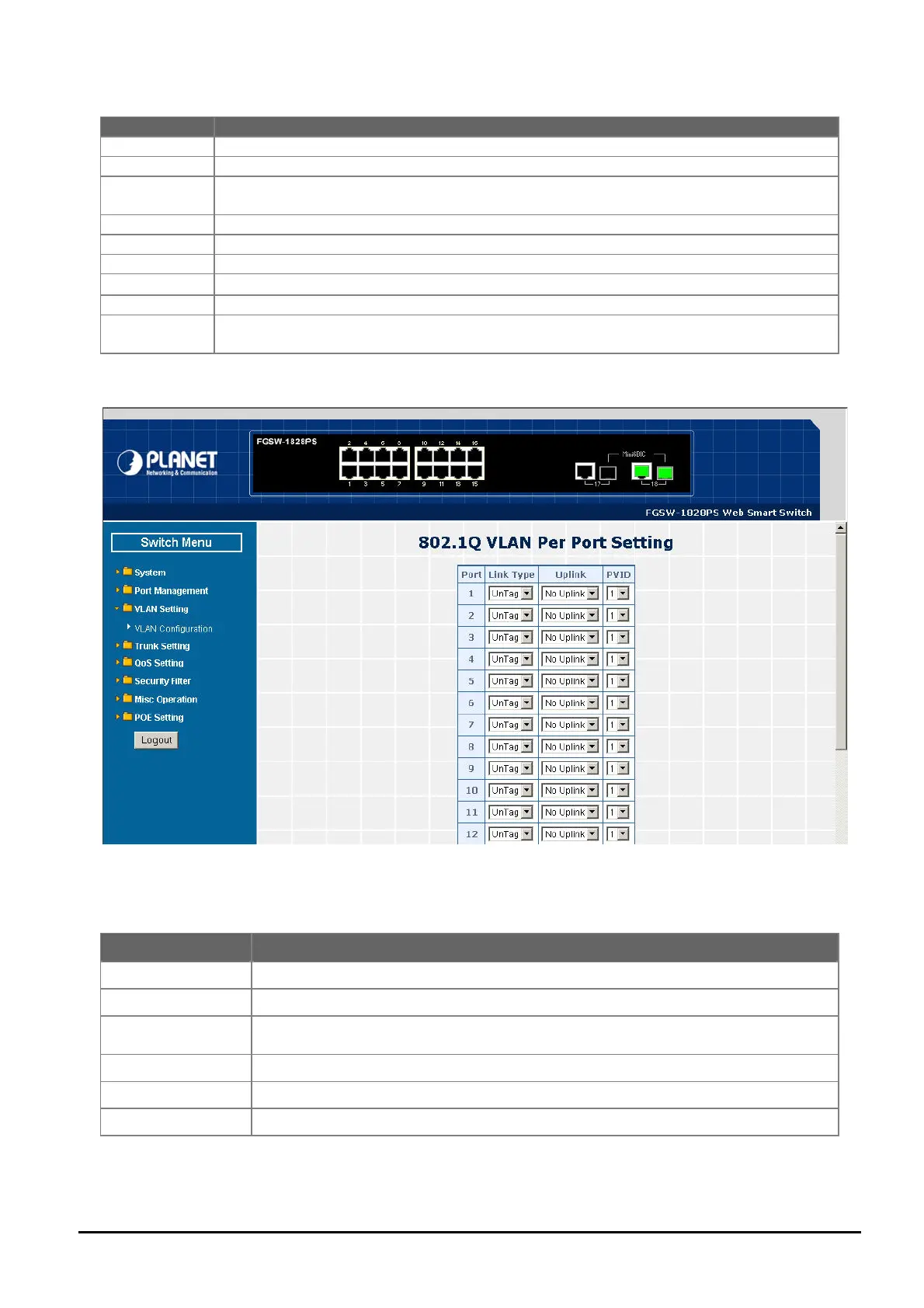

Figure 4-29 802.1Q VLAN per Port Setting Web Page Screen
This section introduces detail information of IEEE 802.1Q VLAN Per Port Setting of Web Smart PoE Switch; The table 4-12
description the 802.1Q VLAN Per Port Setting objects of Web Smart PoE Switch.
Table 4-12 Descriptions of the 802.1Q VLAN per Port Setting Screen Objects
Object Description
Group Display the existence 802.1Q VLAN groups.
VID Display different VLAN ID from multi-802.1Q VLAN groups.
VLAN Name Assign and display different VLAN name from multi-802.1Q VLAN groups. Up to maximum 8 char-
acters allow.
Port Indicate port 1 to port 16 (FNSW-1608PS), port 1 to port 18 (FGSW-1828PS).
Member Allow to click specific port as member port from different 802.1Q VLAN groups.
Apply button Press this button for save current configuration of Web Smart PoE Switch.
Per Port Setting Allow to define per port UnTag / Tag, Uplink and PVID. The screen in Figure 4-29 appears.
Delete Group Press this button for delete existence 802.1Q VLAN groups.
Add New Group Press this button for create a new 802.1Q VLAN groups. Up to maximum 32 802.1Q VLAN groups
support on Web Smart PoE Switch.
Object Description
Port
Indicate port 1 to port 16 (FNSW-1608PS), port 1 to port 18 (FGSW-1828PS).
Link Type
Define UnTag or Tag on each port of Web Smart PoE Switch. Default mode is “UnTag”.
Uplink
Define No Uplink or Uplink on each port of Web Smart PoE Switch. Default mode is “No Up-
link”.
PVID
Assign PVID on each port of Web Smart PoE Switch. Default PVID is “1”.
Apply button
Press this button for save current configuration of Web Smart PoE Switch.
VLAN Group Setting
Return to 802.1Q VLAN Group Setting screen.
