- 45 -
4.4.2 Port Based VLAN
This section introduces detail information of Port Based VLAN function of Web Smart PoE Switch; Choose “Port Based
VLAN” from VLAN from the VLAN Mode and press “Apply” button to enable the port based VLAN function. The screen in
Figure 4-39 & 4-40 appears and table 4-14 description the Port Based VLAN objects of Web Smart PoE Switch.

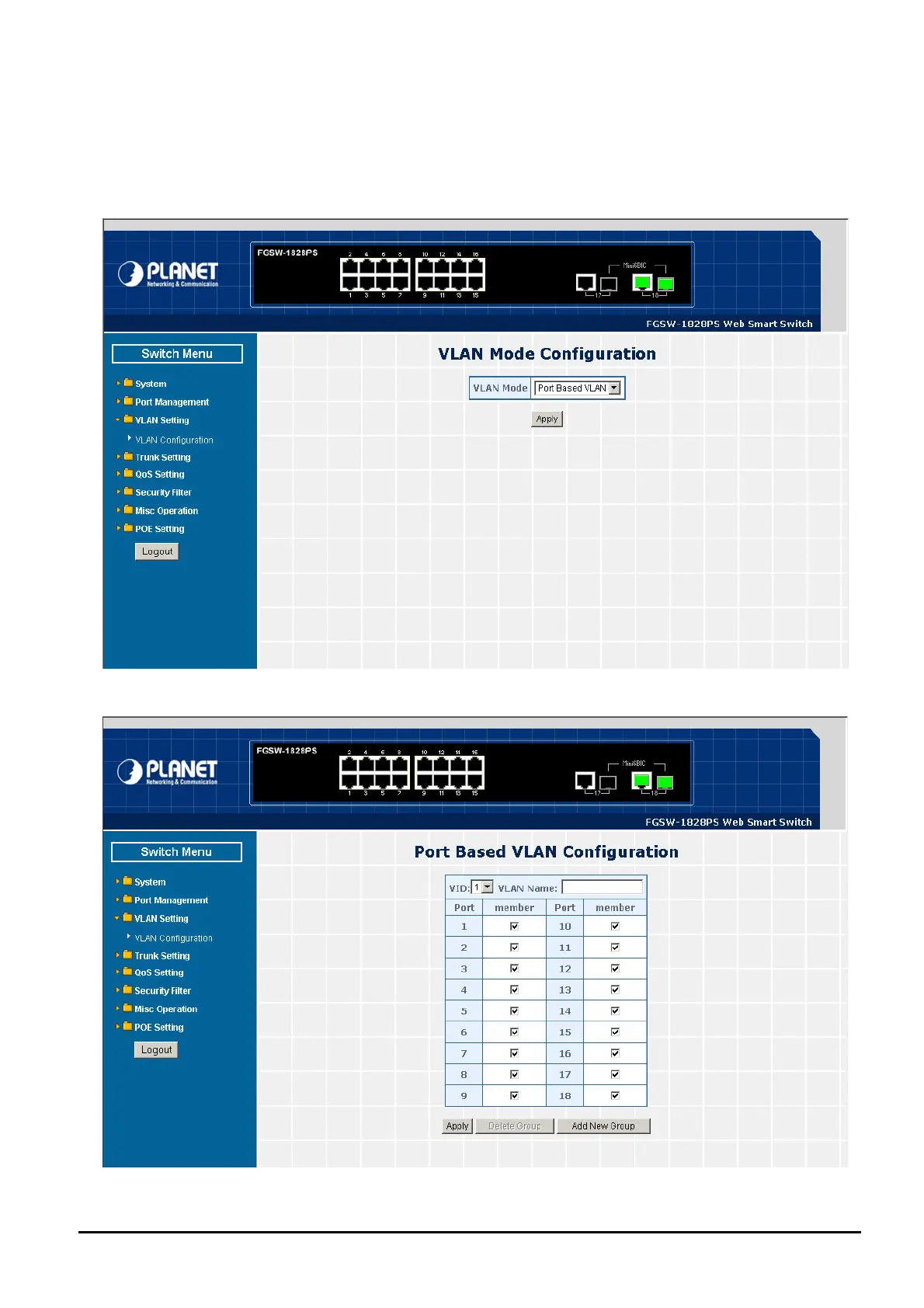

Figure 4-39 Port Based VLAN Configuration Web Page Screen
Figure 4-40 Port Based VLAN Configuration Web Page Screen
To Next Page
