- 44 -

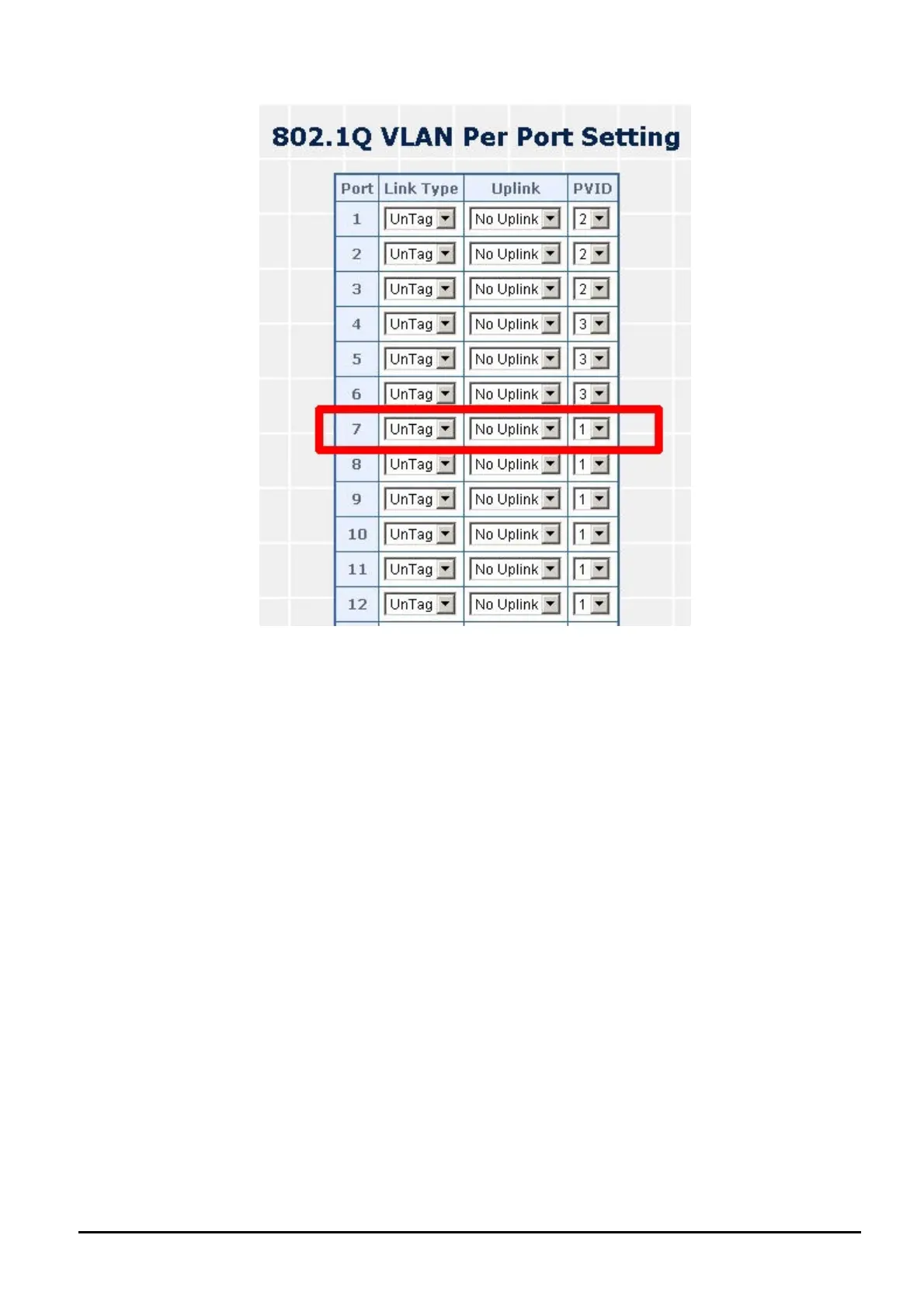

Figure 4-38 Setup Port-7 with PVID-1
rt-3 and VLAN 3 members: Port-4 to PortAlthough the VLAN 2 members: Port-1 to Po -6 also belongs to VLAN 1. But with
different PVID settings, packets form VLAN 2 or VLAN 3 is not able to access to the other VLAN.
