The STU-R is a standalone and can able to place in desktop. All the external
wiring shall be located at the rear panel. The LAN port is a 10 Base-T /
100Base-TX auto-sensing and half/full duplex Ethernet interface and complied
with IEEE 802.3 / 802.3u respectively. The console (RS-232C) interface for
configuration is menu-driven operation and can also be configured through
Ethernet interface by Telnet or Web-based operation.
Power Adpter
Wall Jack
RJ-45 Cable
PC
NB
DB-9 Cable

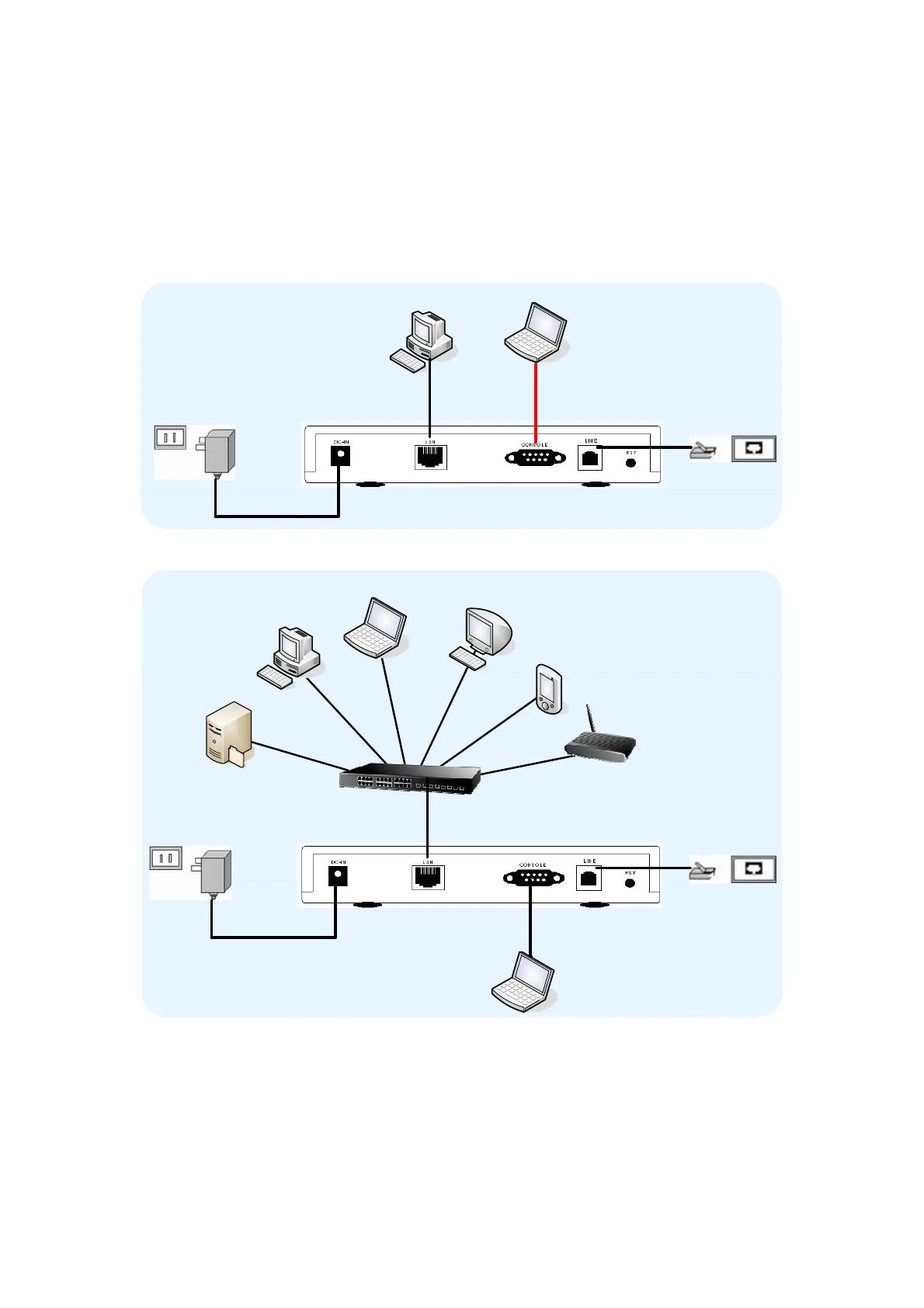

Figure 2-6 Direct Connection with PC or NB
Power Adpter
Wall Jack
Console
Cable
Switch / Hub
Server
PC
NB
MAC
Mobile Device
Wireless AP
Figure 2-7 Connection with Switch or HUB
Note: GRT-401/GRT-402 support Auto-MDI (media dependence interface) that
auto-detect MDI or MDI-cross with link partner, a standard straight wire UTP
cable (EIA568) can be deployed to connect to a PC or Ethernet devices like
hub/switches. GRT-101 supports MDI interface only.
- -
