User’s Manual of IMG-110T
-32-
Manual Add Device
This option allows you to manually set up IP search device and send search unicast packets; there are two ways to manually
add the device as shown below:
1: Add "On line Devices" under an existing IP address, click "√" in front of the desired IP address and click on ">" to add IP
address;
2: A "Device IP Address" is filled out to manually enter the IP address and click "Add" to add the IP address.
Click OK for adding a unicast packet to search equipment. If the router's port mapping is configured, it can implement search
across route. Discovery process begins from PC Port 65533, Port 65534 sends commands to the specified device, and then
Port 65533 responds to a search and send confirmation to PC Port 65534 to complete the search.

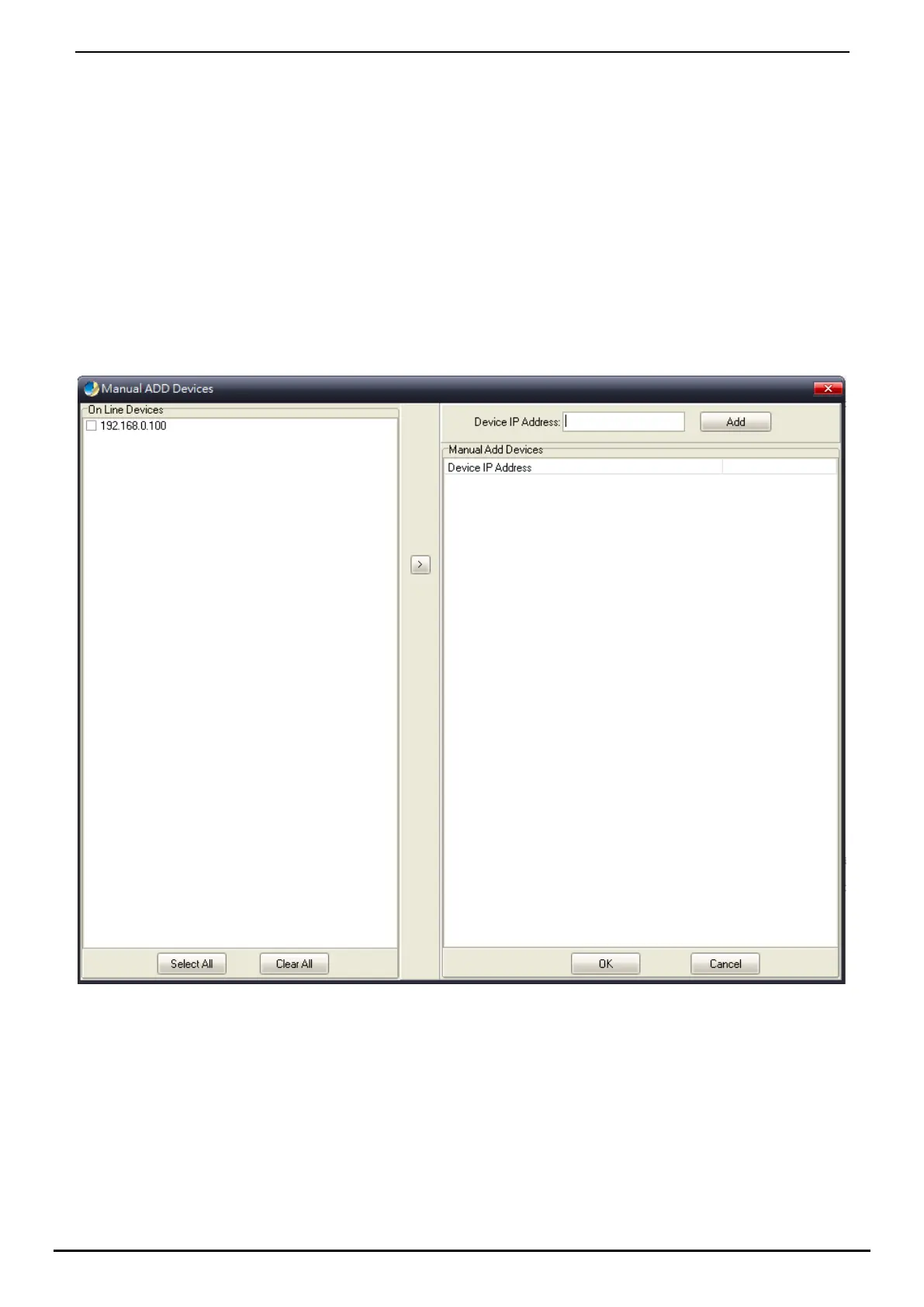

Figure 3-27: Planet Modbus Gateway Utility Tool Bar -- Manual Add Device Screen
