4. WEB MANAGEMENT
The Industrial Modbus Gateway provides Web interface for management function configuration which makes the Industrial
Modbus Gateway operate more effectively. It can be configured through the various web browser tools. A network
administrator can manage and monitor the Industrial Modbus Gateway from the local LAN. This section indicates how to
configure the Industrial Modbus Gateway to enable its management to function.
4.1 Web Main Page
After a successful login and the web main screen appears, the web main screen displays the overview information of Industrial
Modbus Gateway. The web main screen in Figure 4-1 appears.

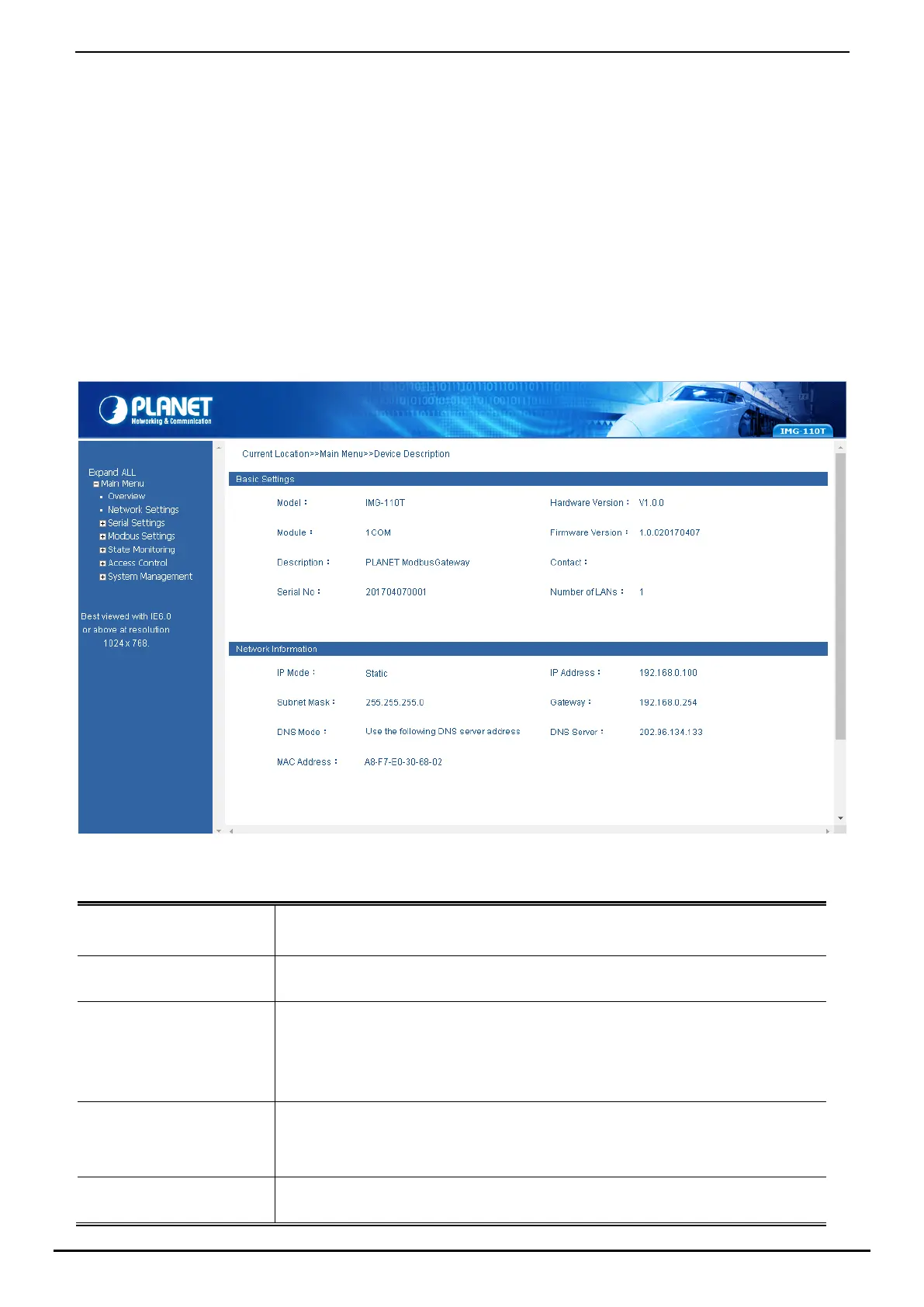

Figure 4-1: Web Main Screen
As listed on the left side of the web main screen, the configurable management functions are shown below:
Overview
Display the basic settings information and network information of Industrial Modbus
Gateway.
Network Settings- Set up the IP address of the Industrial Modbus Gateway.
Serial Settings
COM Settings: configure serial port parameters as shown below:
Basic Settings (Alias/ Baud Rate/ Data Bits/ Stop Bits/Parity Bits/ Flow Control).
Advance Settings (RTS control/DTR control).
COM Information: display serial port settings related information.
Modbus Settings
Modbus Parameters: configure Modbus parameters as shown below:
Basic Settings (Modbus Settings, Response Timeout & Interval Timeout)
configure Slave ID Map Table parameters.
State Monitoring
Display the serial port communication traffic counters in transmit and receive.
