TEMPOROMANDIBULAR JOINT EXPOSURE
36 Planmeca Proline XC Panoramic X-ray
User's manual
10 TEMPOROMANDIBULAR JOINT EXPOSURE
All exposure values given in this section are based on
Kodak Ektavision film and Kodak Ektavision screen. If
you are using a different film and screen combination
you may have to adjust these values.

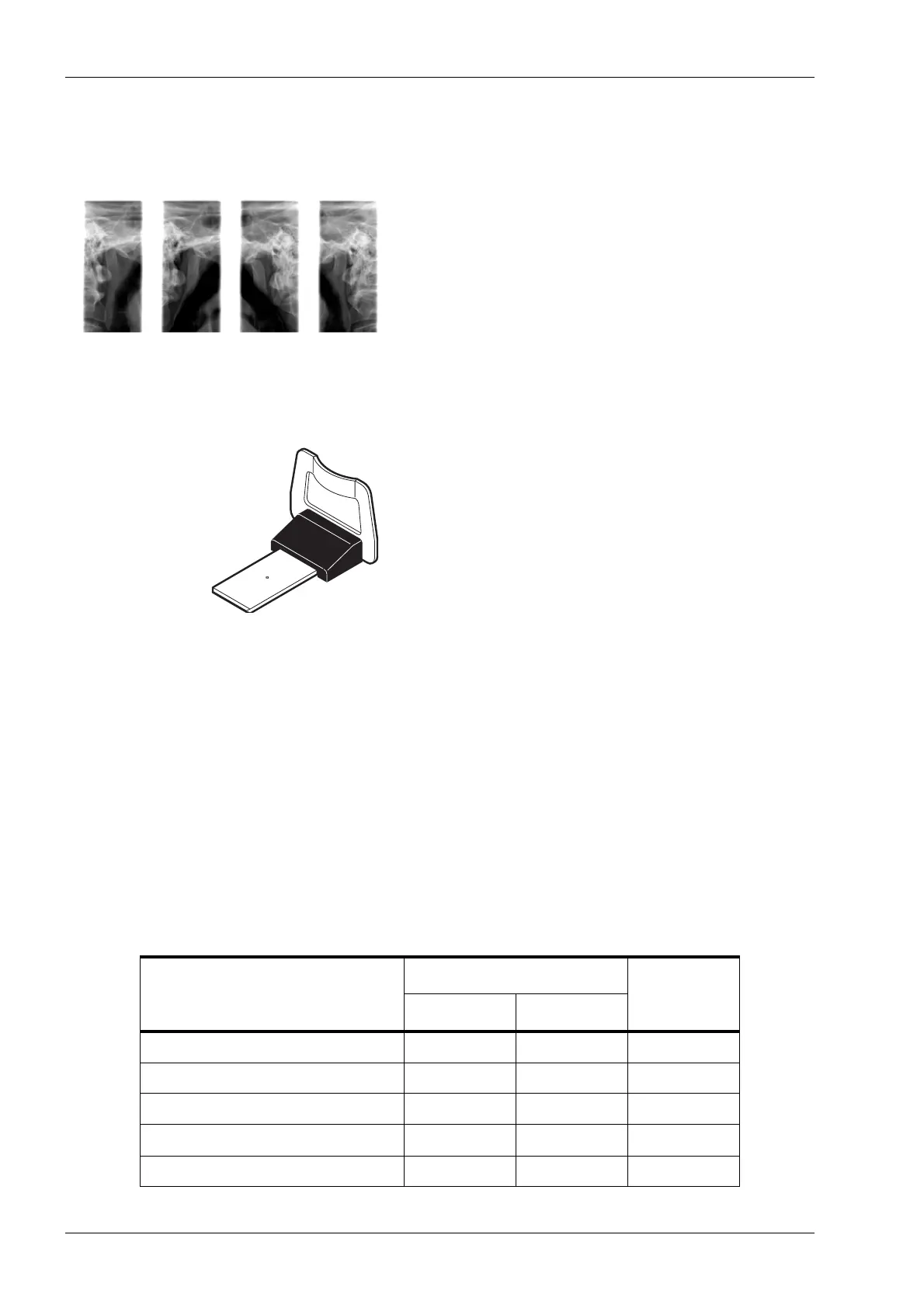

This procedure will produce open and closed views of
the left and right temporomandibular joints (TMJ) with
the Planmeca Proline XC panoramic X-ray unit.
Note that this is a double exposure and the rotating
assembly will travel through two exposure cycles.
Use the chin support for this exposure.
Select the TMJ exposure program on the Select
program type display, see section “7.2 Selecting
temporomandibular joint (TMJ) exposure program” on
page 18.
Select the correct exposure values for the patient
being X-rayed according to the values in the following
table. Note that the kV value for a TMJ exposure is
4kV higher than the corresponding panoramic
exposure.
10.1 First exposure - jaw closed
Select the correct exposure values for the patient
being X-rayed according to the values in the following
table.
Note that there are two sets of kV values. One set for
the closed jaw and a second set for the open jaw. If
you are using a different film screen combination you
may have to adjust the exposure values.
TEMPOROMANDIBULAR JOINT EXPOSURE VALUES
Based on Kodak Ektavision film and Kodak Ektavision screen
PAT IENT
kV VALUE
mA VALUE
Jaw closed Jaw open
Child up to 6 years 64 62 4
Child 7 - 12 years 66 64 5
Adult female or small male 70 68 6
Adult male 74 72 8
Large adult male 78 76 10
2431
Closed
view
Open views
Closed
view
R
L
Chin support
