PRE-INSTALLATION INFORMATION
6 Planmeca ProOne
Installation Manual

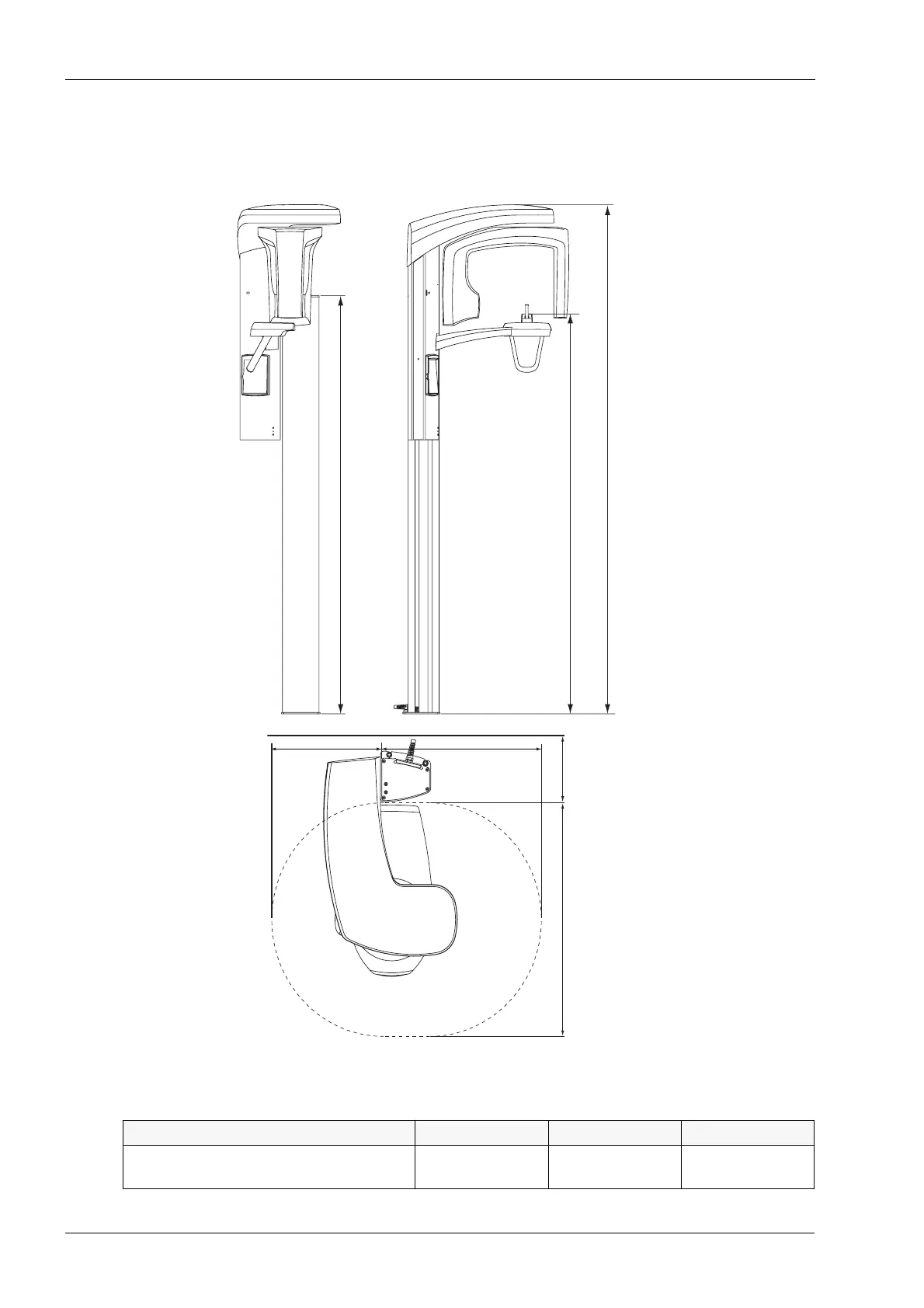

2.5 Dimensions for X-ray unit
The numbers given below are nominal, physical measurements of the X-ray unit.
The minimum operational space requirements are given in the table below the figure.
Minimum operational space requirements
Width Depth Height
Planmeca ProOne X-ray unit 1300 mm
51 in.
1300 mm
51 in.
2250 mm
89 in.
2230 mm
87.8 in.
1751.5 mm
69 in.
1832 mm
72.1 in.
800 mm
230 mm
31.5 in.
9.1 in.
571mm
394 mm
22.5 in.
15.5 in.
Printed copies of this document are considered uncontrolled.
7535.13.Rev001 08.07.2018
