3 PRE-INSTALLATION REQUIREMENTS
10 Planmeca ProOne Installation Manual
3.8.2 Minimum required space

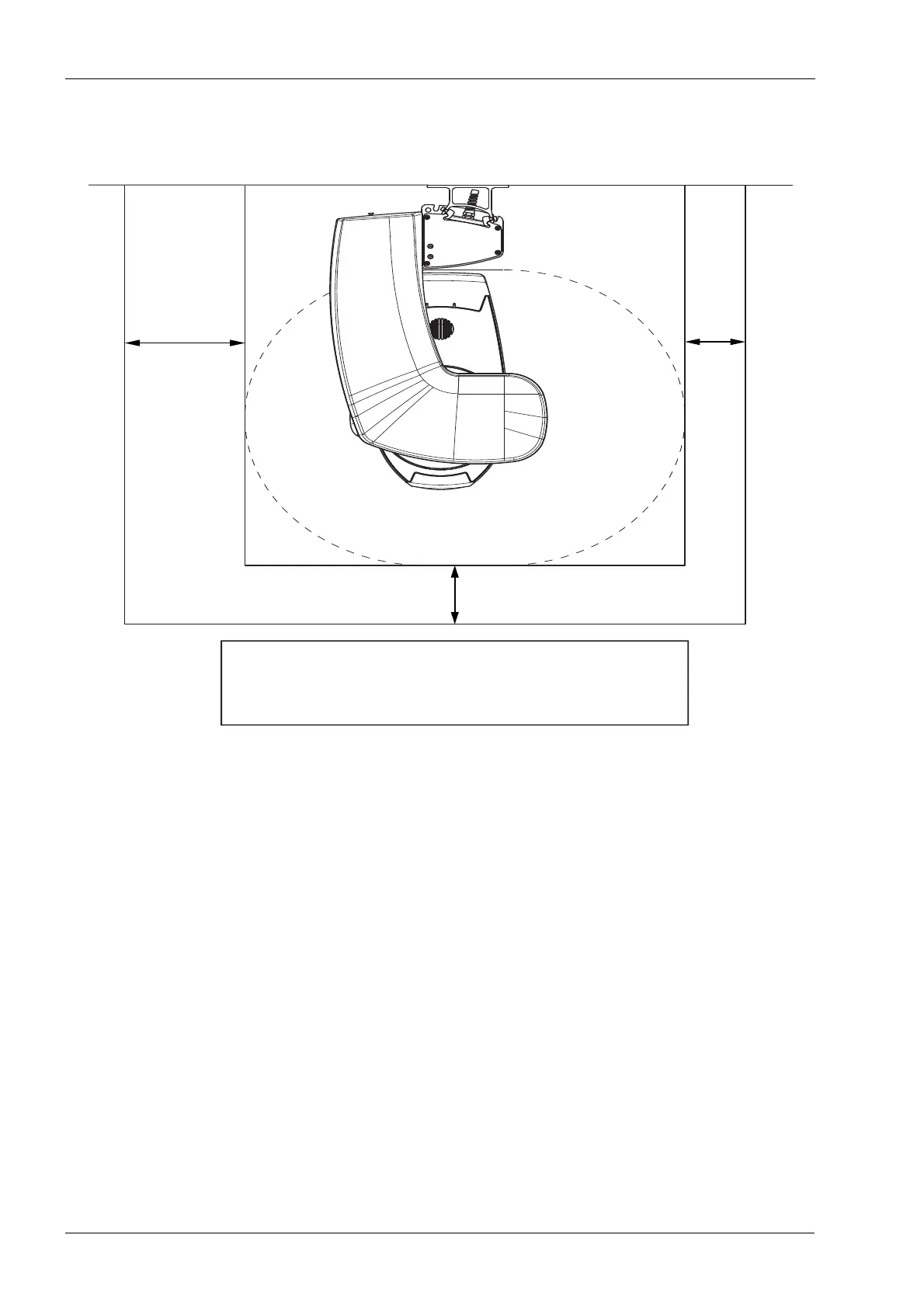

The following figure shows the recommended practical operational space requirements for
the Planmeca ProOne X-ray unit.
NOTE
The distances marked are distance added to the nominal installation and movement space
requirements marked on the previous page.
+400 mm
+15.7”
+300 mm
+11.8”
+100 mm
+3.9”
* Distance from wall (depth) includes additional
+ 10 mm (0.4 in.) extension plate measured
in nominal physical measurements
