Scope of delivery
• Wall bracket
• Knurled screw (2x)
• Spacer (2x)
Tools required
• Allen key size SW 2
• Allen key size SW 2.5
• Small slotted screwdriver
Installing unit on wall bracket
NOTE
The load rating of the wall and the fastening material must be suitable for a
weight of approx. 5 kg (device + wall bracket).

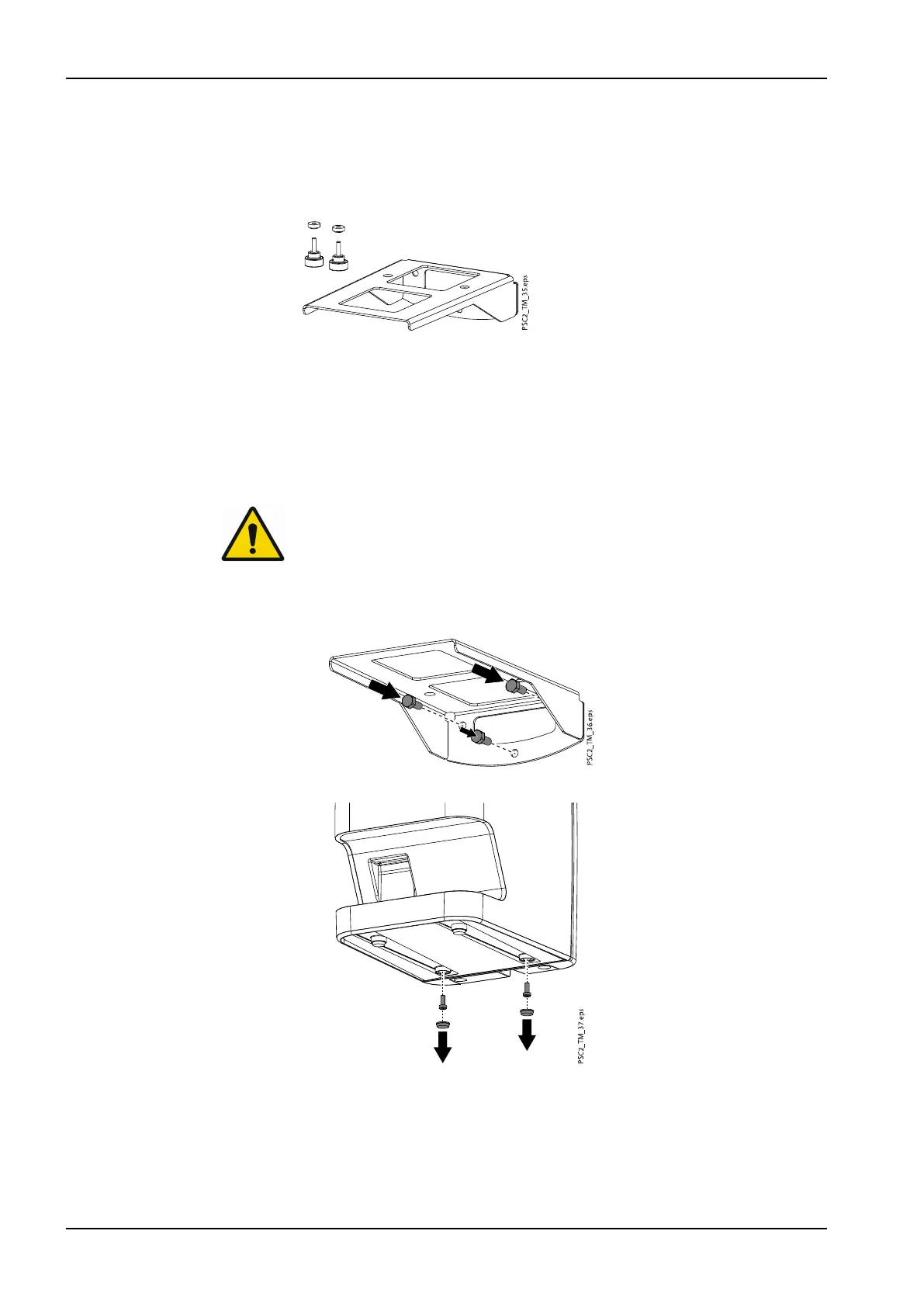

1. Place the wall mounting bracket in place horizontally and secure using
appropriate materials.
2. Remove rear rubber feet and the screws under them.
3 Assembly
22 Planmeca ProScanner 2.0 User's manual
