PLANMECA PROX INTRAORAL X-RAY UNIT - MAIN PARTS
User’s Manual
6 PLANMECA PROX INTRAORAL X-RAY UNIT
- MAIN PARTS

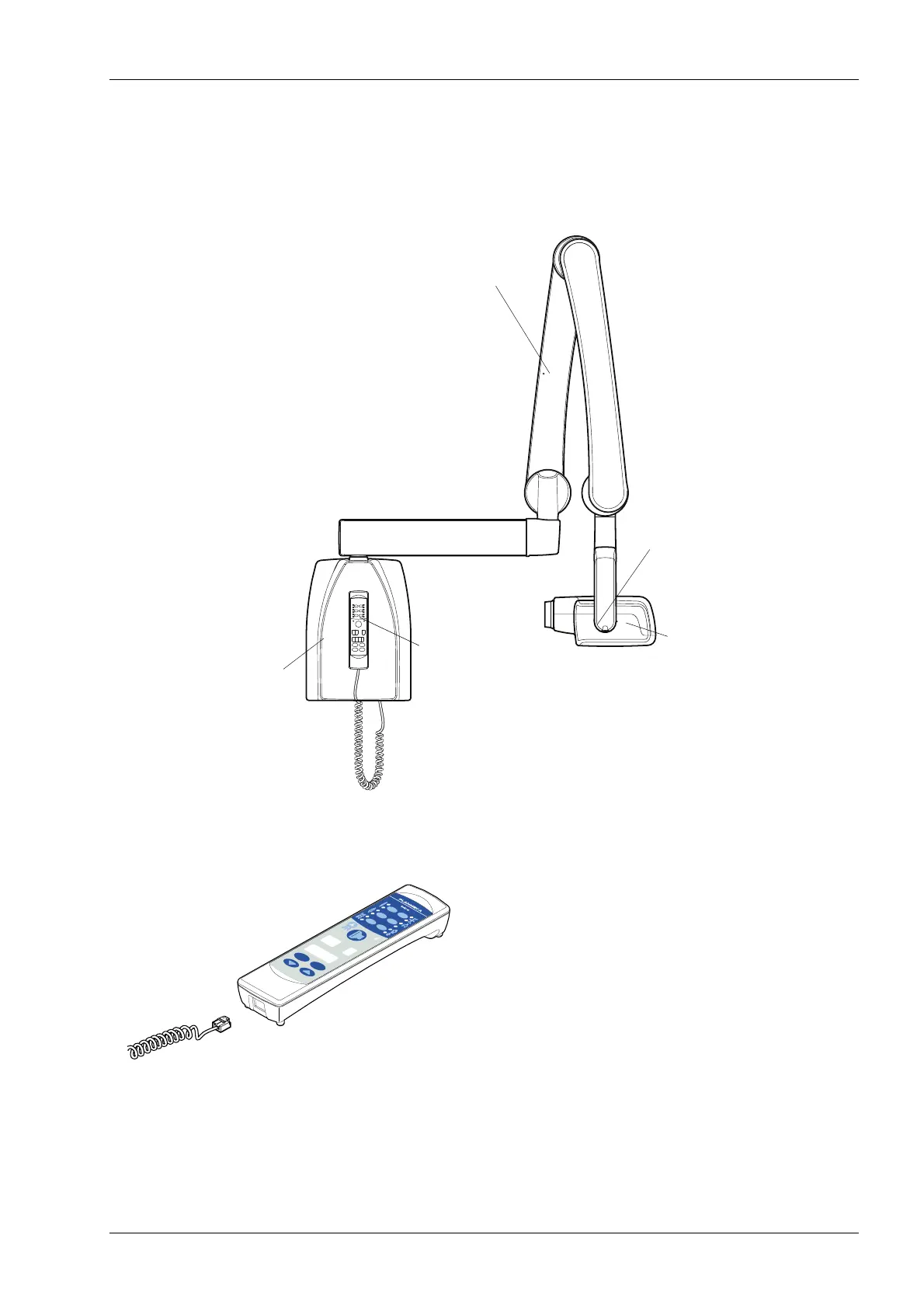

6.1 General view of the X-ray
6.2 Control panel
One end of the control panel cable is connected to the
terminal at the underside of the generator box, and the
other end to the control panel.
CAUTION Do not connect any other equipment to the
control panel’s terminal.
Prox_main.eps
Support arm
Generator
Scale for cone angle
Control panel
Tube head
box
READY
PRET
mA
kV
s
BW
SELECT
MODE

Planmeca ProX Specifications

General

Type	Intraoral X-ray
Tube current	7 mA
Imaging Technology	Digital
Focal spot	0.4 mm
X-ray generator	High-frequency
Power Requirements	100–240 V AC, 50/60 Hz
Tube voltage	60-70 kV
