Planmeca ProX User Manual

Planmeca ProX 19
MOLAR EXPOSURE
User’s Manual

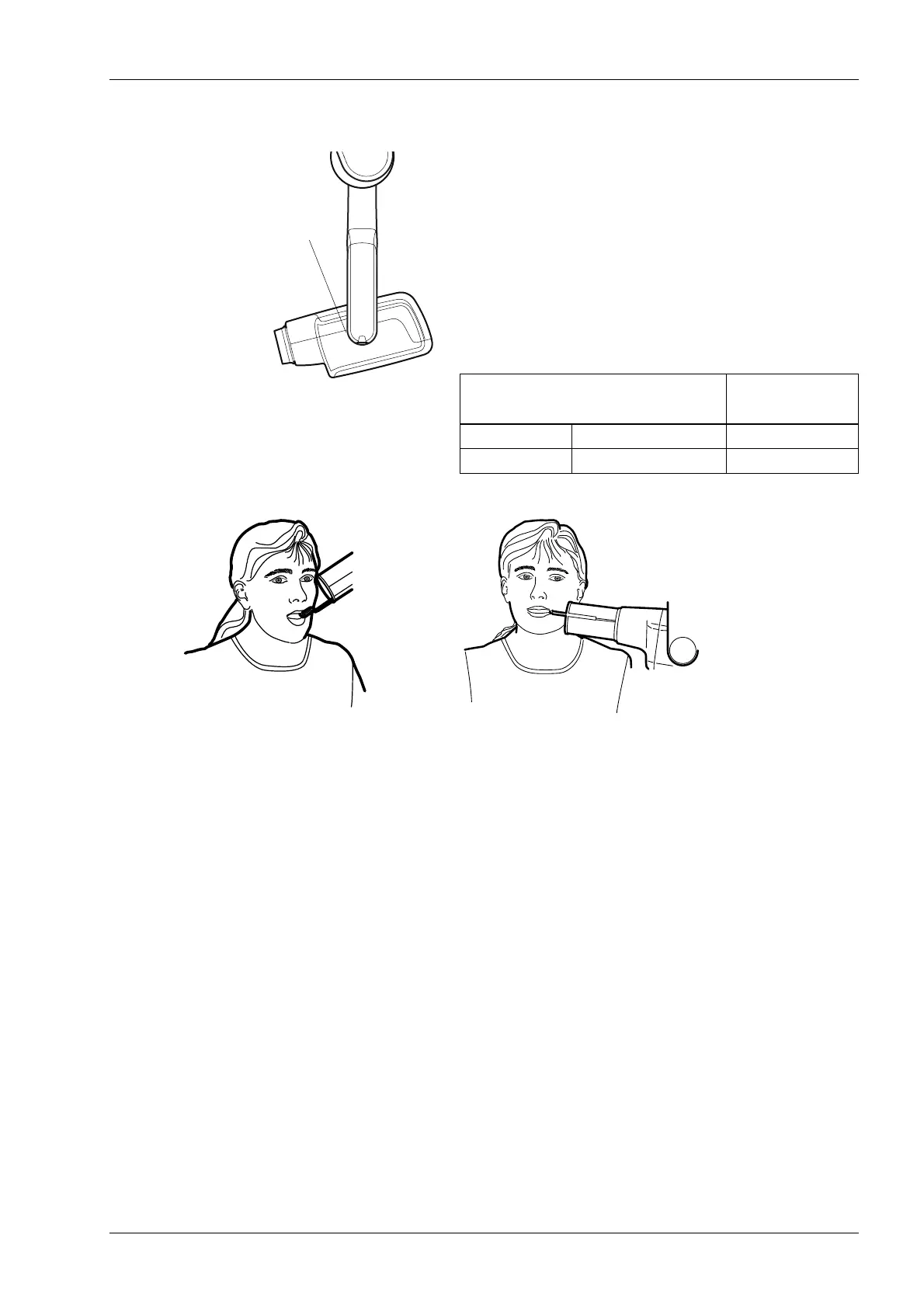

9.2.2 Positioning the cone
The angle of the cone is indicated on the scale located on
the vertical joint of the tube head.
The optional long cone can be attached into the short
cone. Refer to chapter 7.2 “Selecting the cone” on page 9.
Select the cone angle from the table below.
Position the cone according to the figures below.
TEETH
ANGLE OF
INCLINATION
Molars Maxilla +35°
Molars Mandible -5°
Prox_cone_pos.eps
Scale for the cone angle
Mandibular molarMaxillary molar

Planmeca ProX Specifications

General

Type	Intraoral X-ray
Tube current	7 mA
Imaging Technology	Digital
Focal spot	0.4 mm
X-ray generator	High-frequency
Power Requirements	100–240 V AC, 50/60 Hz
Tube voltage	60-70 kV
