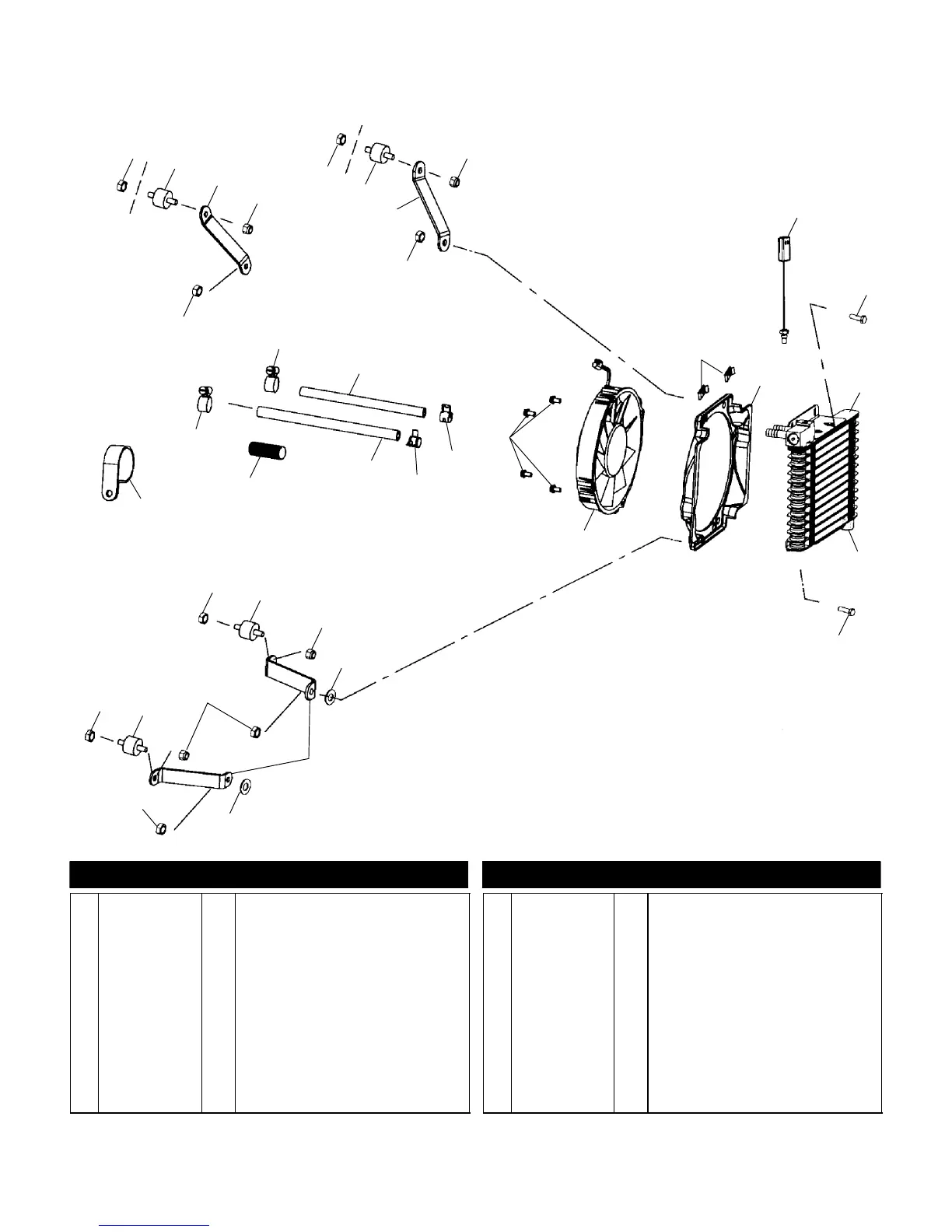

OIL COOLING (If built before 1/01/00)
MAGNUM 325 4X4 A00CD32AA and MAGNUM 325 4X4 A00CD32CA an d 325 MAGNUM 4X4 HDS A00CD32FA and 325 MAGNUM 4X4 HDS II A00CD32FB
14
2
15
3
13
9
10
17
7
11
21
16
20
6
8
4
4
4
4
4
4
4
4
2
18
15
3
19
5
22
12
5
10
14
4
1
1
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 7547069 2 Nutsert
2 3110032 2 Mount, Rubber
3 5242924-067 2 Bracket, Cooling Fan
4 7542122 10 Nut, Nylok
5 7080474 2 Clamp, Hose
6 5411813 1 Hose, Cooler Inlet
7 7670111 4 U-Clip
8 5433353 1 Shroud, Fan
9 4010274 1 Thermister
10 7515158 4 Screw
11 1240064 1 Cooler, Oil
12 7052244 1 Valve, Drain
13 5242983-067 2 Mount, Oil Cooler
14 7558301 2 Washer, Flat
15 3110050 2 Mount, Carburetor
16 2410157 1 Motor, Fan
17 7517659 4 Screw
18 7080862 1 Clamp, Hose
19 7080866 1 Clamp, Hose
20 5411768 1 Hose, Oil Cooler Outlet, Flared
21 8450086-07 1 Tubing, Convoluted
22 7080869 1 P-Clamp
2/00
